Dewalt PFM2217171 Hangermate rod hanging anchor for concrete vertical 1/4in x 1-1/4in 1/4 rod 100/box

Product Description

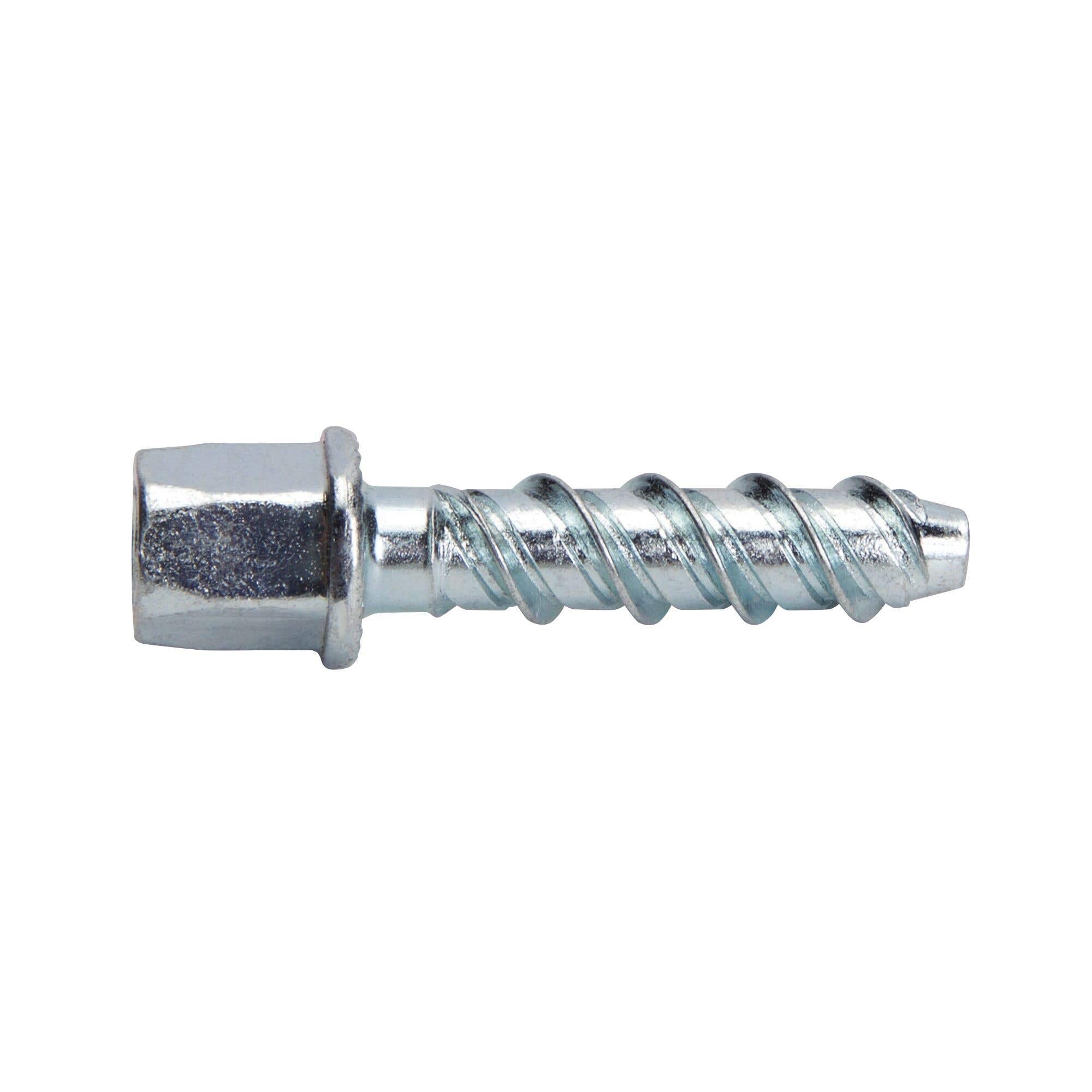

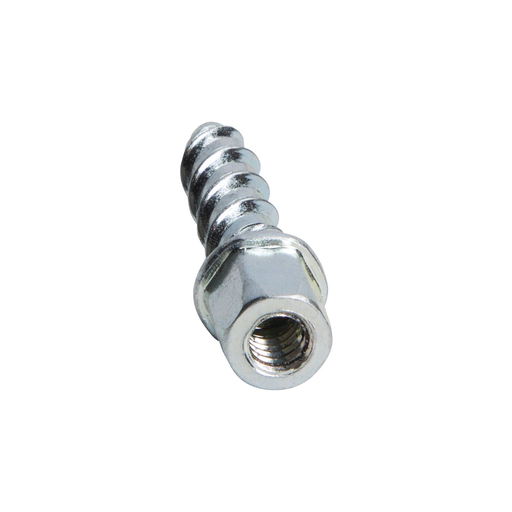

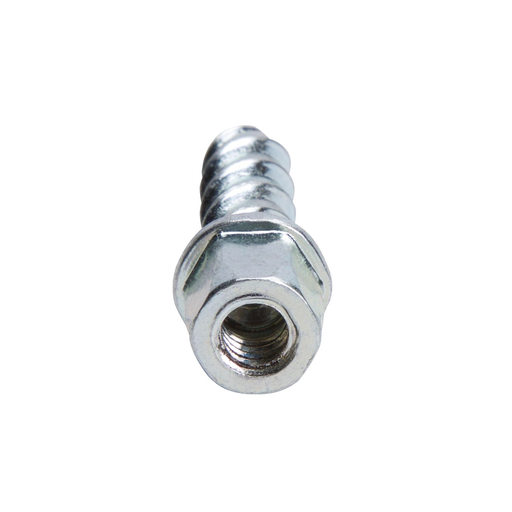

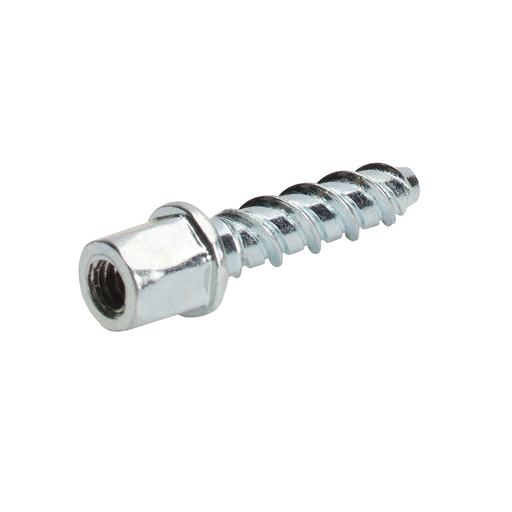

The DEWALT PFM2217171 is an all-steel threaded fastening system designed for suspending steel threaded rod vertically overhead. This anchor is suitable for pipe hanging, fire protection, electrical conduit, and cable-tray applications. It can be installed in concrete ceilings, beams, and columns, as well as steel purlins, bar joists, and wood frames. It supports 1/4-inch and 3/8-inch diameter steel threaded rods.

• Installs with standard 1/4-inch ANSI drill bit.
• Features a patented thread design for low installation torque.
• Designed with tough threads for tapping high-strength concrete.

Product Highlights

All-steel threaded fastening system for vertical rod suspension in concrete and other base materials.

Product Information

Standard Information

• Brand: DEWALT
• Manufacturer Part Number: PFM2217171
• Country of Origin: Taiwan

Technical Specifications

• Bolt/Hole Diameter: 1/4 inch
• Category: Anchor Bolts and Studs
• Product Type: Rod Hanging Anchor
• UNSPSC Code: 31160000
• Catalog Number: PFM2217171
• Manufacturer: Powers Fasteners
• Product ID: 1582065
• Cooper Electric Part Number: 1582065
• Brand: DeWalt
• MPN: PFM2217171
• Anchor Type: Rod Hanging Anchor
• Anchor Size: 1/4 inch x 1-1/4 inch
• Material: Carbon Steel
• Fastening System: Threaded
• Installation Orientation: Vertical
• Compatible Rod Diameter: 1/4 inch
• Base Material: Concrete
• Quantity Per Box: 100
• 12-Digit UPC: 075352312514
• Product UPC: 07535231251
• Weight: 0.027 lb
• Country of Origin: China
• Unit of Measure: BX
• Unit Size: 100
• Pieces Per Unit: 100/BX
• Product Sub Brand: HangerMate
• Diameter: 1/4 inch
• Length: 1-1/4 inch
• Driver Reference: PFM1491050
• Approvals & Listing: FM Approved
• Head Style: Rod Hanger
• Finish: Zinc Plated
• Measurement Type: Inch
• Thread Length: 1-1/8 inch
• Thread Size: 1/4-20
• Head: 3/8 inch
