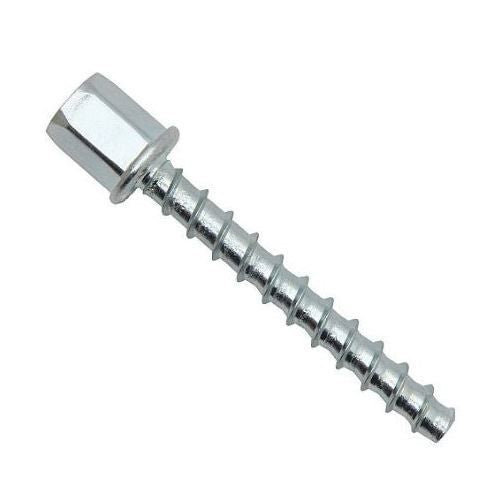

Dewalt PFM221120 HANGERMATE+ Vertical Rod Hanger Anchor 1/4 in

Product Description

The DEWALT PFM221120 Hangermate+ concrete screw is a one piece, steel anchor designed for rod hanging applications such as fire protection systems, ventilation systems, electrical conduit, pipe hanging and cable trays. It is tested and qualified for use in cracked concrete and seismic conditions. The concrete Hangermate+ requires ANSI masonry bits for installation, accepts 1/4 in, 3/8 in or 1/2 in diameter threaded rods.

• Patented thread design offers low installation torque
• Fast installation with power tools resulting in labor savings
• Tough threads for tapping high strength concrete

Product Highlights

The Hangermate+ concrete screw is designed for fire protection, ventilation, and electrical systems. It is tested for use in cracked concrete and seismic conditions.

Product Information

Standard Information

• Brand: DEWALT
• Manufacturer Part Number: PFM221120

Technical Specifications

• Head Size: 1/2 in
• Load Capacity: 1475 lb
• Material: Carbon Steel
• Overall Length: 1-5/8 in
• Tensile Strength: 2835 lb
• Thread Size: 1/4 in
• Thread Type: Internal
• Application: Concrete, Fire Sprinkler Pipes, Cable Trays, Overhead Utilities, Ventilation Systems, Suspended Ceilings and Lighting Systems
• Standard & Approvals: ANSI Specified, FM Approved, ICC ESR-3889, UL Listed
• Diameter: 1/4 in
• Finish: Zinc Plated
