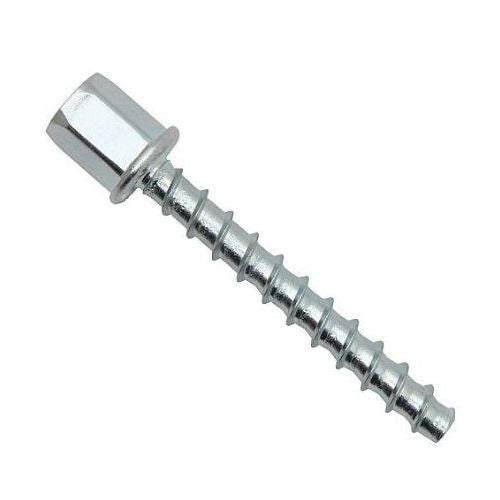

Dewalt PFM2211100 HangerMate®+ For Concrete - Internally Threaded (25 Pack)

Product Description

The DEWALT PFM2211100 Hangermate®+ concrete screw is a one piece, steel anchor designed for rod hanging applications such as fire protection systems, ventilation systems, electrical conduit, pipe hanging and cable trays. It is tested and qualified for use in cracked concrete and seismic conditions. The concrete Hangermate®+ requires ANSI masonry bits for installation and accepts 1/4", 3/8" or 1/2" diameter threaded rods.

• Installs into holes drilled with a standard ANSI drill bit
• Fast installation with power tools resulting in labor savings
• Patented thread design offers low installation torque

Product Highlights

The Hangermate®+ concrete screw is a steel anchor designed for rod hanging applications. It is tested for use in cracked concrete and seismic conditions.

Product Information

Standard Information

• Brand: DEWALT
• Manufacturer Part Number: PFM2211100
• Country of Origin: Unknown

Technical Specifications

• Catalog Number: PFM2211100
• Rod Diameter: 1/4"
• Socket Size: 3/8"
• Screw Size: 1/4" x 1-5/8"
• Mount: Vertical
• Pack Qty: 25
• Diameter: 1/4 in
• Material: Steel
• Length: 1 5/8 in
• Head Size: 3/8 in
• Load Capacity: 1475 lb
• Overall Length: 1-5/8 in
• Finish: Zinc Plated
• Tensile Strength: 2835 lb
• Thread Size: 1/4 in
• Thread Type: Internal
• Tip Type: Wedge Bolt
• Type: Vertical
• Application: Concrete, Fire Sprinkler Pipes, Cable Trays, Overhead Utilities, Ventilation Systems, Suspended Ceilings and Lighting Systems
• Standard & Approvals: ANSI Specified, FM Approved, ICC ESR-3889, UL Listed
• Thread Length: 1-5/8 in
• Thread Size (Detailed): 1/4-20
• Packaging: 25/Pack, 125/Master Pack
• Brand: DEWALT ANCHORS & FASTENERS
• Sub Brand: HangerMate Plus
• Used With: Concrete
• Height: 0.42 Inch
• Width: 0.329 in
