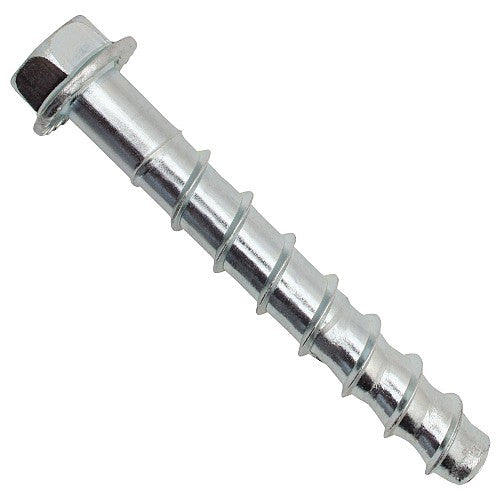

Dewalt PFM1411240 Screw-Bolt+ (Hex Head) 3/8 inches x 3 inches

Product Description

The DEWALT PFM1411240 Screw-Bolt+ anchor is a one piece, heavy duty screw anchor with a finished hex head. It is simple to install, easy to identify and fully removable. The patented thread design reduces installation torque and enhances productivity. Suitable for concrete, concrete masonry, and solid clay brick.

• Designed for use with ANSI standard tolerance drill bits
• Patented thread design offers toughened threads for tapping high strength concrete
• Low installation torque in concrete and masonry base materials

Product Highlights

The Screw-Bolt+ anchor features steel threads that tap into the hole during installation, providing keyed engagement and reduced edge and spacing distances.

Product Information

Standard Information

• Brand: DEWALT
• Manufacturer Part Number: PFM1411240

Technical Specifications

• Catalog Number: PFM1411240
• Anchor Size: 3/8" x 3"
• Thread Length: 2"
• Finish: Zinc Plated
• Diameter: 3/8
• Length: 3
• Minimum Embedment Depth: 1-1/2
• Drill Size: 3/8
• Head Type: Hex Washer
• Minimum Clearance: 1/2
• Minimum Concrete Thickness: 3
• Material: Carbon Steel
• Pack Qty: 50
