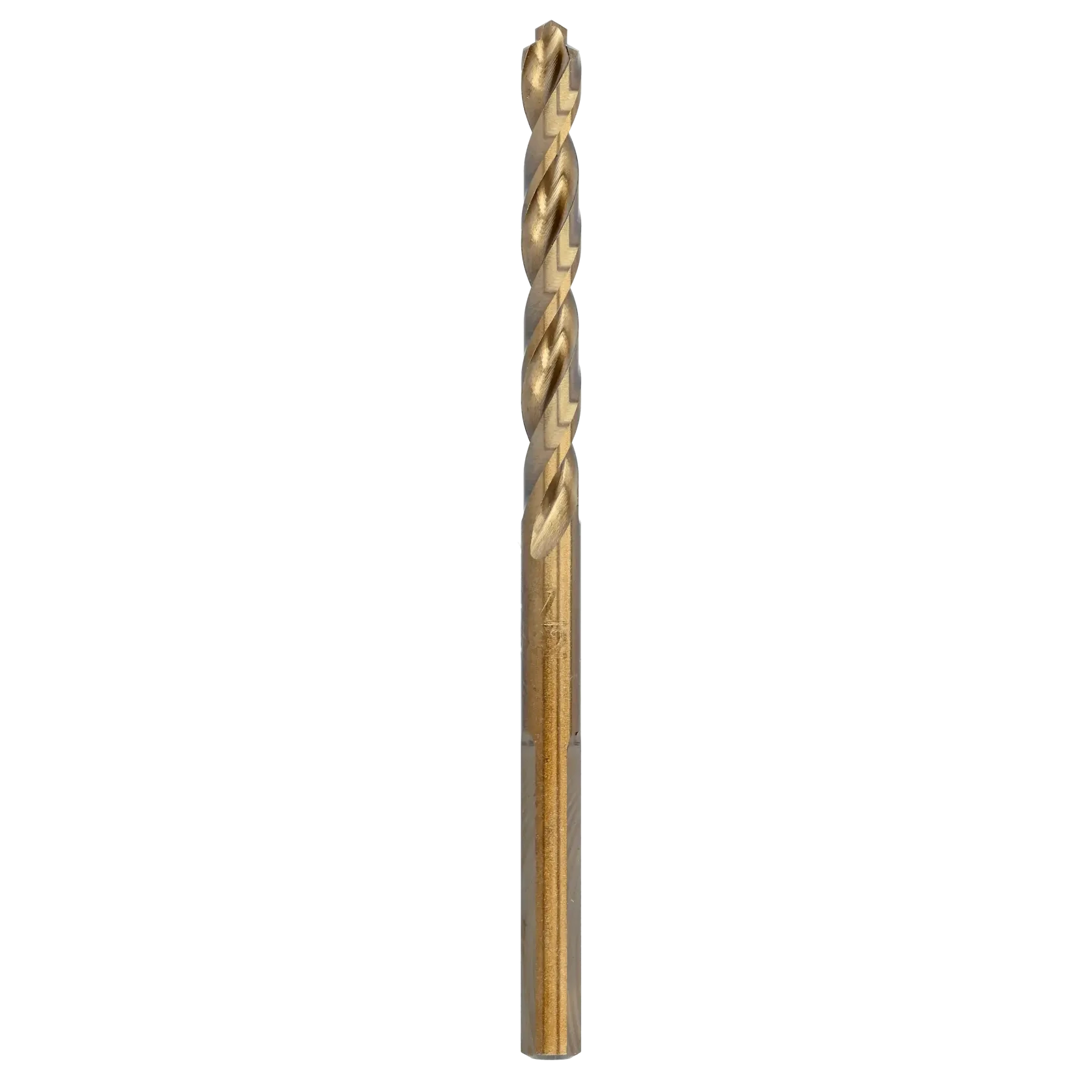

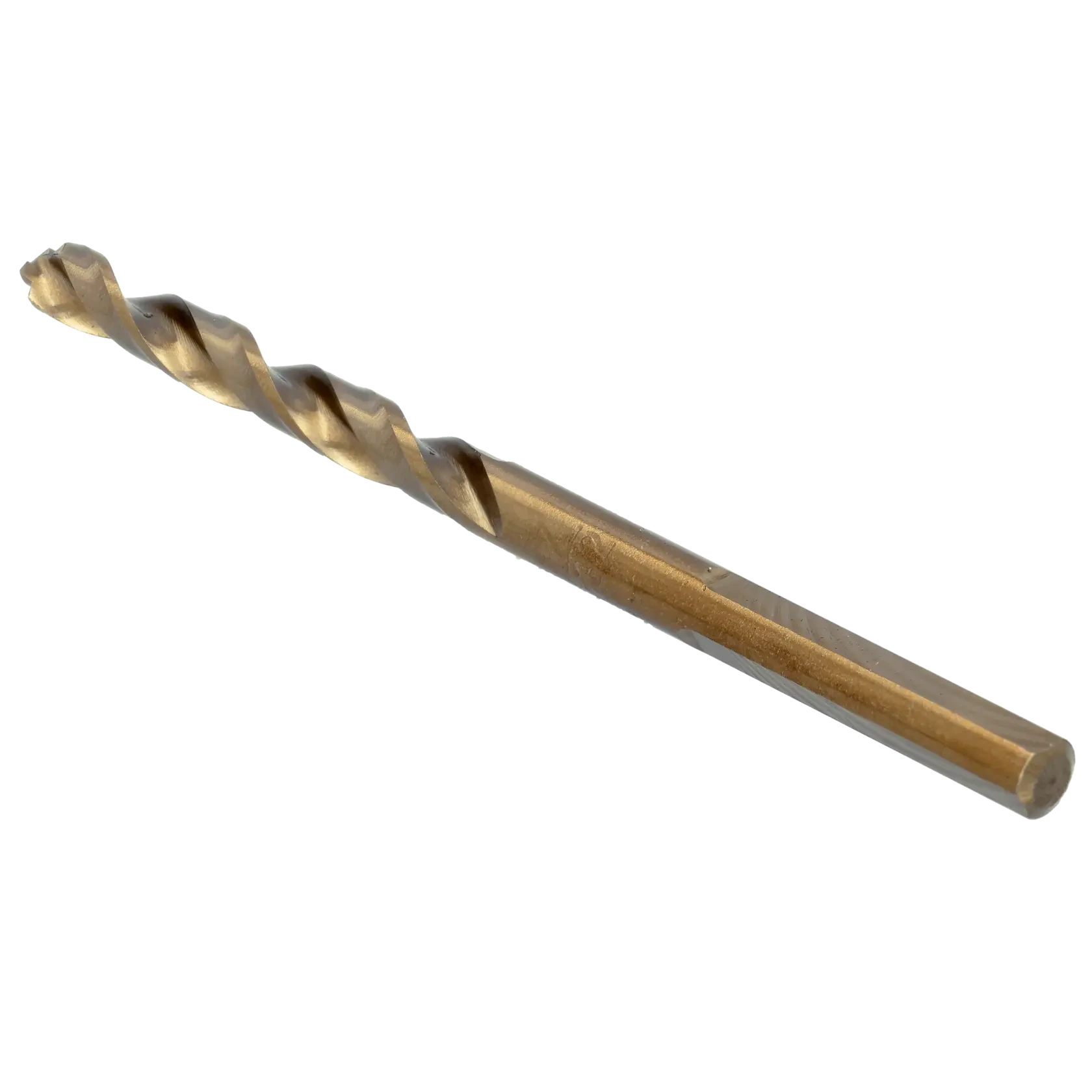

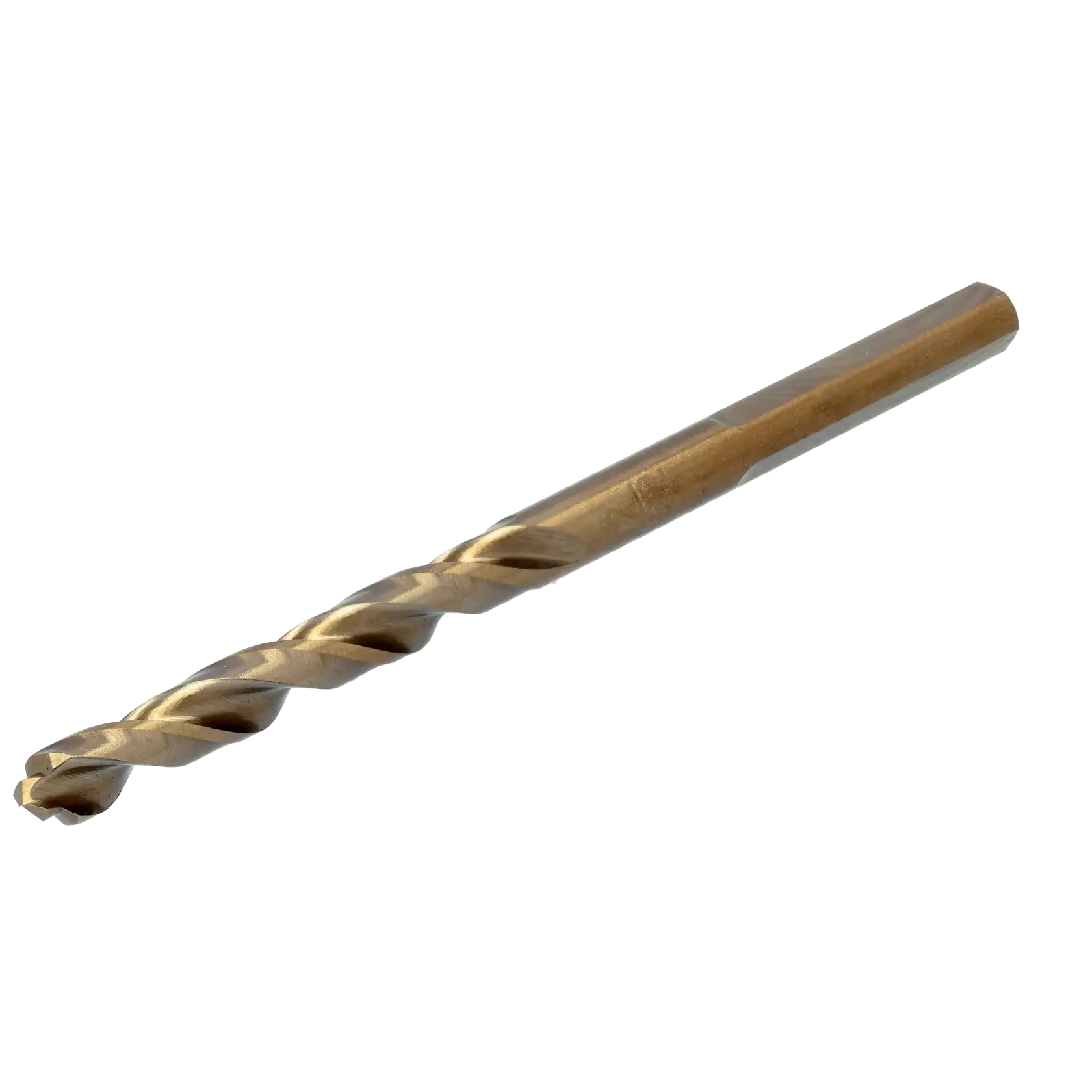

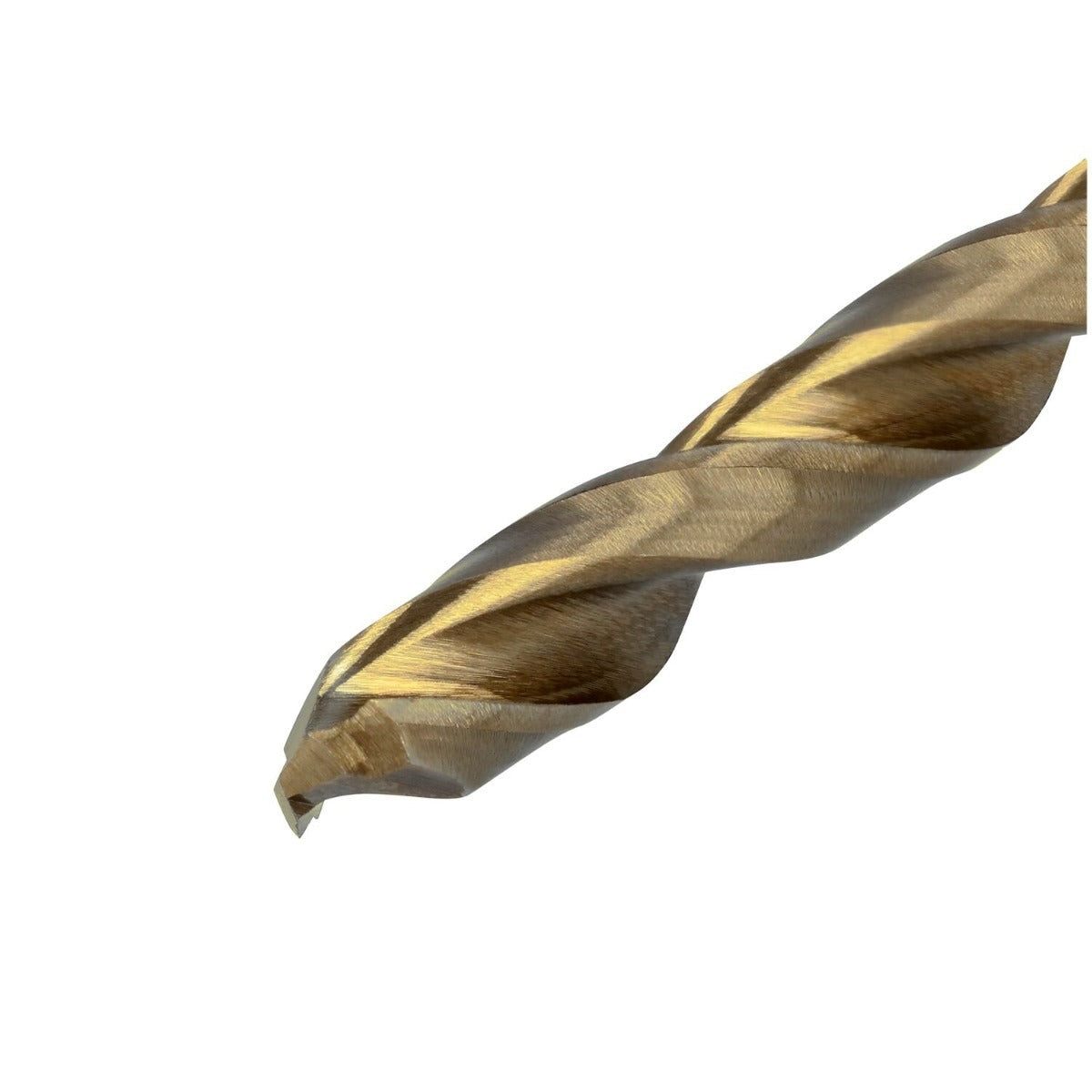

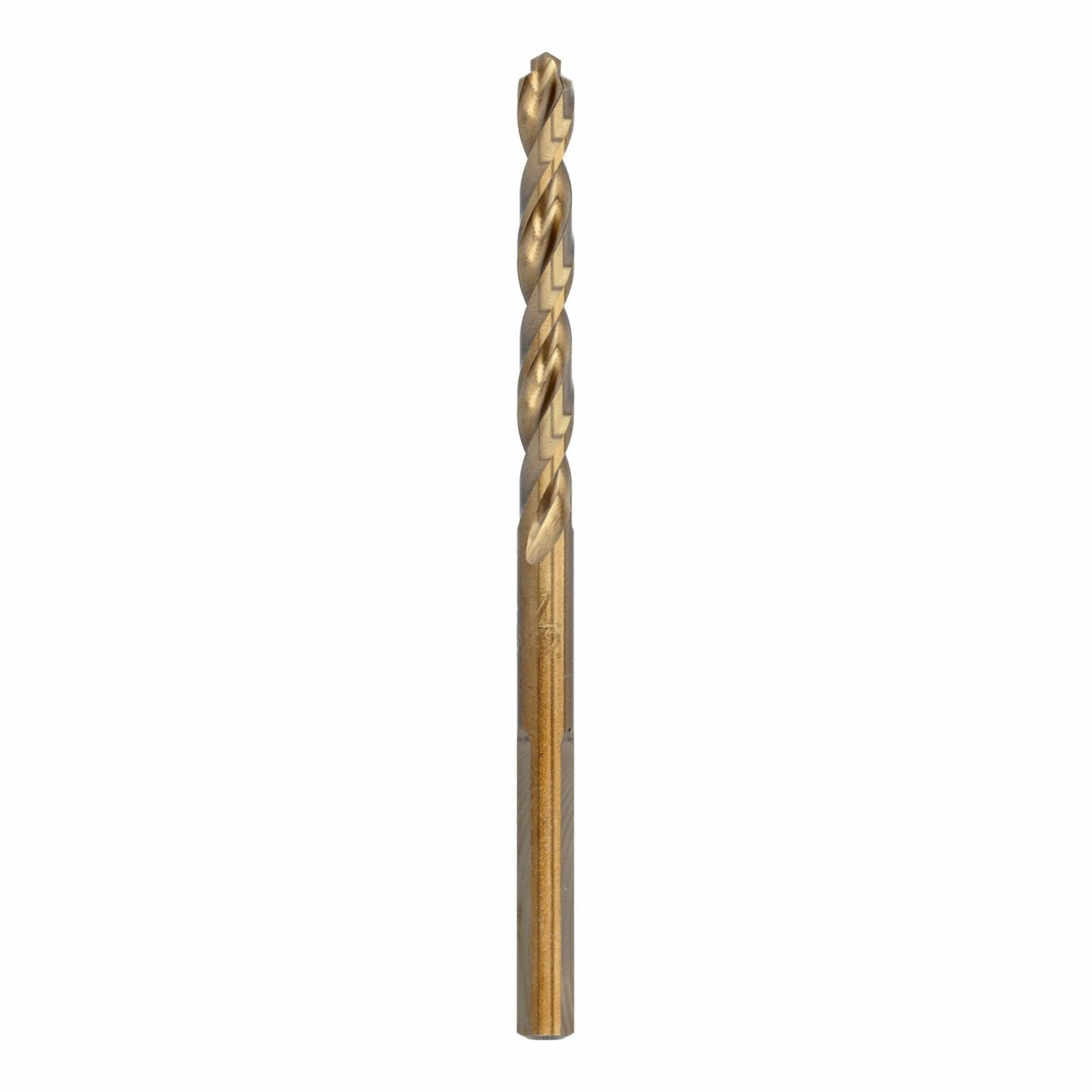

DEWALT Dewalt DWAMDCE14 Elite Series Cobalt Pilot Point Drill Bit (7/32 in, 135 deg)
DEWALT Dewalt DWAMDCE14 Elite Series Cobalt Pilot Point Drill Bit (7/32 in, 135 deg)
DEWALT Dewalt DWAMDCE14 Elite Series Cobalt Pilot Point Drill Bit (7/32 in, 135 deg)
DEWALT Dewalt DWAMDCE14 Elite Series Cobalt Pilot Point Drill Bit (7/32 in, 135 deg)
DEWALT Dewalt DWAMDCE14 Elite Series Cobalt Pilot Point Drill Bit (7/32 in, 135 deg)

Dewalt DWAMDCE14 Elite Series Cobalt Pilot Point Drill Bit (7/32 in, 135 deg)

DEWALT
Brand: DEWALT
SKU: DWAMDCE14
Availability: In Stock

Ships same day if ordered by 12 pm

$14.99
$14.99
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The DeWalt DWAMDCE14 is a 7/32 in Elite Series cobalt alloy steel pilot point drill bit intended for jobber-length general purpose drilling in stainless steel and other hard metals. The advanced pilot point tip starts on contact to reduce walking, and the 3-flats shank helps prevent spin-out in the chuck. The bit features two-flute spiral geometry, a 135 deg point angle, and a black oxide finish for metalworking applications.

  • Cobalt alloy steel construction for drilling stainless steel and hard metals
  • Advanced pilot point tip starts on contact to minimize walking
  • 3-flats straight shank to reduce spin-out in the chuck

Product Highlights

7/32 in cobalt pilot point, jobber length, 135 deg point angle, 3-flats shank, two-flute spiral; suitable for stainless and hardened steels; up to 2X longer life vs Milwaukee (select sizes).

Product Information

Standard Information

  • Brand: DEWALT
  • Manufacturer Part Number: DWAMDCE14
  • Country of Origin: Germany
Technical Specifications
Brand
DeWalt
Manufacturer Part Number
DWAMDCE14
Series
Elite Series
Product Type
Drill bit
Piece Count
1
Size
7/32 in
Size Decimal Equivalent (in)
0.2188
Tip Type
Advanced pilot point (starts on contact)
Point Angle
135 deg
Material
Cobalt alloy steel
Finish/Coating
Black Oxide
Shank Type
Straight with three flats
Shank Diameter
7/32 in
Length Class
Jobber length
Overall Length
96 mm
Flute Length
50.5 mm
Number of Flutes
2
Flute Type
Spiral
Helix Angle
31 deg
Depth-to-Diameter Ratio
9xD
Cutting Direction
Right hand
Spiral Direction
Right hand
Coolant Fed
Non-coolant through
Primary Material Application
Stainless Steel (ISO code M)
Secondary Material Application
Hardened Steel (ISO code H)
Performance Claim
Up to 2X longer life vs Milwaukee (select sizes)
Package Contents
(1) DWAMDCE14
Measurement System
Fractional Inch
Standards
DIN 1414; DIN ISO 1101; DIN ISO 2768-mH
Country of Origin
Germany (subject to change)
Tip Start Feature
Starts on contact
