Dewalt DWA1181 Drill Bit Set 21-Piece 135 Degree Split Point

Product Description

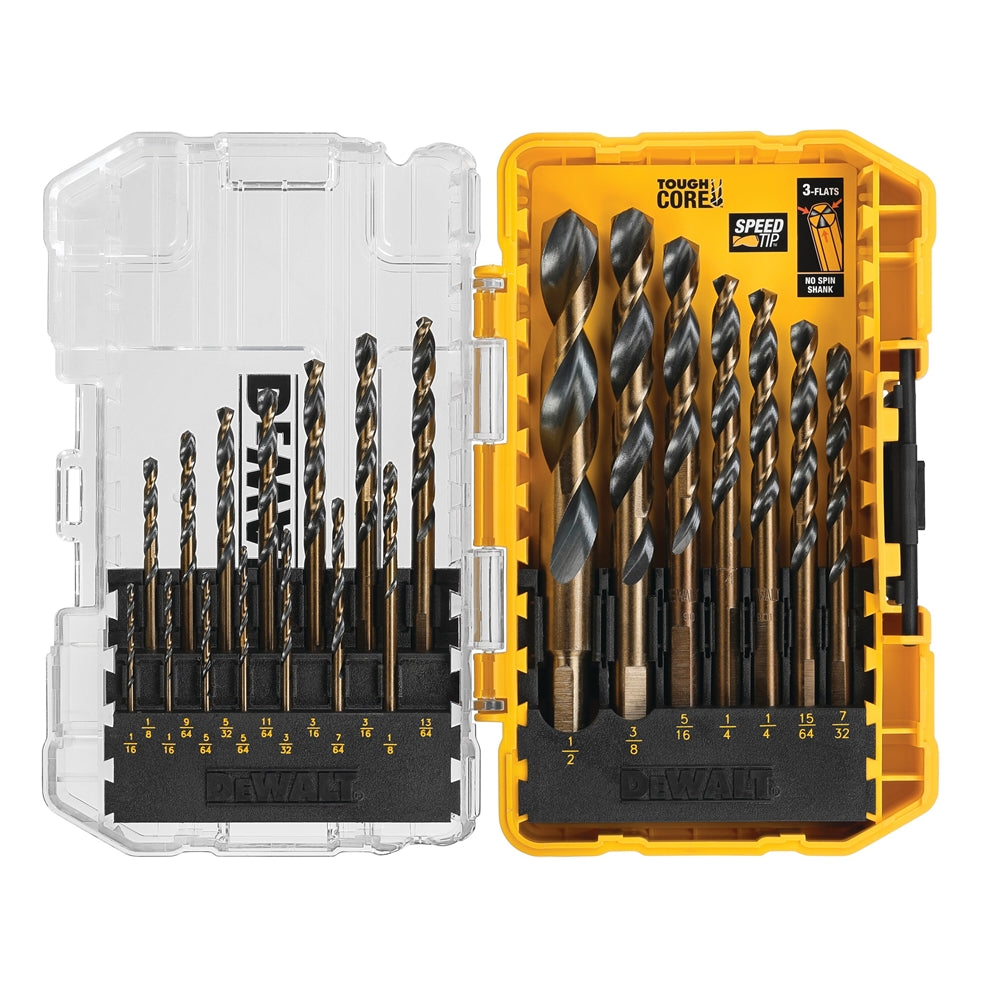

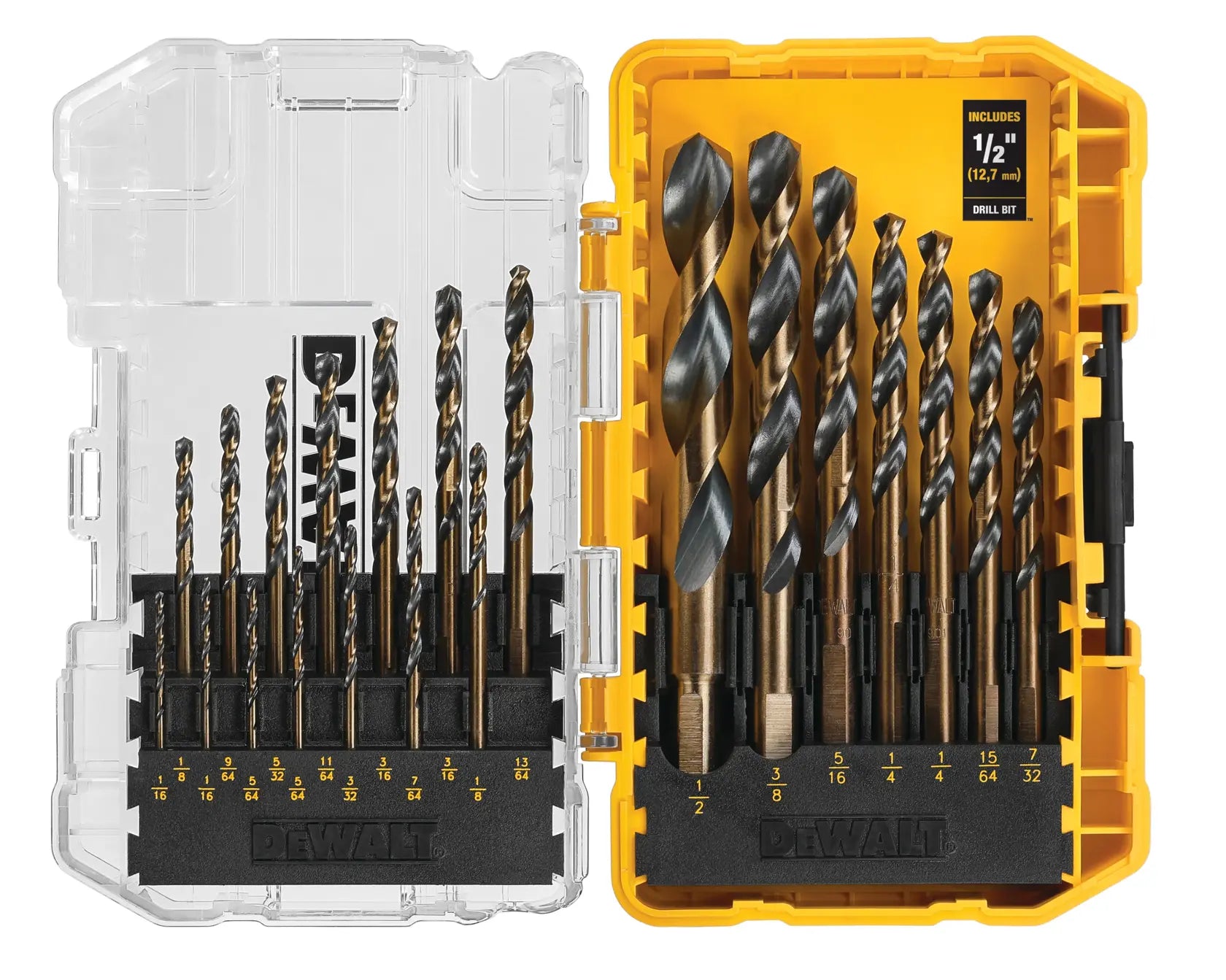

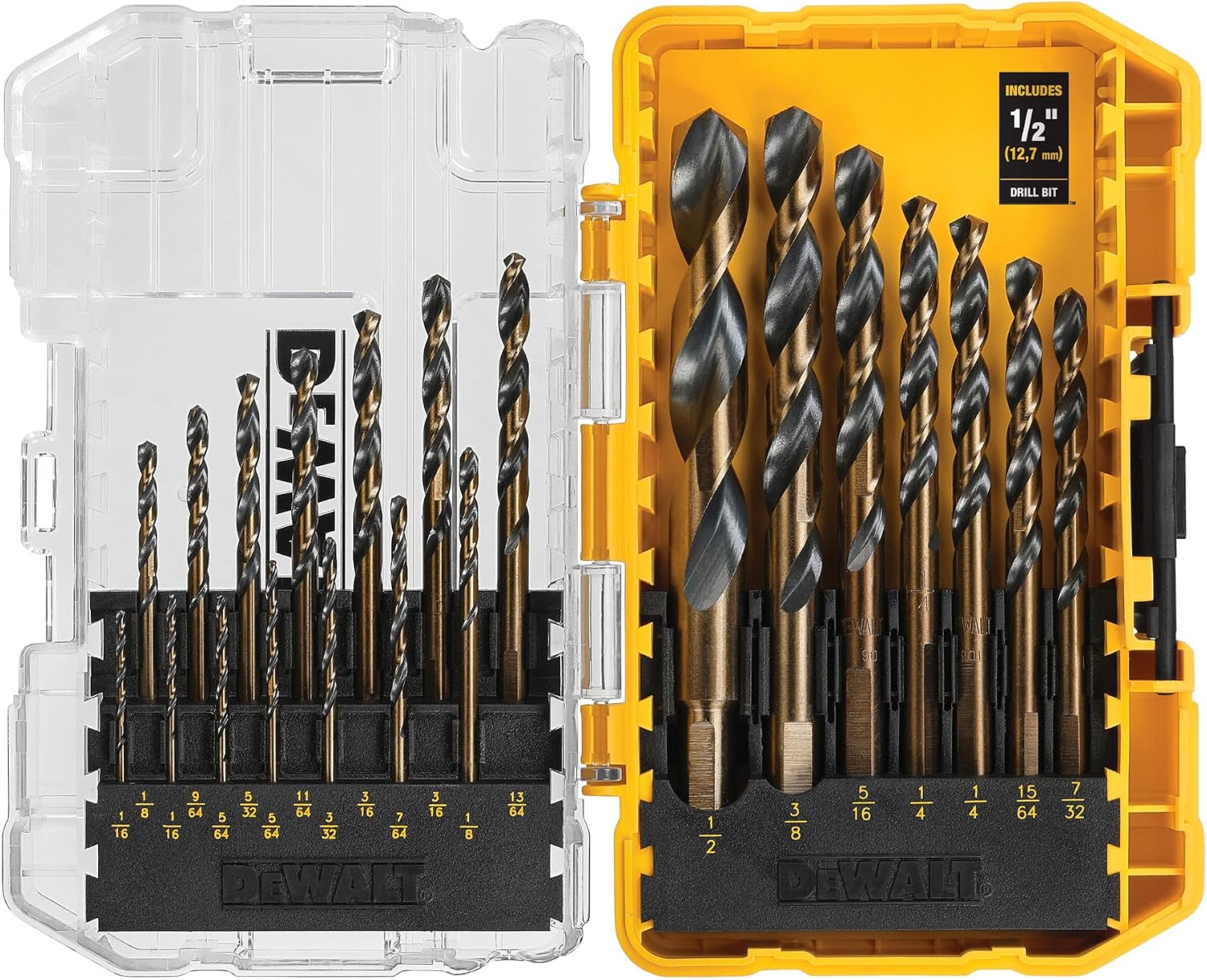

The DeWalt DWA1181 is a 21-piece jobber drill bit set made from high-speed steel with a black oxide coating for drilling in plastic, wood, and metal. Bits feature a 135° split point tip and a 31° helix with parabolic flutes to reduce walking and improve chip removal. The set uses straight shanks and is supplied in a compact storage case for organized transport and storage.

• 135° split point tip and 31° helix for reduced walking and faster penetration
• Black oxide coated high-speed steel with parabolic flute design for chip ejection
• Straight shank set (3-flats on sizes >3/16 in) in a connectible storage case

Product Highlights

21-piece HSS jobber drill bit set with 135° split point, parabolic flutes, and black oxide coating for drilling in plastic, wood, and metal.

Product Information

Standard Information

• Brand: DEWALT
• Manufacturer Part Number: DWA1181
• Country of Origin: China

Technical Specifications

• Brand: DEWALT
• MPN: DWA1181
• Model: DWA1181
• Number of Pieces: 21
• Material: High Speed Steel
• Finish/Coating: Black oxide
• Point Angle: 135 Degrees (split point)
• Helix Angle: 31 Degrees
• Flute Type: Parabolic
• Number of Flutes: 2
• Shank Type: Straight
• Shank Features: 3-flats shank on sizes larger than 3/16 in
• Size Range: 1/16 in to 1/2 in
• Drill Length Class: Jobber Length
• Intended Materials: Plastic, Wood, Metal, PVC, Fiberglass
• Cutting Direction: Right Hand
• Impact Rated: No
• Coolant Fed: Non-Coolant Through
• Included Components: (1) 21 Piece drill bit set
• Item Weight: 1 pounds
• Product Dimensions: 8.8 x 8.8 x 1.3 inches
• Case Type: Connectible ToughCase+ with bit-bar and clear lid
