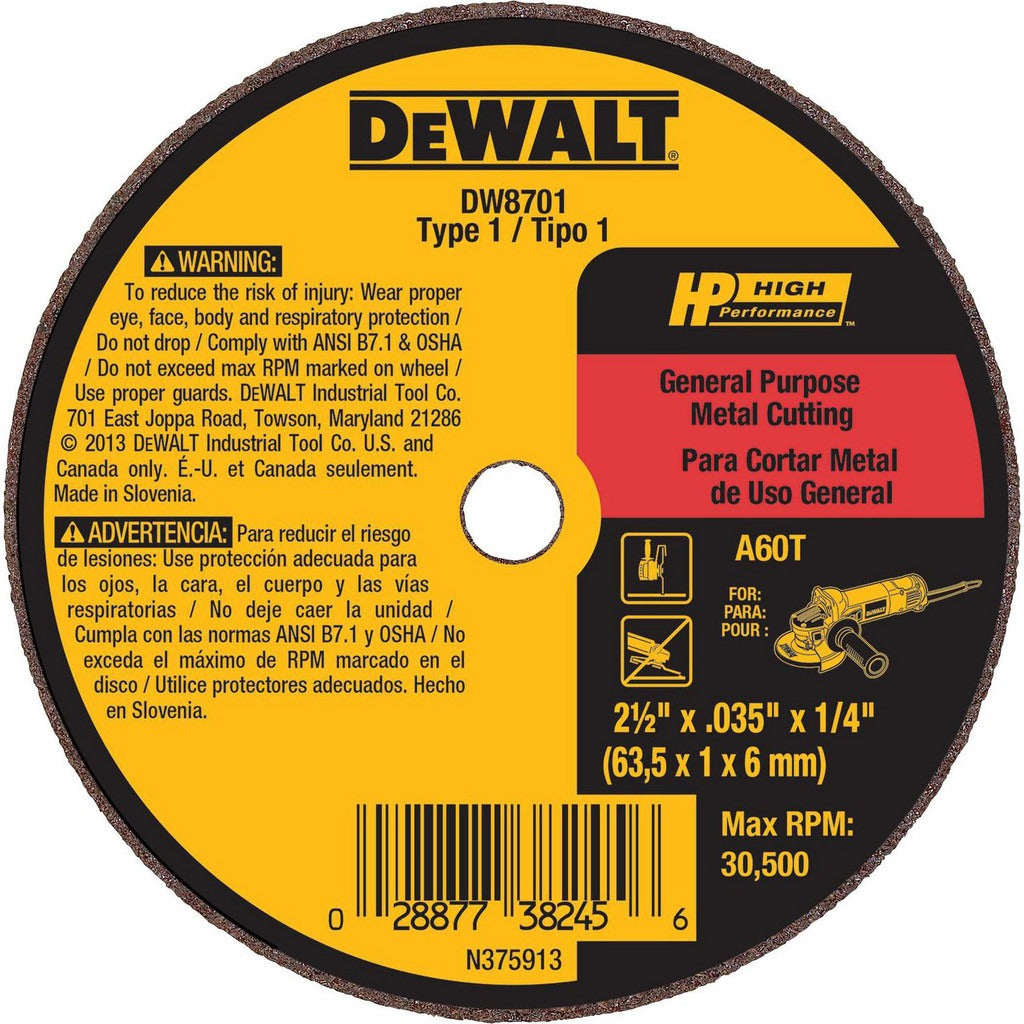

Dewalt DW8701 Type 1 Cut-off Wheel 2.5in 60 Grit

Product Description

The DEWALT DW8701 is a Type 1 (01/41) cut-off wheel designed for rotary tool applications requiring fast, clean cuts on ferrous and non-ferrous metals. Built with reinforced aluminum oxide abrasive at 60 grit, this flat-profile wheel handles straight cutting tasks on steel and stainless steel. It measures 2.5 inches in diameter with a 1/4-inch arbor hole and a 0.035-inch thickness, keeping the kerf narrow and heat generation low. The resinoid bond holds the abrasive grain under high-speed load conditions, and the wheel is rated to a maximum of 30,500 RPM. At 0.02 pounds, it is a lightweight consumable suited for die grinders, rotary tools, and similar handheld power tools used by machinists, fabricators, pipefitters, and HVAC technicians.

This cut-off wheel is intended for cutting steel and stainless steel in light-duty to medium-duty applications. It is well suited for deburring, slotting, and cutting in tight or confined spaces where a small-diameter wheel is required. Typical use cases include cutting sheet metal, pipe, rod, and small structural stock. The 2.5-inch diameter makes it a common choice for die grinders used in field service, shop fabrication, and mechanical room work where access is limited and a full-size angle grinder cannot be positioned safely.

Key Features

• Type 1 (01/41) flat profile for straight, controlled cuts
• Reinforced aluminum oxide abrasive rated at 60 grit
• 2.5-inch diameter with 1/4-inch arbor hole fits standard die grinders
• 0.035-inch wheel thickness minimizes material removal and heat buildup
• 30,500 maximum RPM rating for high-speed rotary tool use
• Resinoid bond with Hardness Code T for controlled wear under load
• Rated for steel and stainless steel applications

Compatibility

Designed for use with die grinders and rotary tools that accept a 1/4-inch arbor and operate within the 30,500 RPM maximum speed rating. Suitable for cutting steel and stainless steel per the A60T specification.

Installation Notes

Mount this wheel only on a tool whose maximum operating speed does not exceed the wheel's 30,500 RPM rating. Disconnect power and confirm the tool is de-energized before changing wheels. Inspect the wheel for cracks or chips before each use and do not use damaged wheels. Always wear appropriate eye and face protection and follow ANSI B7.1 and tool manufacturer guidelines when operating abrasive cut-off wheels.
