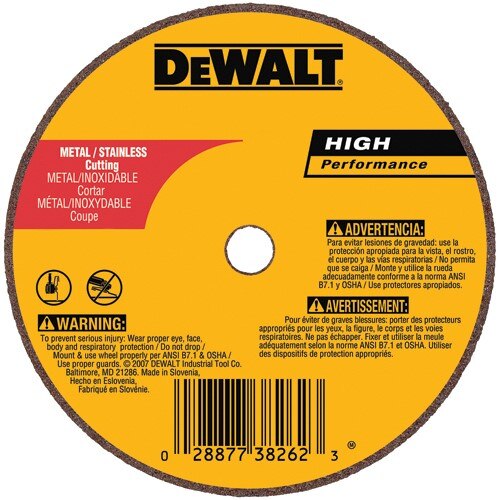

Dewalt DW8701 Thin Cut-off Wheel A60T Metal Type 1

Product Description

The DEWALT DW8701 is a bonded abrasive thin cut-off wheel designed for cutting metal in demanding trade and industrial applications. Measuring 2.5 inches in diameter, 0.035 inches thick, and with a 0.25-inch arbor hole, this Type 1 flat wheel is engineered for precision cuts with minimal material loss. The A60T abrasive grain specification indicates a 60-grit aluminum oxide blend suited for ferrous metal cutting. At 0.02 pounds per wheel, it is lightweight and balanced for use in high-cycle cutting tasks. Electricians, plumbers, HVAC techs, and fabricators commonly reach for wheels like this when working with conduit, pipe, and metal strapping.

This wheel is intended for use on pneumatic or electric right-angle grinders and rotary cut-off tools that accept a 0.25-inch arbor. The Type 1 flat profile is the standard configuration for straight cut-off work on metal stock, conduit, threaded rod, and similar ferrous materials. It is sold individually and is suited for job-site and shop use wherever a compact 2.5-inch cut-off wheel fits the tool requirement.

Key Features

• Type 1 flat wheel profile for straight, controlled metal cuts
• A60T bonded abrasive grain for ferrous metal cutting performance
• 2.5-inch diameter with 0.035-inch thin kerf to minimize material waste
• 0.25-inch arbor hole fits standard compact cut-off and rotary tools
• Lightweight at 0.02 pounds per wheel for balanced high-cycle use

Compatibility

Designed as an OEM-style replacement or standard consumable for pneumatic and electric rotary cut-off tools accepting a Type 1 flat wheel with a 0.25-inch arbor and a maximum 2.5-inch wheel diameter.

Installation Notes

Installation and wheel changes must be performed with the tool unplugged or the air supply disconnected. Inspect the wheel for cracks or chips before mounting — never use a damaged abrasive wheel. Ensure the tool's rated RPM meets or exceeds the wheel's maximum rated speed before operation. Wheel changes on bonded abrasive tools are typically performed by the tool operator; no special trade license is required, but follow ANSI B7.1 safe practices for abrasive wheel use.

Technical Specifications

• Diameter: 2.5 inches
• Thickness: 0.035 inches
• Arbor Size: 0.25 inches
• Abrasive Grade: A60T
• Wheel Type: Type 1 Flat
• Application: Metal Cutting
• Weight: 0.02 pounds
• UPC: 028877382456

Standard Information

• Brand: DEWALT
• Manufacturer Part Number: DW8701
