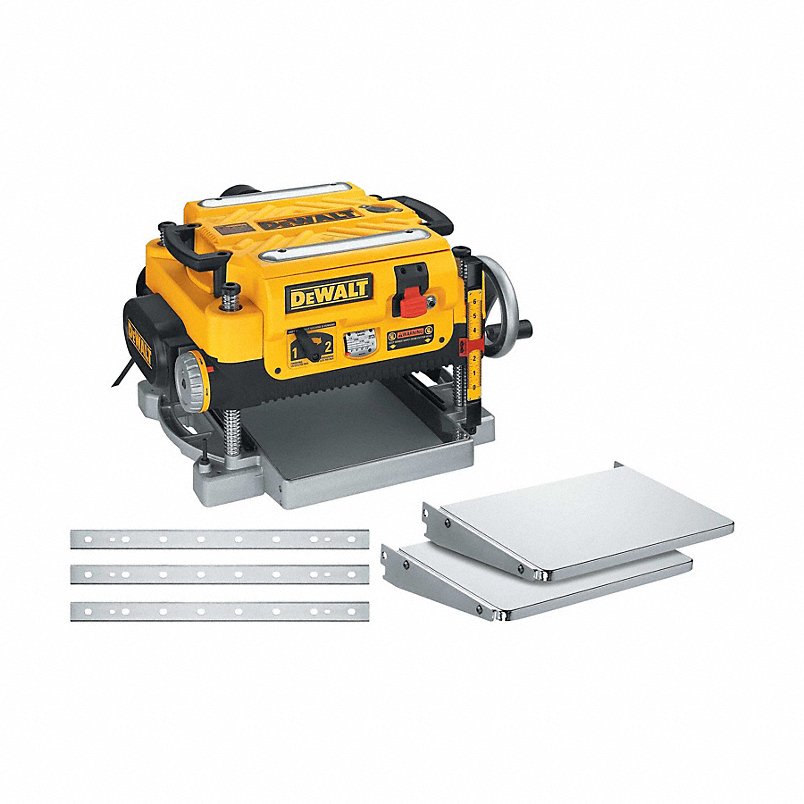

Dewalt dw735x Portable Benchtop Planer 2 Hp 13 in

Product Description

The DEWALT dw735x is a portable benchtop planer built for smoothing and leveling lumber along its length on the jobsite or in the shop. Powered by a 2 hp motor at 120V AC single-phase drawing 15 amps, it reaches a maximum cutter head speed of 10,000 RPM and delivers up to 30,000 cuts per minute using three straight-blade cutters across a 13-inch blade width. The cast aluminum base keeps the unit rigid while remaining light enough to move between work areas. Licensed tradespeople and skilled finish carpenters are the primary installers and operators of this tool.

The dw735x is suited for residential and light commercial carpentry work where dimensional lumber or rough stock needs to be brought to a consistent thickness. It accepts material up to 13 inches wide and 6 inches tall, with a maximum cutting depth of 1/8 inch per pass. Two selectable feed rates of 14 and 26 feet per minute allow the operator to match material removal rate to wood species and grain direction. The benchtop mounting style makes it appropriate for portable setups on tables, workbenches, or any stable flat surface on a jobsite or in a shop environment.

Key Features

• Three straight-blade cutter head produces 30,000 cuts per minute for smooth surface finish
• Two feed rates (14 and 26 fpm) for adapting to hardwood and softwood stock
• 13-inch maximum material width handles wide boards in a single pass
• Maximum cutting depth of 1/8 inch per pass for controlled material removal
• Cast aluminum base provides rigidity without excessive weight
• Includes dust hose adapter for connection to shop dust collection systems

Compatibility

Designed as an OEM-style benchtop planer for portable and stationary shop use with standard corded three-prong power connections on 120V AC single-phase circuits rated for 15 amps or greater.

Installation Notes

Setup and operation should be performed by a qualified carpenter or tradesperson familiar with stationary and portable power tools. Before changing blades or performing any maintenance, disconnect the tool from the power source completely. Ensure the benchtop or work surface can support the tool weight of 92 pounds and is stable and level before operation. Always connect the dust hose adapter to an appropriate dust collection system to maintain a clear work area and comply with applicable shop safety requirements.

Technical Specifications

• Horsepower: 2 hp
• Voltage: 120V AC
• Phase: Single-Phase
• Current: 15 amps
• Maximum Cutter Head Speed: 10,000 RPM
• Maximum Speed: 20,000 RPM
• Cuts per Minute: 30,000
• Number of Blades: 3
• Cutter Type: Straight Blade
• Blade Width: 13 inches
• Maximum Material Width: 13 inches
• Maximum Material Height: 6 inches
• Maximum Cutting Depth: 1/8 inch
• Feed Rates: 14 and 26 fpm
• Number of Speeds: 2
• Overall Width: 19.5 inches
• Overall Depth: 22.5 inches
• Overall Height: 13.5 inches
• Tool Weight: 92 pounds
• Base Material: Cast Aluminum
• Mounting Type: Benchtop
• Power Source: Corded
• Plug Type: Three-Prong
• Dust Collection: Not Included (Dust Hose Adapter Included)
• Country of Origin: China (subject to change)

Standard Information

• Brand: DEWALT
• Manufacturer Part Number: dw735x
