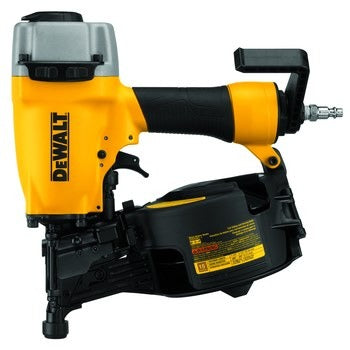

Dewalt dw66c-1 Pneumatic Siding Fencing Coil Nailer

Product Description

The DEWALT dw66c-1 is a pneumatic coil siding and fencing nailer built for production-pace exterior work. It drives 15-degree coil siding nails in the .080 x 1.25-inch to .092 x 2.5-inch fastener range and holds up to 300 nails in the magazine, reducing reload stops on large jobs. The tool operates at 70-120 psi, compatible with standard job-site compressors. At 4.9 pounds and 10.5 inches in overall length, it is compact enough for repetitive overhead and vertical applications. Licensed contractors and finish carpenters installing LP, fiber cement, or wood siding typically reach for this nailer when production volume demands a coil-fed tool over a stick nailer.

The dw66c-1 is suited for residential and light commercial siding installation, wood fencing, and similar exterior sheathing applications. Its operating pressure range of 70-120 psi allows use with a wide variety of portable air compressors commonly found on exterior framing and siding crews. The 300-nail magazine capacity makes it practical for long runs of horizontal lap siding or board-on-board fence panels where stopping to reload disrupts workflow.

Key Features

• Pneumatic drive operates at 70-120 psi, compatible with standard portable compressors
• Accepts 15-degree coil siding nails in .080 x 1.25-inch to .092 x 2.5-inch range
• 300-nail magazine capacity reduces reloads during high-volume applications
• Compact 10.5-inch overall length supports maneuverability in tight or overhead positions
• Lightweight at 4.9 pounds to reduce fatigue during extended use
• Includes operator manual for reference during setup and maintenance

Compatibility

Designed for use with 15-degree coil siding nails in the .080 x 1.25-inch to .092 x 2.5-inch fastener range. Always verify nail gauge and collation angle match tool specifications before loading.

Installation Notes

Installation and operation should be performed by a qualified carpenter or contractor familiar with pneumatic nailer safety practices. Disconnect the air supply before clearing jams, adjusting depth-of-drive settings, or performing any maintenance. Ensure the compressor output does not exceed 120 psi to avoid tool damage or fastener over-drive. Follow all applicable safety guidelines and wear appropriate eye and hearing protection during operation.

Technical Specifications

• Power Type: Pneumatic
• Fastener Type: 15-degree Coil Siding Nails
• Fastener Range: .080 x 1.25 inches to .092 x 2.5 inches
• Magazine Capacity: 300 nails
• Operating Pressure: 70-120 psi
• Overall Length: 10.5 inches
• Overall Height: 11 inches
• Weight: 4.9 pounds
• Package Quantity: 1 each

Standard Information

• Brand: DEWALT
• Manufacturer Part Number: dw66c-1
