Dewalt DW5768 Spline Shank Rotary Hammer Bit 1-3/4in

Product Description

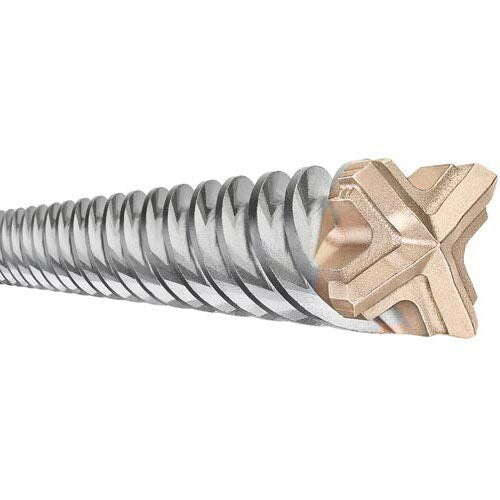

The DEWALT DW5768 is a 4-cutter spline shank rotary hammer bit designed for heavy-duty concrete and masonry drilling. It measures 1-3/4 inches in diameter with a 17-inch working length and 22-inch overall length. The carbide cutting head is engineered to handle high-impact rotary hammer applications where standard bits would fail under load. This bit is installed by licensed contractors, concrete specialists, and experienced tradespeople working with spline-drive rotary hammer tools on demanding structural and foundation drilling tasks.

This bit is suited for large-diameter hole drilling through reinforced concrete, block, and masonry in both residential and commercial construction applications. Typical uses include anchor bolt installations, core boring for conduit or pipe penetrations, and deep hole drilling where a full-length 22-inch reach is required. The spline shank interface ensures positive torque transfer and secure chuck engagement during prolonged hammer drilling cycles.

Key Features

• 4-cutter carbide tip for aggressive material removal in concrete and masonry
• 1-3/4 inch diameter for large-format hole requirements
• 22-inch overall length with 17-inch working length for deep drilling reach
• Spline shank design for use with spline-drive rotary hammer tools
• Engineered for high-impact rotary hammer drilling cycles

Compatibility

Designed for use with spline-drive rotary hammer tools that accept standard spline shank tooling for large-diameter concrete and masonry drilling applications.

Installation Notes

Installation and use of this bit should be performed by qualified tradespeople familiar with rotary hammer operation and concrete drilling safety practices. Verify the rotary hammer tool is powered off and unplugged before inserting or removing the bit from the chuck. Eye protection and hearing protection are required during operation. Follow applicable jobsite safety codes and tool manufacturer guidelines for bit speed and drilling pressure.

Technical Specifications

• Diameter: 1-3/4 inches
• Working Length: 17 inches
• Overall Length: 22 inches
• Number of Cutters: 4
• Shank Type: Spline
• Cutting Material: Carbide
• Weight: 5.6 pounds
• UPC: 028874057654

Standard Information

• Brand: DEWALT
• Manufacturer Part Number: DW5768
