Dewalt DW5732 Spline Shank Rotary Hammer Bit 1-1/2x17x22

Product Description

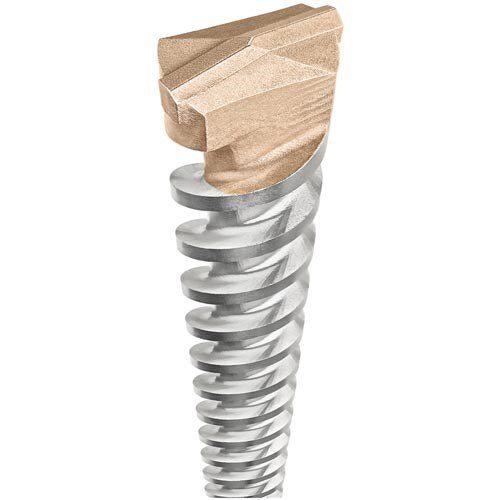

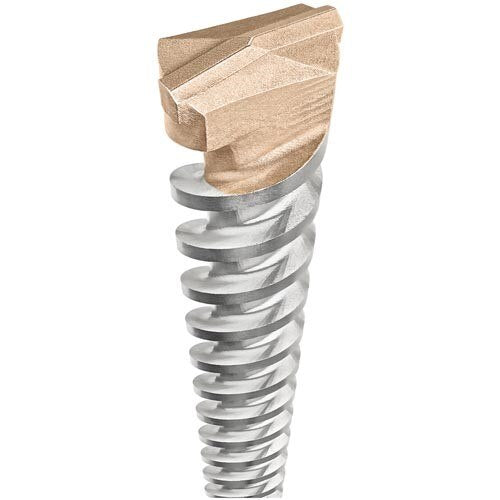

The DEWALT DW5732 is a 2-cutter carbide spline shank rotary hammer bit built for heavy-duty concrete and masonry drilling. It measures 1-1/2 inches in diameter with a 17-inch working length and 22-inch overall length. The spline shank interface transfers high torque and impact energy from the rotary hammer directly to the bit, reducing slippage and improving drilling efficiency in hard aggregate. This bit is installed by concrete contractors, foundation specialists, and commercial tradespeople who rely on spline-drive rotary hammers for anchor setting, rebar clearing, and structural penetrations.

This bit is suited for demanding concrete drilling applications in commercial and residential construction. Typical use cases include drilling through reinforced concrete slabs, block walls, and stone foundations where a standard SDS bit lacks the torque capacity or diameter range. The 1-1/2-inch bore diameter makes it well-suited for anchor bolt installations, conduit sleeves, and large core penetrations. The 22-inch overall length allows reach in deep or obstructed drilling situations where shorter bits fall short.

Key Features

• Carbide cutting tips on 2-cutter head for aggressive material removal in concrete and masonry
• Spline shank design for high-torque spline-drive rotary hammer compatibility
• 1-1/2-inch diameter supports anchor sleeve and conduit sleeve applications
• 22-inch overall length provides extended reach in deep drilling scenarios
• 17-inch working length maximizes usable cutting depth

Compatibility

Designed for use with spline-drive rotary hammer tools. The spline shank interface is not compatible with SDS-plus or SDS-max chucks without an adapter.

Installation Notes

Installation should be performed by a qualified tradesperson familiar with rotary hammer operation and applicable safety codes. Always wear appropriate PPE including eye protection and hearing protection when operating rotary hammer equipment. Ensure the rotary hammer is powered off and the bit is fully seated in the chuck before beginning any drilling operation. Do not use this bit in a standard drill or hammer drill that is not rated for spline shank tooling.

Technical Specifications

• Diameter: 1-1/2 inches
• Working Length: 17 inches
• Overall Length: 22 inches
• Cutter Count: 2
• Shank Type: Spline
• Bit Material: Carbide
• Weight: 4.28 pounds
• UPC: 028874057326

Standard Information

• Brand: DEWALT
• Manufacturer Part Number: DW5732
