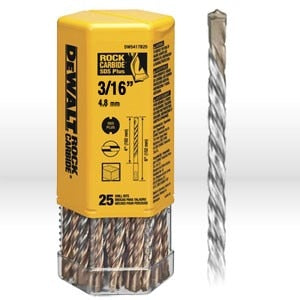

Dewalt DW5403B25 Sds Plus Masonry Drill Bit 3/16x4.5x6.5 in

Product Description

The DEWALT DW5403B25 is a Rock Carbide SDS Plus masonry drill bit designed for rotary hammer drilling in concrete, block, brick, and similar masonry substrates. It measures 3/16 inches in diameter with a 4-1/2 inch usable length and an overall length of 6-1/2 inches. The serrated titanium carbide tip is engineered for extended drilling life under heavy use. An improved flute geometry evacuates dust from the hole quickly, reducing heat buildup and maintaining drill speed. This bit is compatible with SDS Plus rotary hammers and is typically installed by licensed contractors, masonry tradespeople, and experienced HVAC or plumbing technicians drilling anchor holes for equipment mounting.

The DW5403B25 is suited for setting anchors in poured concrete, concrete block, and brick in both residential and light commercial applications. It is commonly used when mounting HVAC equipment brackets, pipe hangers, electrical panels, or other mechanical trade hardware to masonry walls or floors. The bit is sold in a pack configuration with a minimum order quantity of one pack. It is rated to set up to 25 percent more anchors compared to standard masonry bits, making it a productive choice for high-volume anchor-setting work.

Key Features

• Rock Carbide SDS Plus tip for compatibility with SDS Plus rotary hammers
• Serrated titanium carbide tip delivers extended drilling life in hard masonry
• Improved flute design pulls dust quickly for faster, cooler drilling
• Pilot point tip starts on contact, reducing bit walking and improving hole accuracy
• Rated to set up to 25 percent more anchors than standard masonry bits

Compatibility

Designed for use with SDS Plus rotary hammers accepting 3/8 inch and 1/2 inch chuck-compatible SDS Plus shanks. Suitable for drilling anchor holes in concrete, brick, and block masonry.

Installation Notes

Installation should be performed by qualified tradespeople familiar with rotary hammer operation and anchor-setting procedures. Disconnect or de-energize any utilities in the work area before drilling into walls, floors, or ceilings. Wear appropriate eye and respiratory protection when drilling masonry, as dust and debris are generated. Follow anchor manufacturer specifications and applicable building codes when setting anchors in structural masonry.

Technical Specifications

• Bit Diameter: 3/16 inches
• Usable Length: 4-1/2 inches
• Overall Length: 6-1/2 inches
• Shank Type: SDS Plus
• Tip Material: Serrated Titanium Carbide
• Weight: 2.5 pounds
• UPC: 028874254039

Standard Information

• Brand: DEWALT
• Manufacturer Part Number: DW5403B25
