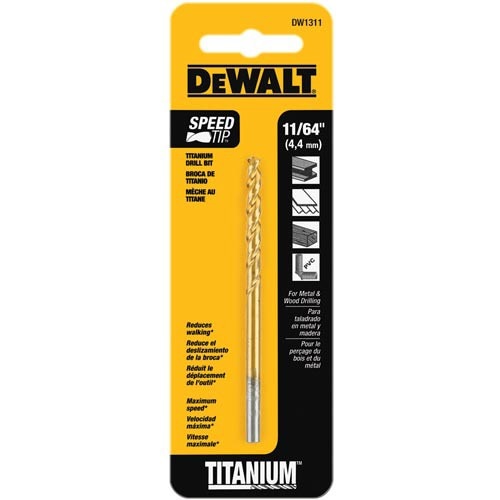

Dewalt DW1311 Titanium Drill Bit 11/64 in Split Point

Product Description

The DEWALT DW1311 is an 11/64-inch titanium-coated twist drill bit engineered for metal drilling applications. The split point tip design engages the workpiece immediately, eliminating the need for a center punch and reducing walking on hard surfaces. The titanium nitride coating increases surface hardness over standard high-speed steel, extending cutting life in ferrous and non-ferrous metals. This bit is a single-unit consumable suited for use by electricians, plumbers, HVAC technicians, and general contractors who drill through sheet metal, steel plate, or structural members in the field or on the bench.

The DW1311 is sized at 11/64 inches, placing it in common use for pilot holes, conduit knockout prep, and fastener clearance holes in light-gauge steel and metal framing. It is sold individually and is appropriate for standard 3-jaw drill chucks found on corded and cordless drill drivers. The titanium coating makes it well suited to repetitive drilling tasks where bit longevity matters on the job site.

Key Features

• 11/64-inch diameter titanium nitride-coated cutting edge for extended wear life in metal
• Split point tip starts on contact without center punching, reducing setup time
• Compatible with standard 3-jaw chuck corded and cordless drill drivers
• Lightweight at 0.03 pounds, easy to carry and store in a bit index or pouch
• Designed for ferrous and non-ferrous metal drilling applications

Compatibility

Designed as a standard 11/64-inch twist drill bit for use in any 3-jaw chuck drill driver accepting straight-shank bits of this diameter, commonly used in metal drilling tasks across electrical, plumbing, and HVAC trades.

Installation Notes

This bit is installed and removed by a licensed or qualified tradesperson using a standard keyed or keyless drill chuck. Always power down and disconnect the drill from its power source before changing bits. Wear appropriate eye protection when drilling metal, as chips and fragments are produced. Do not exceed the drill speed recommended for the bit diameter and material being drilled, as overheating reduces coating effectiveness and shortens bit life.

Technical Specifications

• Diameter: 11/64 inches
• Tip Style: Split Point
• Coating: Titanium Nitride
• Application: Metal Drilling
• Weight: 0.03 pounds
• UPC: 028874017498
• Sold As: Each

Standard Information

• Brand: DEWALT
• Manufacturer Part Number: DW1311
