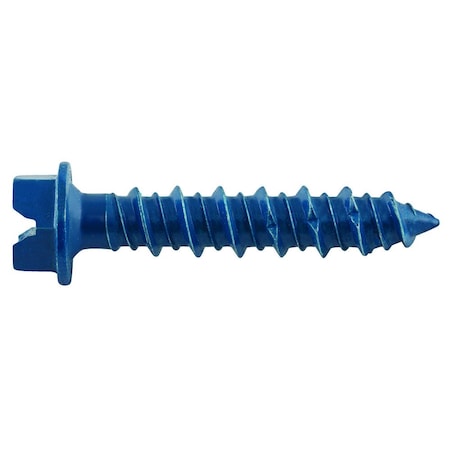

Dewalt DFM12720 Ultracon+ Concrete Screw Hex Washer Head (1/4 x 1-3/4)

Product Description

The Dewalt DFM12720 Ultracon+ concrete screw is a hex washer head anchor for direct fastening into concrete, masonry block, brick, and wood. It is steel with a Stalgard zinc finish, features a gimlet point for self-drilling into wood base materials, and a high-low thread profile that provides grip without exerting expansion forces. Matched drill bit size is 3/16 in and the product carries multiple ICC-ES approvals.

• Designed for direct fastening into concrete, block, brick, and wood; compatible with wood-to-concrete applications
• Steel construction with Zinc Stalgard finish, gimlet point for self-drilling, and high-low thread for improved holding
• Matched drill bit size 3/16 in; ICC-ES approvals (ESR-3068, ESR-3196, ESR-3042, ESR-3213) and testing per ACI and ICC-ES standards

Product Highlights

Hex washer head concrete screw, 1/4 in diameter, 1-3/4 in length, zinc Stalgard finish, 3/16 in drill bit

Product Information

Standard Information

• Brand: DEWALT
• Manufacturer Part Number: DFM12720
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Brand: DEWALT
• Manufacturer Part Number: DFM12720
• Product Name: Ultracon+ Concrete Screw Hex Washer Head
• Anchor Diameter: 1/4 in
• Length: 1 3/4 in
• Head Type: Hex washer head
• Drive Type: Hex socket
• Material: Steel (spring steel)
• Finish: Zinc Stalgard
• Compatible Materials: Concrete, masonry block, brick, wood
• Drill Bit Size: 3/16 in
• Removable: Yes
• Hydrogen Embrittlement: No
• RoHS Compliant: No
• Package Quantity: 100
• Head Width: 0.3125 in
• Head Height: 0.14 in
• Certifications: ICC-ES approvals: ESR-3068, ESR-3196, ESR-3042, ESR-3213; Tested per ACI 355.2, ICC-ES AC193 (including ASTM E488), AC106, AC233, AC257; Florida Approval FL29080
• UNSPSC Code: 31161500
• Country of Origin: Taiwan, Province of China
• Application: Direct fastening into concrete, block, brick, and wood; wood-to-concrete fastening without prespotting
