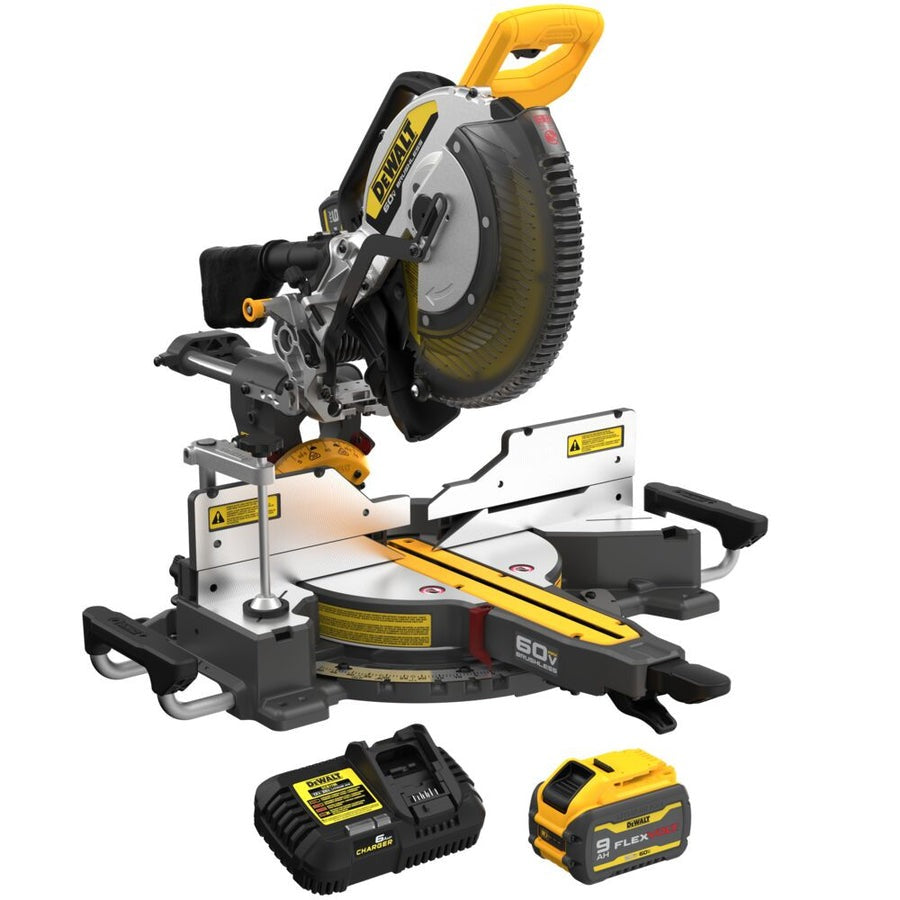

Dewalt dcs781x1 12 in 60V Cordless Sliding Miter Saw

Product Description

The DEWALT dcs781x1 is a 12-inch double bevel sliding compound miter saw powered by a 60V FLEXVOLT lithium-ion battery system. The brushless motor delivers a no-load blade speed of 3,800 RPM, providing consistent cutting power through dimensional lumber, trim, and engineered wood without the maintenance demands of a brushed motor. At 50.9 pounds, the saw is designed for job site transport and can be set up without a dedicated power circuit. Carpenters, finish framers, and trim carpenters are the primary installers and operators of this tool.

This saw is suited for residential and light commercial framing, trim installation, decking, and finish carpentry applications. The double bevel configuration allows the head to tilt left and right at up to 49 degrees each direction, eliminating the need to reposition the workpiece for opposing bevel cuts. The 12.1875-inch crosscut capacity and 6.5-inch maximum depth of cut handle wide boards and thick stock in a single pass. The cordless design makes it practical on job sites where power access is limited or where cord management creates a hazard.

Key Features

• Brushless motor at 3,800 RPM for efficient, low-maintenance cutting performance
• 60V FLEXVOLT battery system with 9 Ah capacity for extended run time per charge
• Double bevel capability with 49-degree bevel range left and right
• 12-inch blade diameter with 12.1875-inch crosscut capacity
• 6.5-inch maximum depth of cut for handling thick dimensional stock
• Cordless operation eliminates generator dependency or extension cord runs on site

Compatibility

Compatible with the DEWALT 60V FLEXVOLT battery platform. Designed for use with FLEXVOLT 9 Ah batteries and compatible FLEXVOLT chargers.

Installation Notes

Setup and operation should be performed by qualified carpenters or tradespeople familiar with miter saw safety practices. Before changing the blade or making adjustments, remove the battery pack from the tool to prevent accidental startup. Verify that blade guards, bevel locks, and miter detents are functioning correctly before cutting. Follow applicable OSHA and local job site safety requirements when operating on commercial or residential work sites.

Technical Specifications

• Blade Diameter: 12 inches
• No-Load Blade Speed: 3,800 RPM
• Voltage: 60 volts
• Battery Type: 60V FLEXVOLT Lithium-Ion
• Battery Capacity: 9 Ah
• Bevel Capacity: 49 degrees left / 49 degrees right
• Maximum Depth of Cut: 6.5 inches
• Crosscut Capacity: 12.1875 inches
• Power Source: Cordless
• Product Length: 30.51 inches
• Product Height: 17.72 inches
• Product Width: 19.49 inches
• Product Weight: 50.9 pounds

Standard Information

• Brand: DEWALT
• Manufacturer Part Number: dcs781x1
