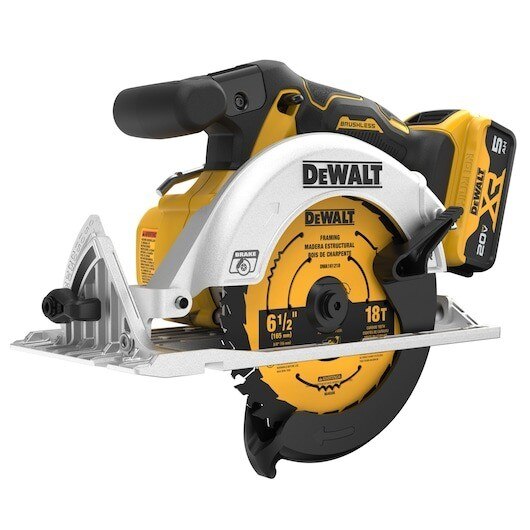

Dewalt DCS565P1 Circular Saw Kit 20V 6-1/2 Inch Brushless

Product Description

The DEWALT DCS565P1 is a 20V MAX 6-1/2 inch cordless circular saw kit built for trade professionals who need fast, accurate cutting across a range of materials. Powered by a brushless motor, it delivers 4,950 RPM for consistent performance through lumber, sheet goods, and trim work. The kit ships with a 20V MAX lithium-ion battery and charger, making it a ready-to-work package out of the box. Tool-free depth and bevel adjustments allow quick setup changes without interrupting workflow. A built-in electric brake stops the blade immediately after the trigger is released, adding a critical layer of jobsite safety.

This saw is suited for residential and light commercial framing, decking, sheathing, and finish carpentry. The compact, lightweight design reduces fatigue during extended overhead or repetitive cuts. An integrated rafter hook keeps the saw secure and accessible when moving between cuts. The built-in LED improves cut-line visibility in low-light conditions. An optional dust chute connects to the DEWALT AirLock system or any standard 35 mm dust extractor for cleaner work areas.

Key Features

• Brushless motor delivers 4,950 RPM for fast, consistent cutting performance
• Tool-free depth adjustment with a max depth of cut of 2-1/8 inches at 90 degrees
• Tool-free bevel lever adjusts from 0 to 50 degrees
• Electric brake stops blade immediately upon trigger release
• Built-in rafter hook for secure storage between cuts
• Compatible with all DEWALT 20V MAX and FLEXVOLT batteries
• Optional dust chute compatible with DEWALT AirLock system or standard 35 mm dust extractors

Compatibility

Compatible with all DEWALT 20V MAX and FLEXVOLT batteries.

Installation Notes

Installation and blade changes should be performed by a qualified carpenter or tradesperson familiar with cordless power tool operation. Always remove the battery pack before changing the blade or performing any maintenance. Verify blade arbor size matches the 5/8 inch arbor before installing a replacement blade. Follow applicable jobsite safety codes and personal protective equipment requirements when operating.

Technical Specifications

• Voltage: 20 volts
• Blade Diameter: 6-1/2 inches
• Arbor Size: 5/8 inches
• No-Load Speed: 4,950 RPM
• Max Depth of Cut at 90 Degrees: 2-1/8 inches
• Max Bevel Capacity: 50 degrees
• Motor Type: Brushless
• Battery Type: Lithium-Ion
• Weight: 11.55 pounds
• UPC: 885911671606

Standard Information

• Brand: DEWALT
• Manufacturer Part Number: DCS565P1
