Dewalt dcn650d1 15 Gauge Cordless Angle Finish Nailer Kit

Product Description

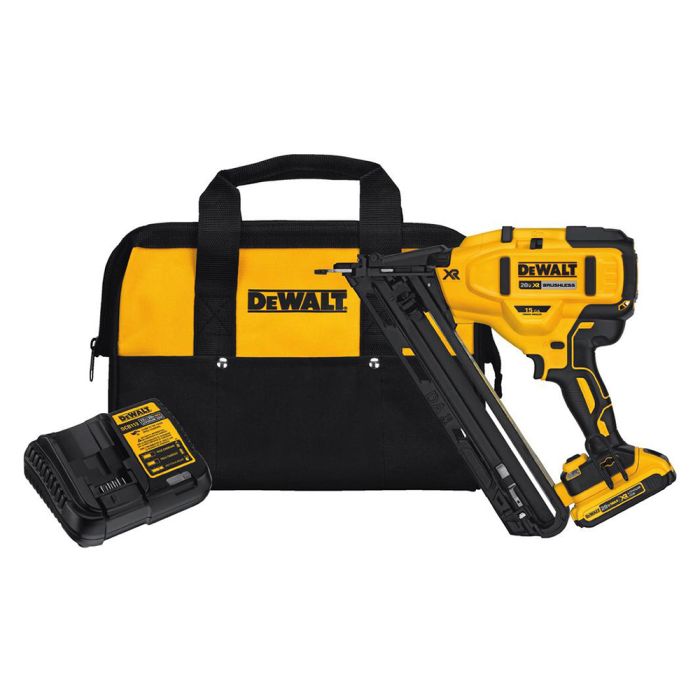

The DEWALT dcn650d1 is a cordless 15 gauge angled finish nailer kit built around a brushless motor and a 20V Max lithium-ion battery system. It drives 15 gauge angled finish nails from 1.25 inches to 2.5 inches in length, eliminating the need for a compressor, hose, or fuel cells on the job site. The brushless motor extends runtime and improves tool longevity compared to brushed alternatives. The kit includes the DCN650 nailer, a DCB203 2.0Ah battery, a DCB112 charger, and a kit bag. At 5.8 pounds without the battery, it is sized for sustained overhead and detail work without excessive fatigue.

The dcn650d1 is suited for finish carpentry and trim work in residential and light commercial settings. Typical applications include fastening crown molding, exterior trim, door and window casings, baseboards, and hardwood floor installation. The 34-degree angled magazine and inline design allow the nailer to reach into tight corners and work in multiple orientations, making it practical for both production runs and precise single-nail placement tasks. It is compatible with all DEWALT 20V Max batteries, giving crews flexibility across a shared battery platform.

Key Features

• Brushless motor maximizes runtime and extends tool durability
• Tool-free selectable trigger supports sequential or contact actuation modes
• Tool-free depth adjustment allows precise nail countersinking without additional tools
• Tool-free jam release and integrated stall release lever minimize downtime on the job
• Micro nose design improves line of sight for accurate nail placement compared to the DC628
• Multi-functional LED lights provide workspace illumination and tool diagnostics
• Adjustable belt hook configures for left or right attachment; 110-nail magazine capacity

Compatibility

Compatible with all DEWALT 20V Max batteries. The kit includes the DCN650 angled finish nailer, DCB203 2.0Ah battery, DCB112 charger, and kit bag.

Installation Notes

Installation and finish nailing with this tool is typically performed by finish carpenters, trim contractors, and flooring installers. Before clearing a nail jam or performing any maintenance, remove the battery pack from the tool. Always follow local building codes and worksite safety requirements when fastening structural or finish trim components. Verify nail length and gauge selection match the substrate and fastening schedule before loading the magazine.

Technical Specifications

• Nail Gauge: 15 Gauge
• Nail Length Range: 1.25 inches to 2.5 inches
• Voltage: 20V Max
• Nominal Voltage: 18 volts
• Battery Type: Lithium-Ion
• Motor Type: Brushless
• Firing Modes: Sequential or Bump (Contact)
• Magazine Angle: 34 degrees
• Loading Capacity: 110 nails
• Height: 13.3 inches
• Width: 3.7 inches
• Length: 12.9 inches
• Weight (Without Battery): 5.8 pounds
• LED Light: Yes
• Cordless or Corded: Cordless
• Warranty: 3 Years

Standard Information

• Brand: DEWALT
• Manufacturer Part Number: dcn650d1
