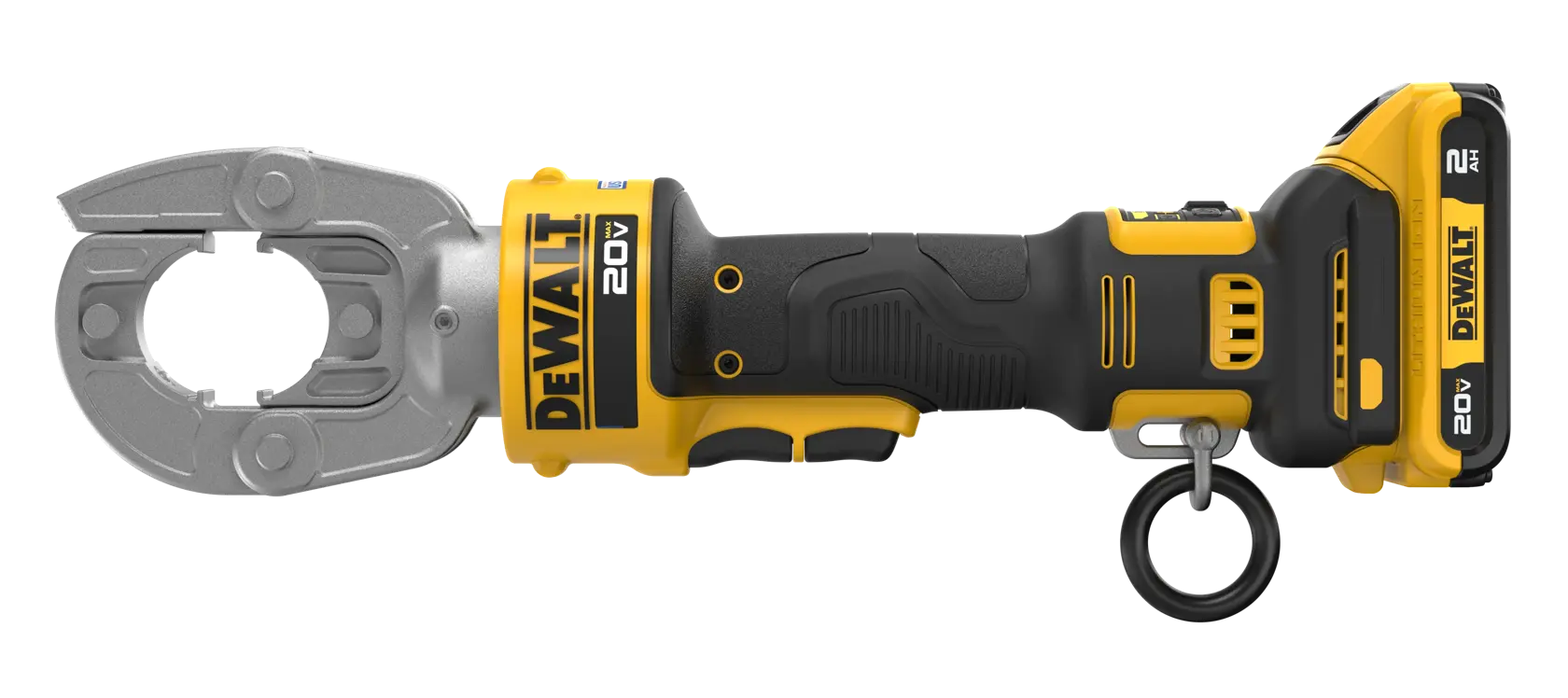

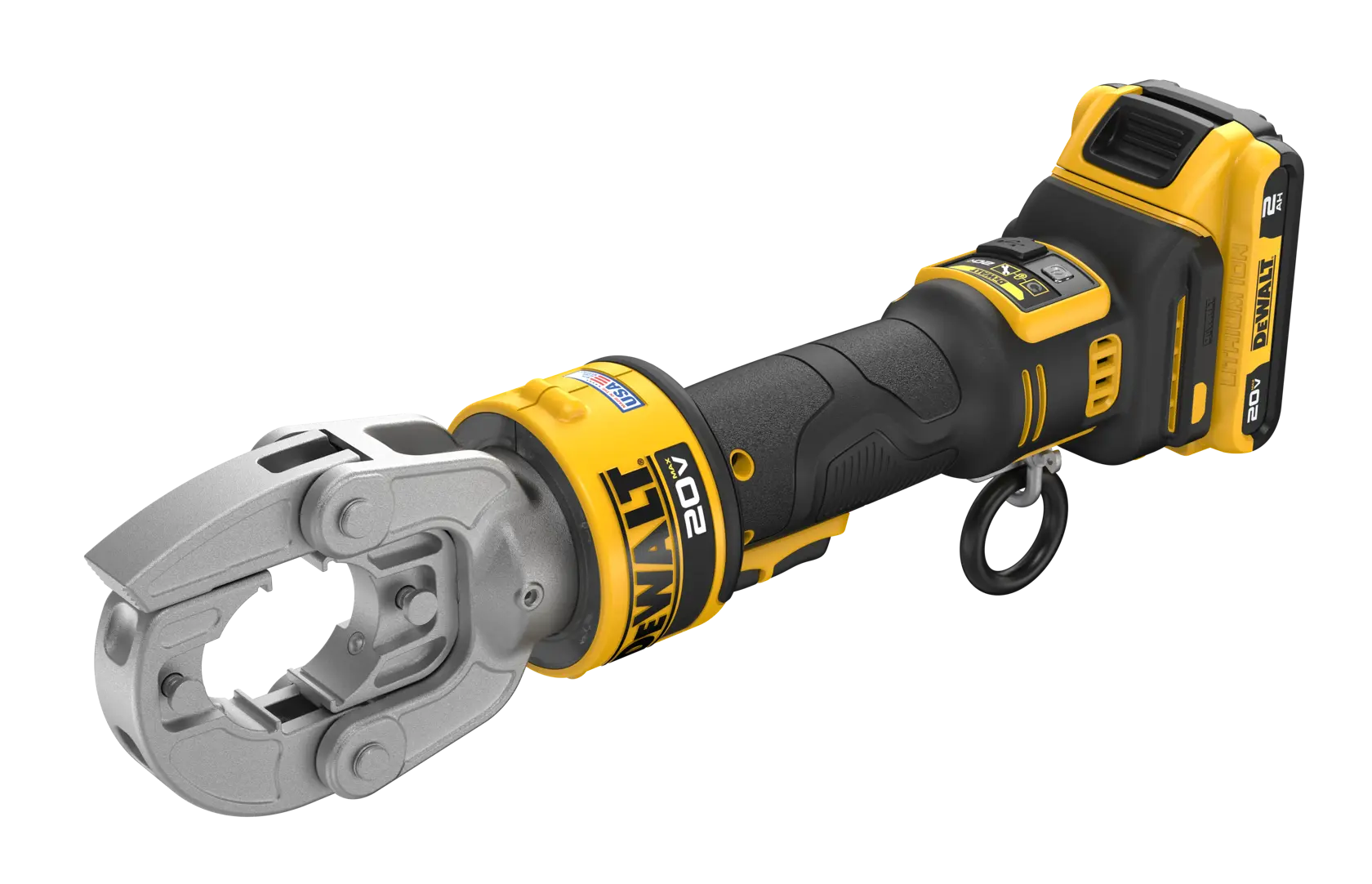

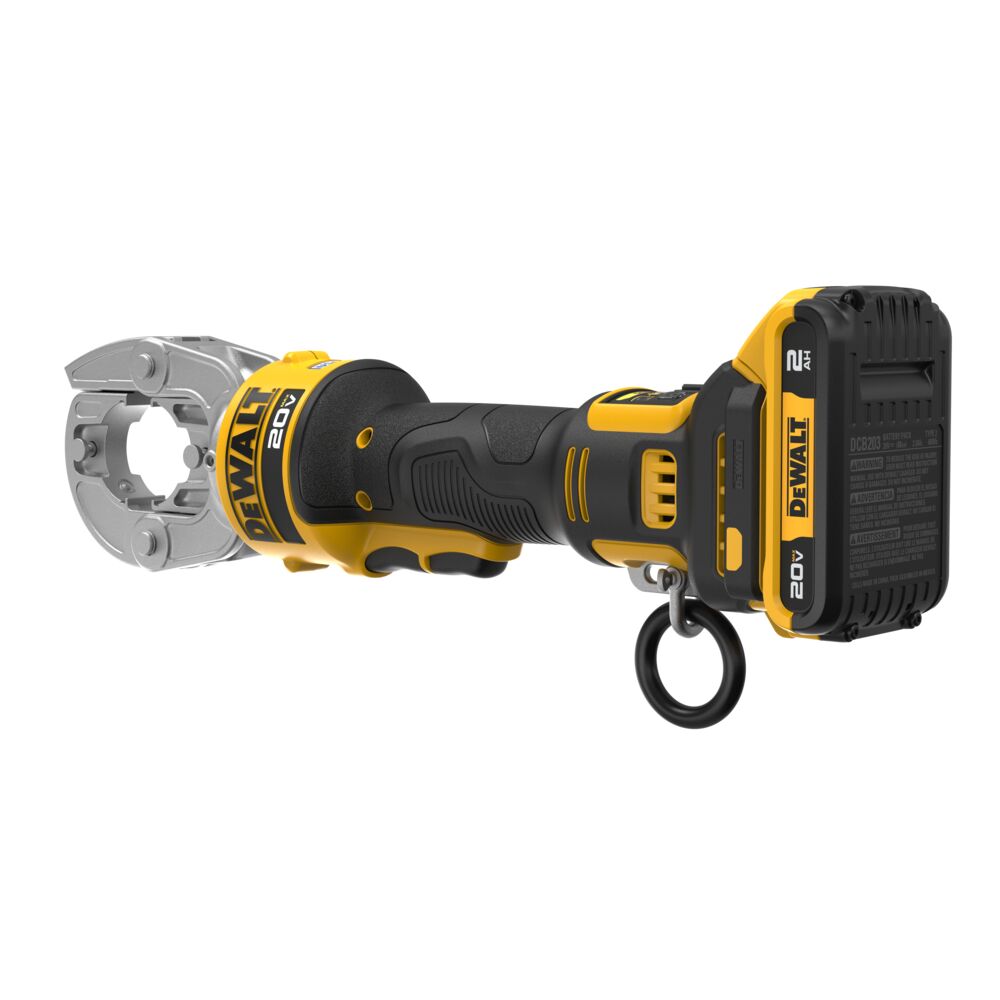

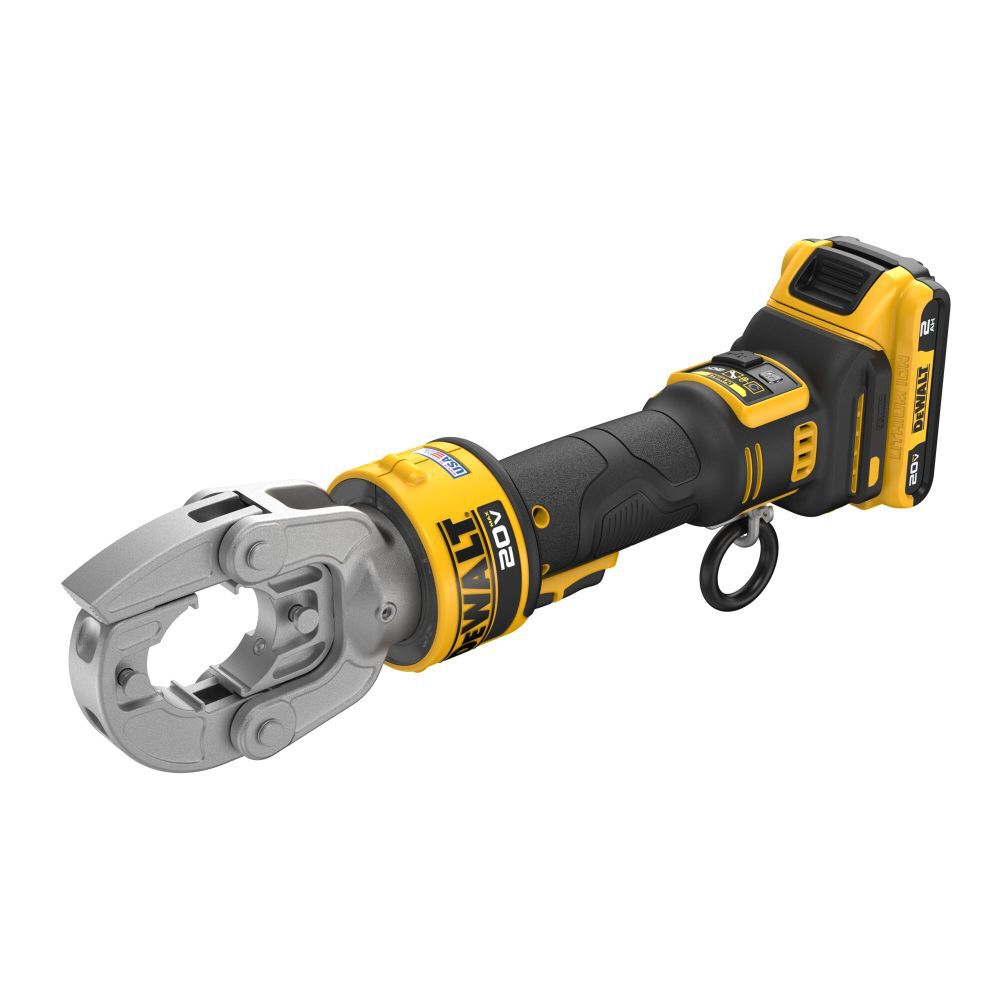

Dewalt DCE310D2 20V Max compact die crimping tool kit (180 degree head)

Product Description

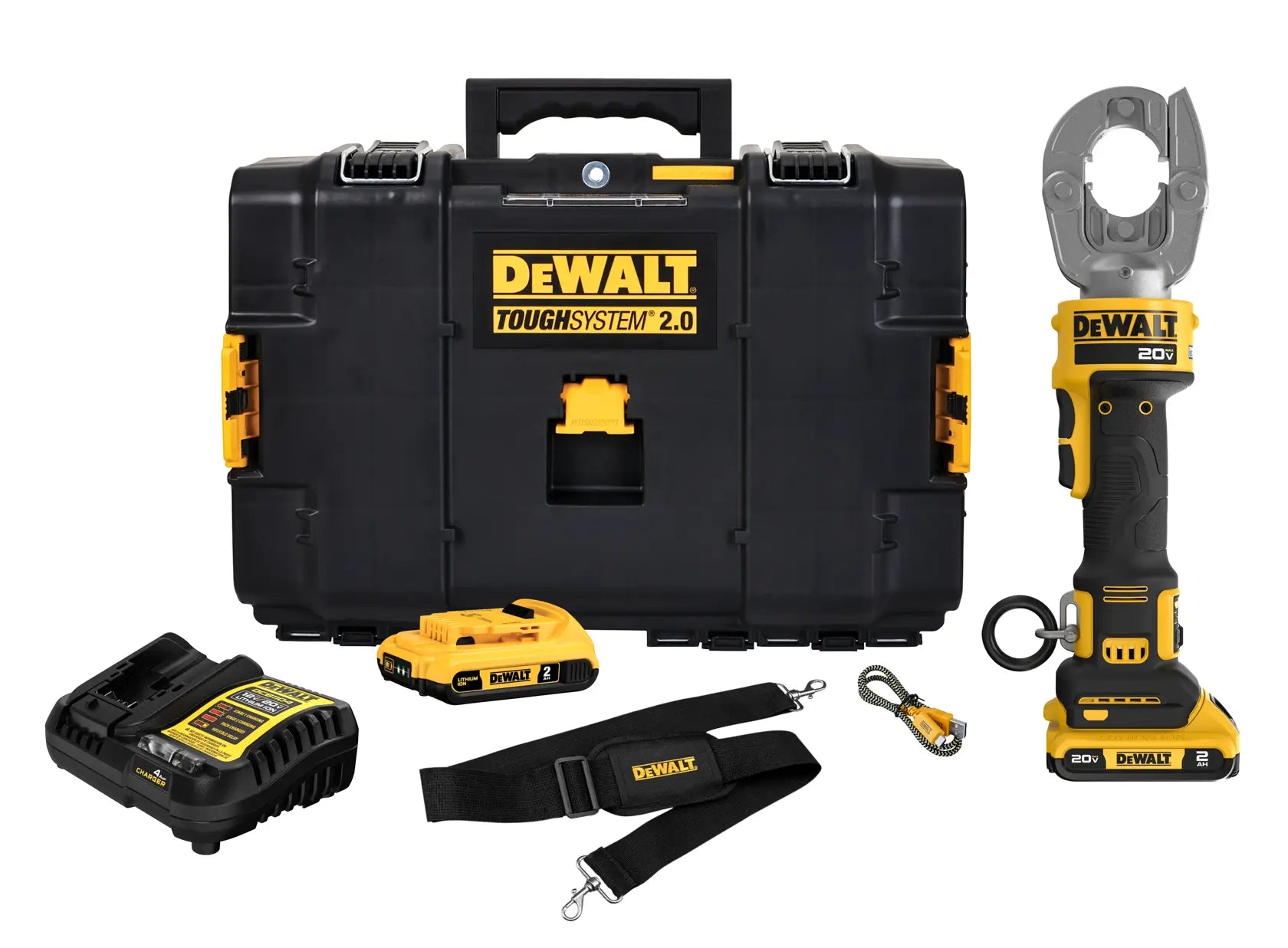

The DeWalt DCE310D2 is a 20V Max compact die crimping tool kit designed for crimping copper and aluminum cable. The cordless tool accepts DeWalt U-type dies and produces cULus-classified crimps, with a capacity from #8 to 600 MCM copper and #8 to 350 MCM aluminum. The kit includes two DCB203 2Ah batteries, a charger, USB-C cable, shoulder strap, Tool Connect chip, and a ToughSystem 2.0 case.

• Crimping capacity: #8 to 600 MCM copper; #8 to 350 MCM aluminum; accepts DeWalt U-type dies (sold separately)
• Cordless 20V Max power with two DCB203 2Ah batteries, charger, USB-C cable, shoulder strap, and ToughSystem 2.0 case
• 180 degree pivoting head, integrated Crimp Connect software, LED interface and bright LED ring, and Tool Connect chip pocket (DCE042 included)

Product Highlights

Cordless 20V Max crimper with up to 600 MCM copper capacity, Crimp Connect reporting, 180 degree head rotation, and Tool Connect asset management.

Product Information

Standard Information

• Brand: DEWALT
• Manufacturer Part Number: DCE310D2
• Country of Origin: United States

Technical Specifications

• Brand: DeWalt
• MPN: DCE310D2
• Model: DCE310D2
• Voltage: 20V
• Power Source: Battery
• Battery Platform: DeWalt 20V Max
• Included Batteries: 2 x DCB203 2Ah compact Li-ion
• Included Accessories: Charger; USB-C cable; shoulder strap; ToughSystem 2.0 case; Tool Connect chip (DCE042 included); owner's manual
• Crimping Capacity: #8 - 600 MCM Cu; #8 - 350 MCM Al
• Die Compatibility: Accepts DeWalt U-type dies (sold separately)
• Head Rotation: 180 degree pivoting head
• Software: Crimp Connect (onboard intelligence and reporting)
• LED: Integrated LED interface and bright LED ring
• Crimp Classification: cULus-classified crimps with compatible connectors (see user manual for compliant dies/connectors)
• Manual Release: Easily accessible manual release trigger for re-alignment mid-crimp
• Weight: 21 lbs
• Dimensions: 23.06 x 7.81 x 15.38 in
• Country of Origin: United States (tool only; made with global materials)
