DeWalt 7448SD1PWR SBD 7448SD1-PWR POWER-STUD+ SD1 3/4

Product Description

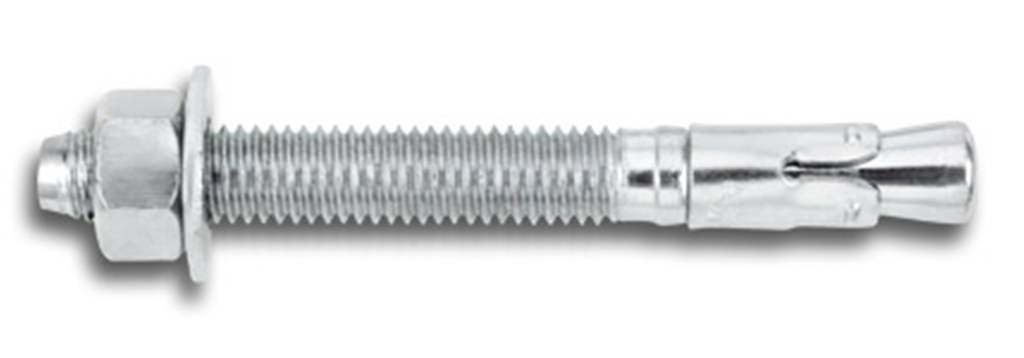

The DeWalt 7448SD1PWR is a versatile wedge expansion anchor, designed for reliable performance in both cracked and untracked concrete. It is suitable for base materials such as normal-weight concrete and sand-lightweight concrete, as well as concrete over steel deck and grouted concrete masonry. The anchor features a zinc-plated carbon steel body and comes with a nut and washer. This product is engineered to ensure secure anchoring in various applications.

• Fully threaded for consistent performance in all concrete types.
• Anchor allows for follow-up expansion even after initial setting.
• Compatible with standard fixture holes for easy installation.

Product Highlights

Ideal for structural connections, this anchor is perfect for beam and column anchorage, seismic and wind load applications, and interior uses in low corrosion environments.

Product Information

Standard Information

• Brand: DeWalt
• Manufacturer: Powers Fasteners

Technical Specifications

• Material: Carbon Steel
• Finish: Zinc
• Length: 8.5 inches
• Diameter: 3/4 inches
• Thread Size: 3/4-10
• Tensile Strength: 9075 lb
• Shear Strength: 12685 lb
• Minimum Embedment Depth: 3-3/8 inches
