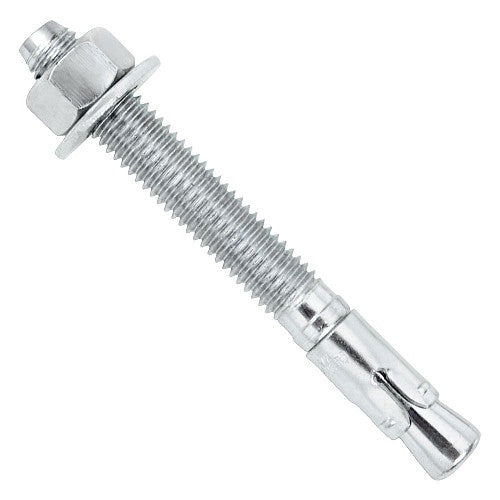

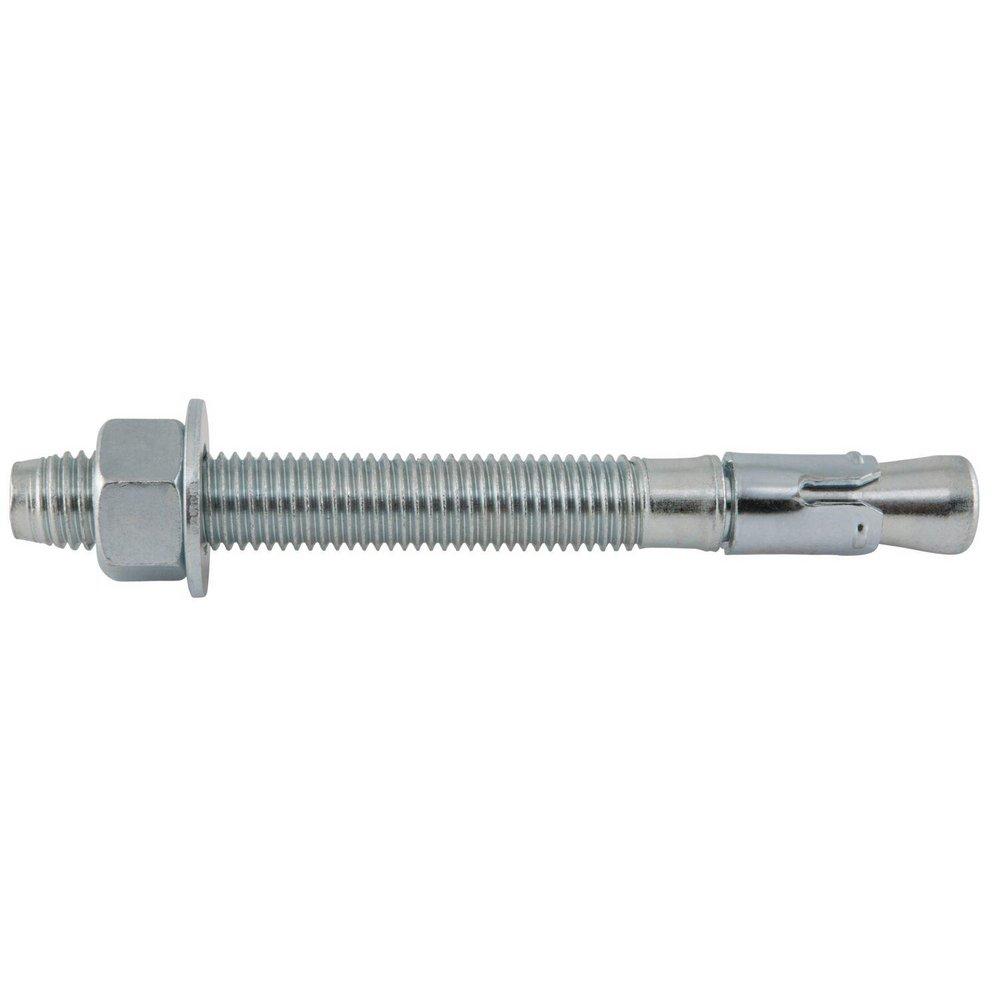

Dewalt 7446SD1-PWR Power-Stud+ SD1 Wedge Expansion Anchor 3/4 in. x 7 in. (20/Box)

Product Description

The DEWALT 7446SD1-PWR Power-Stud+ SD1 anchor is a fully threaded, torque-controlled, wedge expansion anchor designed for consistent performance in cracked and uncracked concrete. It is suitable for normal-weight concrete, sand-lightweight concrete, concrete over steel deck, and grouted concrete masonry. The anchor features a zinc plated carbon steel body and expansion clip. Nut and washer are included.

• Anchor can be installed through standard fixture hole
• Anchor design allows for follow-up expansion after setting under tensile loading
• Consistent performance in high and low strength concrete

Product Highlights

This wedge expansion anchor is designed for structural connections, safety-related attachments, and tension zone applications.

Product Information

Standard Information

• Brand: DEWALT
• Manufacturer Part Number: 7446SD1-PWR
• Country of Origin: Unknown

Technical Specifications

• Anchor Diameter: 3/4"
• Length: 7"
• Thread Length: 4-1/2"
• Thread Size: 3/4"-10
• Material: Carbon Steel
• Finish: Zinc Plated
• Wedge Anchor Type: Expansion Wedge Anchor
• Seismic Approved: Yes
• ICC Approved for Cracked Concrete: Yes
• Pack Qty: 20
• Thread Type: Coarse
• Material Grade: Medium Carbon
• Anchor Material: Steel
• Fastener Finish: Zinc Plated
• Min. Embedment: 3 3/8 in
• Nut Width: 1.125 in
• Washer Outside Diameter: 1.4688 in
• Ultimate Shear (Lb.): 12,685 lb
• Embedment In Concrete: 3 3/8 in
• Ultimate Pullout (Lb.): 7,860 lb
• Ultimate Tension (Lbs.): 7,860 lb
• ICC Approved for Un-Cracked Concrete: Yes
• Ultimate Shear in 3000 PSI Concrete (Lb.): 12,685 lb
• Ultimate Shear in 4000 PSI Concrete (Lb.): 12,685 lb
• Ultimate Tension in 3000 PSI Concrete (Lb.): 7,860 lb
• Ultimate Tension in 4000 PSI Concrete (Lb.): 9,075 lb
