DeWalt 7444SD1PWR SBD 7444SD1-PWR POWER-STUD+ SD1 3/4

Product Description

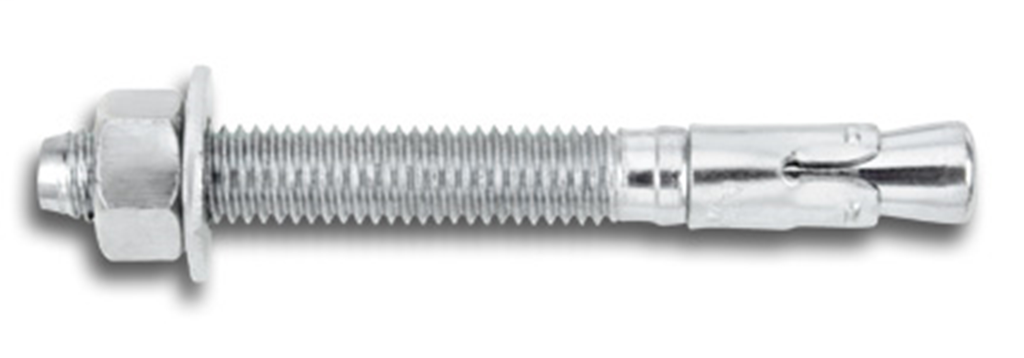

The DeWalt 7444SD1PWR is a fully threaded, torque-controlled anchor designed for reliable performance in both cracked and untracked concrete. This power-stud+ SD1 anchor works well in various base materials, including normal-weight concrete, sand-lightweight concrete, concrete over steel deck, and grouted concrete masonry. Constructed from zinc-plated carbon steel, it includes an expansion clip, nut, and washer for enhanced durability and ease of installation.

• Fully threaded and torque-controlled design
• Suitable for cracked and untracked concrete
• Includes nut and washer

Product Highlights

This anchor allows for follow-up expansion after installation and is suitable for diverse applications such as seismic and wind loading, safety-related attachments, and pipe supports.

Product Information

Standard Information

• Brand: DeWalt
• MPN: 7444SD1PWR

Technical Specifications

• Length: 6-1/4 inches
• Diameter: 3/4 inch
• Material: Zinc plated carbon steel
• Thread Size: 3/4-10
• Shear Strength: 12685 lb
• Applications: Beam and column anchorage, cable trays, fire sprinklers
• Minimum Embedment Depth: 3-3/8 inches
• Packaging Quantity: 20/box
