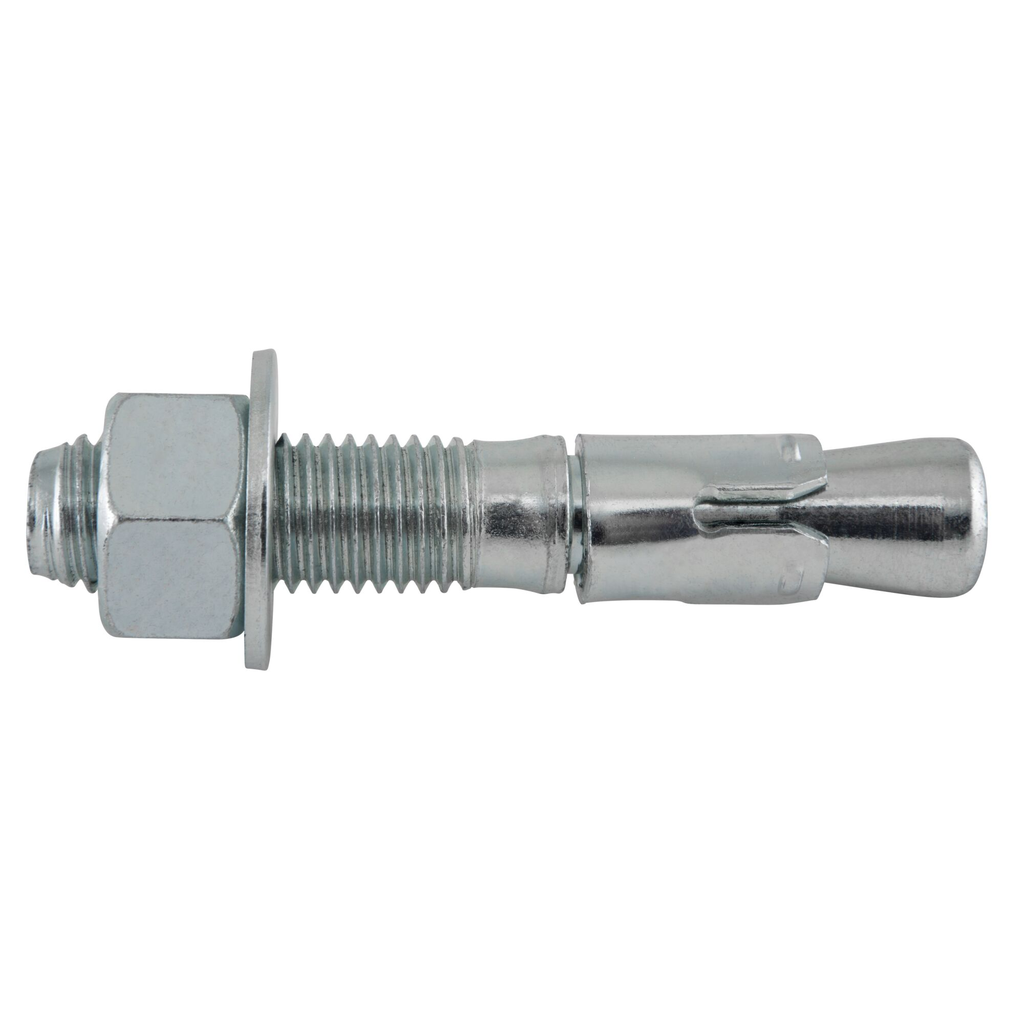

DeWalt 7440SD1PWR Power-Stud+ SD1 3/4 Wedge Expansion Anchor

Product Description

The DeWalt 7440SD1PWR Power-Stud+ SD1 is a wedge expansion anchor designed for use in various concrete applications. This product is useful in both cracked and uncracked concrete, offering reliable performance with a fully threaded and torque-controlled design. Suitable materials include normal-weight concrete, sand-lightweight concrete, and concrete over steel decks. It features a zinc-plated carbon steel body with an expansion clip, providing durability and strength. The package includes a nut and washer for installation.

• Designed for high performance in different concrete types.
• Fully threaded for consistent attachment.
• Includes nut and washer.

Product Highlights

This anchor is ideal for various structural connections, such as beam and column anchorage and supports for fire sprinklers. Its design allows for follow-up expansion under tensile loading.

Product Information

Standard Information

• Brand: DeWalt
• MPN: 7440SD1-PWR

Technical Specifications

• Length: 4-1/4 inches
• Diameter: 3/4 inches
• Material: Steel
• Weight: 0.62 lb
• Tensile Strength: 9075 lb
• Shear Strength: 12685 lb
• Minimum Embedment Depth: 3-3/8 inches
• Thread Size: 3/4-10 UNC
