DeWalt 7438SD1PWR SBD 7438SD1-PWR Power-Stud SD1 5/8

Product Description

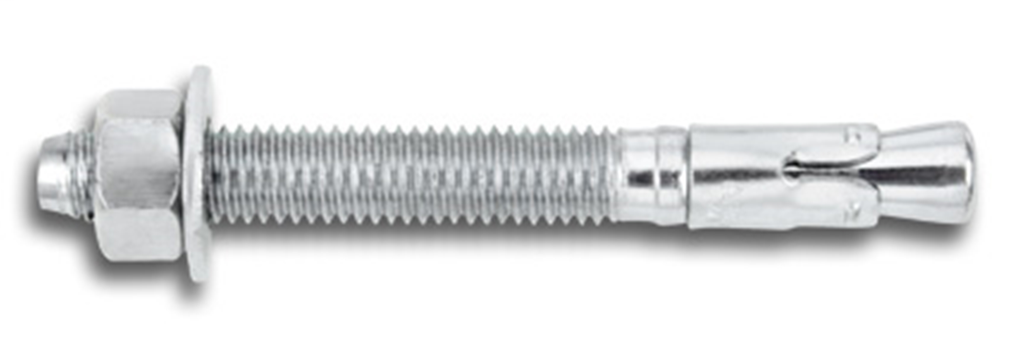

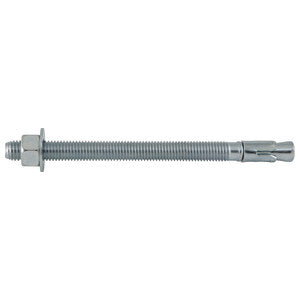

The DeWalt 7438SD1PWR Power-Stud+ SD1 anchor is a robust solution for fastening in cracked and untracked concrete. This torque-controlled wedge expansion anchor is designed for reliable performance across a range of base materials including normal-weight concrete, sand-lightweight concrete, and grouted concrete masonry. Constructed from zinc plated carbon steel, this anchor ensures strength and durability under various conditions. Each pack includes a nut and washer for added convenience.

• Torque-controlled design for secure fastening
• Suitable for various concrete types
• Includes nut and washer for complete installation

Product Highlights

Ideal for structural connections and applications exposed to seismic and wind load.

Product Information

Standard Information

• Brand: DeWalt
• Manufacturer: Powers Fasteners

Technical Specifications

• Length: 8-1/2 inches
• Diameter: 5/8 inches
• Material: Steel
• Thread Size: 5/8-11
• Thread Length: 6-1/2 inches
• Tensile Strength: 6285 lb
• Shear Strength: 6815 lb
• Minimum Embedment Depth: 2-3/4 inches
