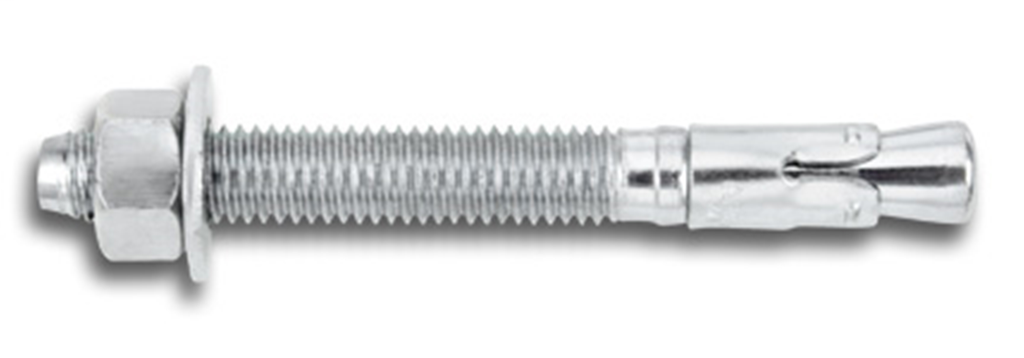

DeWalt 7436SD1-PWR SBD 7436SD1-PWR Power-Stud+ SD1 5/8

Product Description

The DeWalt 7436SD1-PWR is a power-stud+ SD1 anchor designed for effective use in various concrete applications. This anchor provides a fully threaded, torque-controlled, wedge expansion mechanism suitable for both cracked and untracked concrete. It performs reliably in several base materials, including normal-weight concrete, sand-lightweight concrete, concrete over steel deck, and grouted concrete masonry. The anchor’s construction features zinc plated carbon steel for enhanced durability, and it includes a matching nut and washer for installation.

• Consistent performance in high and low-strength concrete.
• Anchor can be installed through standard fixture holes.
• Length ID code stamped on anchor head for easy identification.

Product Highlights

This anchor is suitable for structural connections, offering high shear and tensile strength, making it ideal for various assembly tasks.

Product Information

Standard Information

• Brand: DeWalt
• Manufacturer: Powers Fasteners

Technical Specifications

• Finish: Zinc
• Length: 7 inches
• Diameter: 5/8 inch
• Material: Steel
• Thread Size: 5/8-11
• Shear Strength: 6815 lb
• Tensile Strength: 6285 lb
• Minimum Embedment Depth: 2-3/4 inches
