DeWalt 7434SD1PWR SBD 7434SD1-PWR POWER-STUD+ SD1 5/8

Product Description

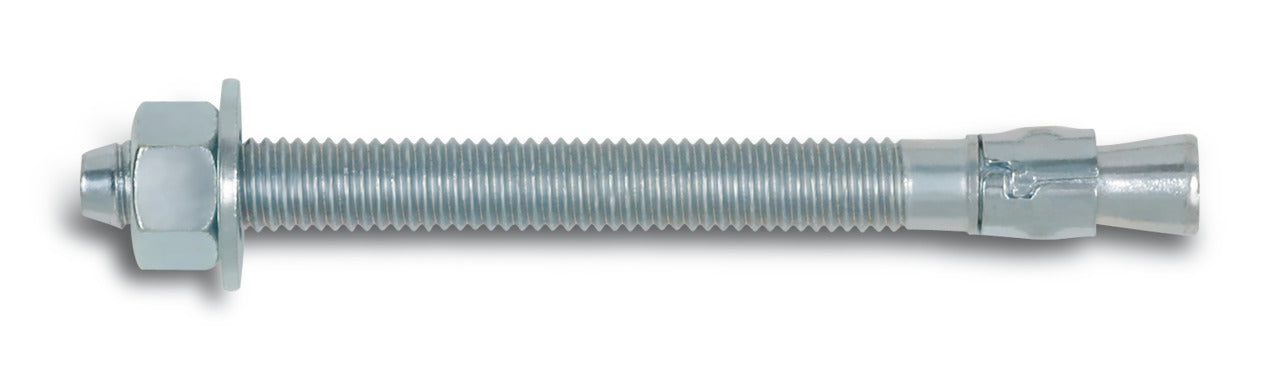

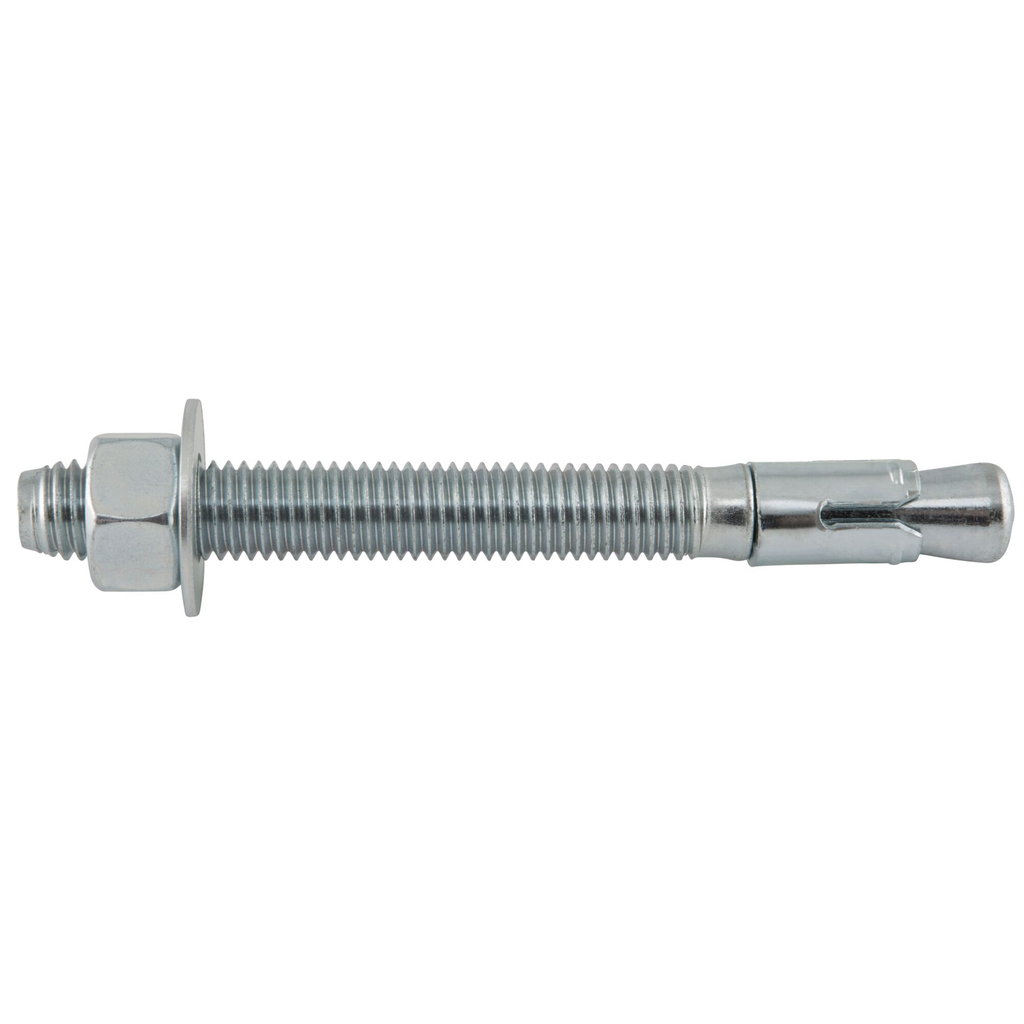

The DeWalt 7434SD1PWR is a wedge expansion anchor designed for reliable performance in various concrete applications. This fully threaded, torque-controlled anchor excels in both cracked and uncracked concrete. It can be used with normal-weight concrete, sand-lightweight concrete, concrete over steel deck, and grouted concrete masonry. The anchor features a zinc-plated carbon steel body, ensuring durability. Included with the anchor are a nut and washer for easy installation.

• Consistent performance in high and low strength concrete
• Nominal drill bit size is equivalent to the anchor diameter
• Anchor installation is possible through standard fixture holes

Product Highlights

The DeWalt 7434SD1PWR anchor meets various standards for anchor applications, ensuring safety and compliance in different construction environments.

Product Information

Standard Information

• Brand: DeWalt
• MPN: 7434SD1PWR

Technical Specifications

• Type: Fully Threaded
• Finish: Zinc
• Length: 6 Inches
• Weight: 0.544 lb
• Package Quantity: 1
• Diameter: 5/8 Inches
• Material: Steel
• Thread Size: 5/8-11
• Min. Embedment Depth: 2-3/4 Inches
• Ultimate Tension Strength: 5,440 lb
• Ultimate Shear Strength: 6,815 lb
• Country of Origin: China
• Standard Packaging Quantity: 25/Box
