DeWalt 7433SD1-PWR SBD 7433SD1-PWR POWER-STUD+ SD1 5/8

Product Description

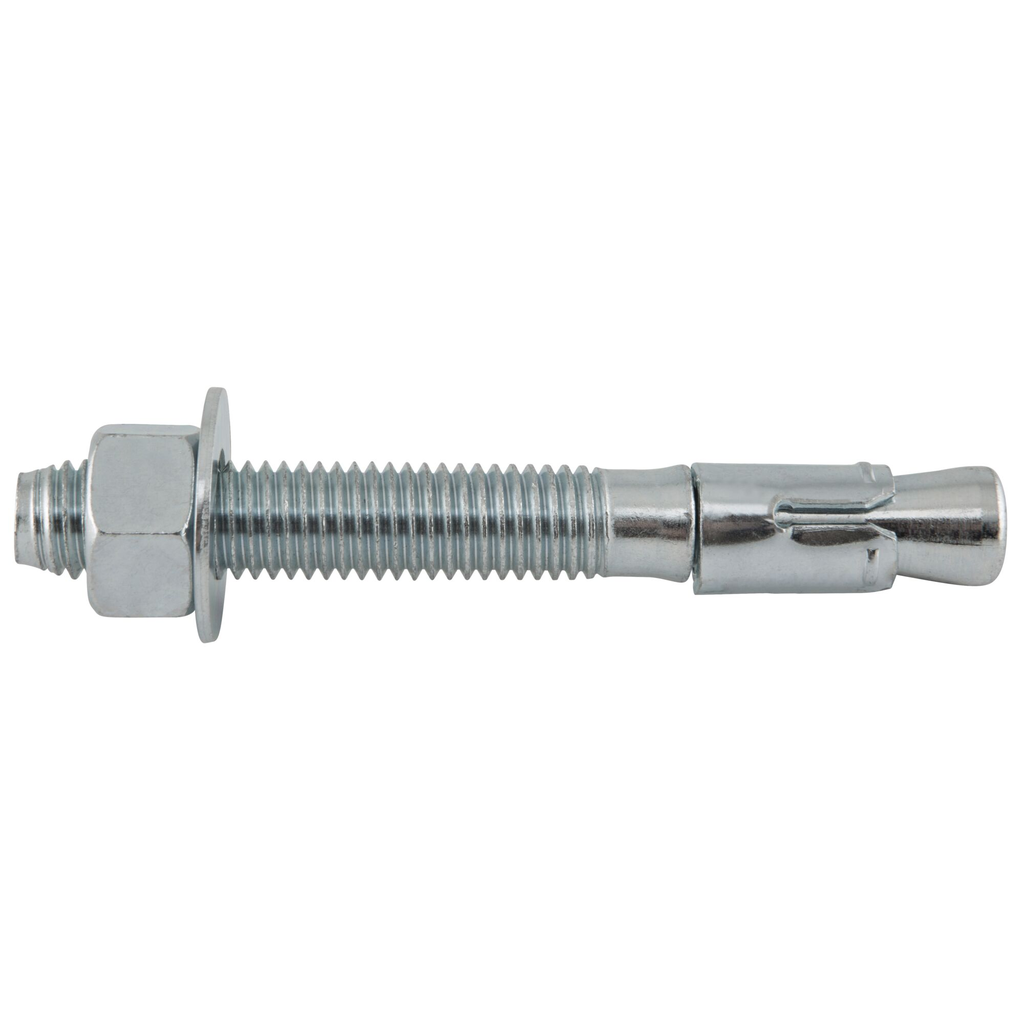

The DeWalt 7433SD1-PWR Power-Stud+ SD1 anchor is a fully threaded, torque-controlled, wedge expansion anchor designed for reliable performance in both cracked and uncracked concrete. This anchor is suitable for various base materials including normal-weight concrete, sand-lightweight concrete, concrete over steel decks, and grouted concrete masonry. Crafted with a zinc plated carbon steel body, the product includes a nut and washer for complete installation.

• Consistent performance in high and low strength concrete.
• Nominal drill bit size is the same as the anchor diameter.
• Anchor can be installed through standard fixture holes.

Product Highlights

This product is ideal for seismic and wind loading applications.

Product Information

Standard Information

• Brand: DeWalt
• Manufacturer: Powers Fasteners

Technical Specifications

• Type: Fully Threaded
• Material: Steel
• Diameter: 5/8 in
• Length: 5 in
• Thread Size: 5/8-11
• Thread Length: 3 in
• Weight: 0.472 lb
• Shear Strength: 6815 lb
• Tensile Strength: 5440 lb
• Minimum Embedment Depth: 2-3/4 in
