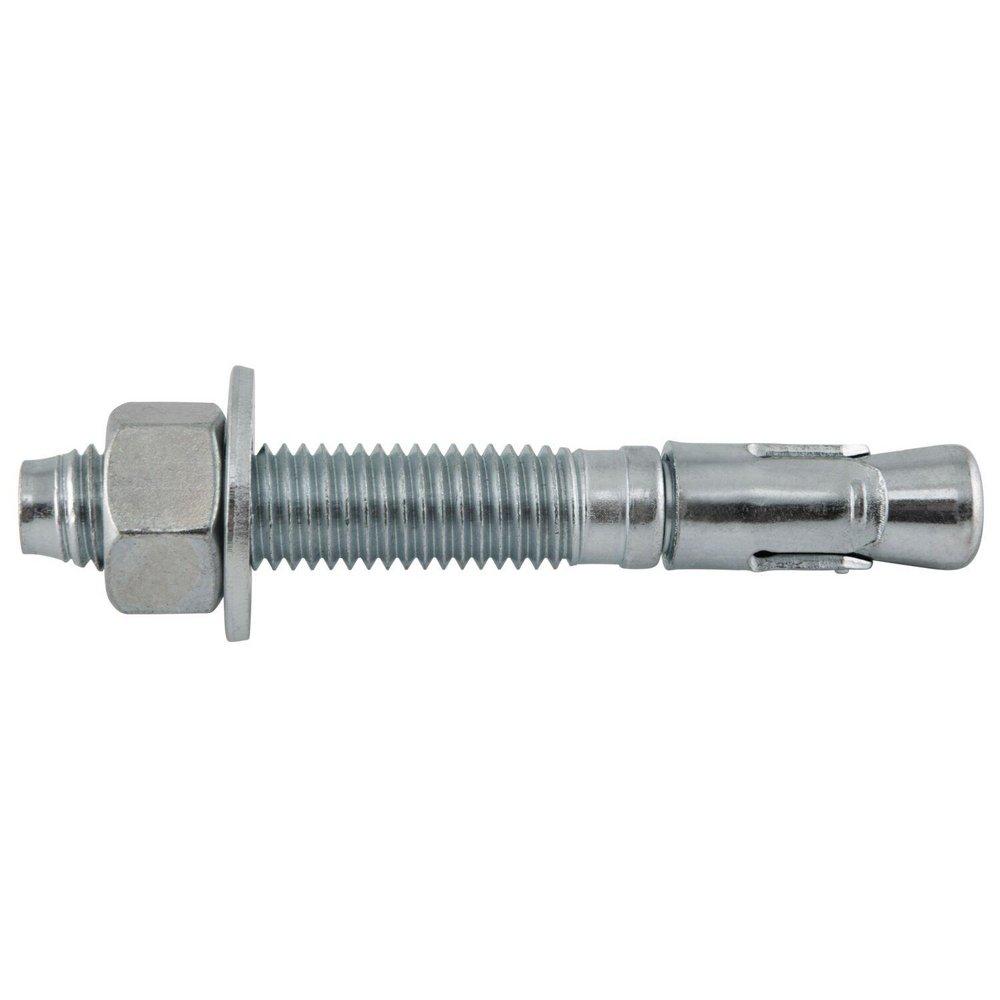

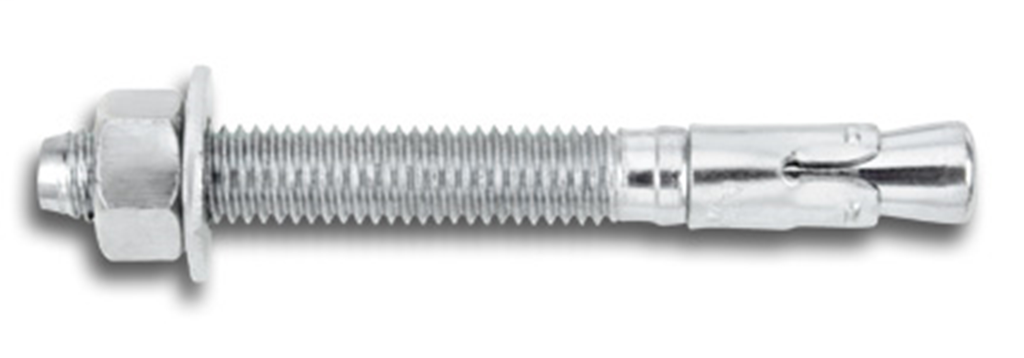

DeWalt 7432SD1PWR Power-Stud+ SD1 Wedge Anchor 5/8 x 4-1/2 Inch Zinc Plated

Product Description

The DeWalt 7432SD1PWR Power-Stud+ SD1 anchor is a fully threaded, torque-controlled, wedge expansion anchor designed for reliable performance in both cracked and uncracked concrete. This anchor is suitable for various base materials, including normal-weight concrete, sand-lightweight concrete, and grouted concrete masonry. The zinc-plated carbon steel body offers durability and resistance to corrosion.

• Includes nut and washer for installation.
• Installable through standard fixture holes.
• Consistent performance in various concrete strengths.

Product Highlights

This wedge anchor measures five eighths of an inch in diameter and four and one half inches in length. It features a design that allows for follow-up expansion after installation, ensuring stability under tensile loading.

Product Information

Standard Information

• Brand: DeWalt
• MPN: 7432SD1PWR

Technical Specifications

• Type: Fully threaded
• Material: Zinc plated carbon steel
• Thread size: 5/8-11
• Length: 4-1/2 inches
• Diameter: 5/8 inches
• Minimum Embedment Depth: 2-3/4 inches
• Ultimate Tension: 4960 lbs
• Ultimate Shear: 6220 lbs
