Product Description

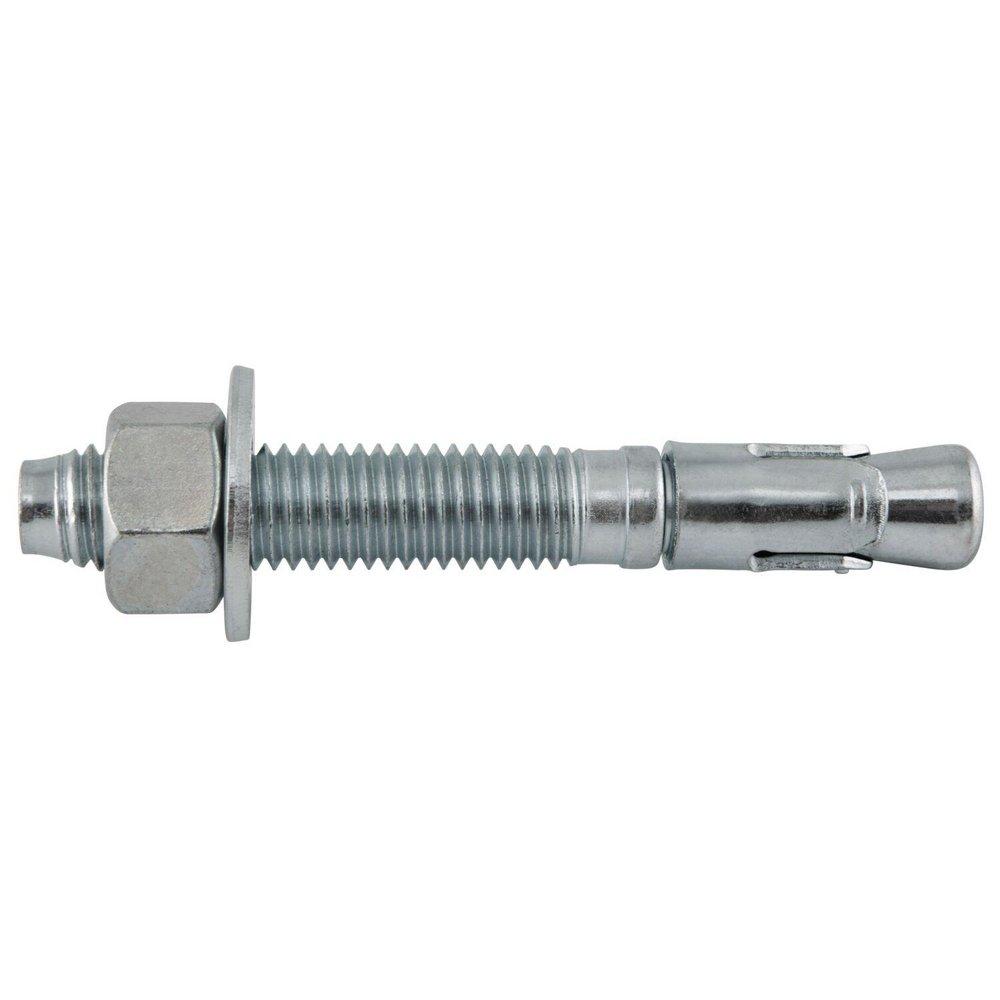

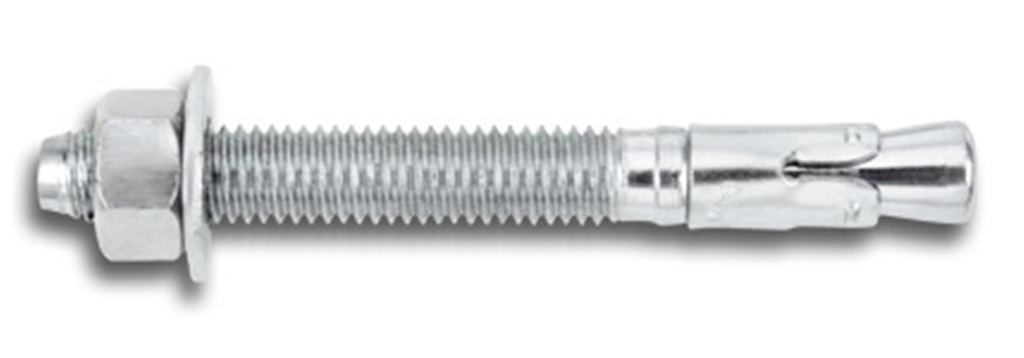

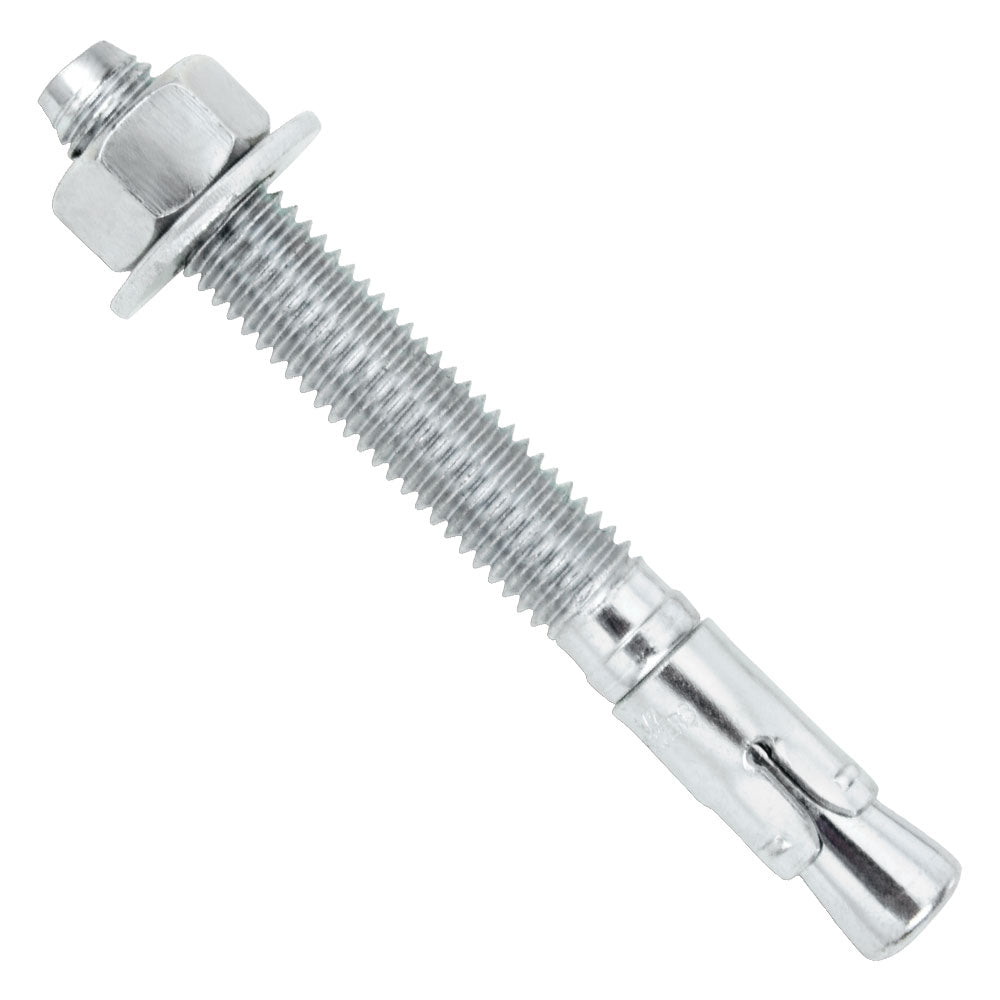

The DEWALT 7432SD1-PWR Power-Stud+ SD1 anchor is a fully threaded, torque-controlled, wedge expansion anchor designed for consistent performance in cracked and uncracked concrete. It is suitable for normal-weight concrete, sand-lightweight concrete, concrete over steel deck, and grouted concrete masonry. Manufactured with a zinc plated carbon steel body and expansion clip, this anchor provides premium performance for applications like beam and column anchorage, seismic and wind loading, and pipe supports. Nut and washer are included.
- Anchor design allows for follow-up expansion after setting under tensile loading

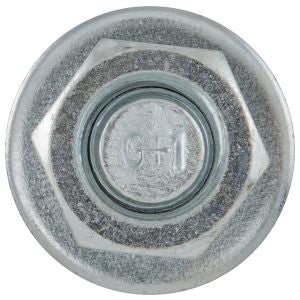

- Length ID code and identifying marking stamped on head of each anchor
- Anchor can be installed through standard fixture holes
Product Highlights
Provides consistent, torque-controlled performance in cracked and uncracked concrete, featuring a durable zinc plated carbon steel construction.
Product Information
Standard Information
-
Brand: DEWALT
-
Manufacturer Part Number: 7432SD1-PWR
-
Country of Origin: USA
Technical Specifications
-
Product Type: Wedge Expansion Anchor
-
Type: Fully Threaded
-
Finish: Zinc
-
Overall Length: 4-1/2 Inch
-
Diameter: 5/8 Inch
-
Material: Steel
-
Sub Brand: Power-Stud®+ SD1
-
Thread Size: 5/8-11
-
Thread Type: UNC
-
Applications: For Beam and Column Anchorage, Seismic and Wind Loading, Safety-Related Attachments, Cable Trays and Strut, Pipe Supports, Fire Sprinklers
-
Thread Length: 2-1/2 in
-
Shear Strength: 6815 lb
-
Tensile Strength: 5440 lb
-
Package Quantity: 25/Box
-
Minimum Embedment Depth: 2-3/4 in
-
Seismic Approved: Yes
-
Max. Work Thickness: 2-3/4"
-
ICC Approved for Cracked Concrete: Yes
-
Includes: Nut and Washer
-
Ultimate Tension in 4000 PSI Concrete (Lb.): 4,500
-
Ultimate Tension (Lbs.): 4,155
-
Ultimate Tension in 3000 PSI Concrete (Lb.): 4,155
-
Ultimate Shear (Lb.): 4,195
-
Ultimate Shear in 4000 PSI Concrete (Lb.): 4,195
-
Agency Compliance: American Concrete Institute 355.2, ICC-ES Acceptance Criteria AC-193, ICC-ES ESR-2818 Category 1 Cracked and Uncracked Concrete, ICC-ES ESR-2966 Concrete Masonry Units (CMU)
-
Meets/Exceeds: Florida Building Code, FM and UL Approved, IBC, IRC 2006 Concrete and Masonry, IBC, IRC 2009 Concrete, ICB, IRC 2003 Concrete and Masonry
-
ICC Approved for Un-Cracked Concrete: Yes
-
Ultimate Pullout (Lb.): 4,155
-
Ultimate Shear in 3000 PSI Concrete (Lb.): 4,195
-
Thread: Coarse
-
Drill Size: 5/8 in
-
Head Type: Hex
-
Series: Power-Stud®
