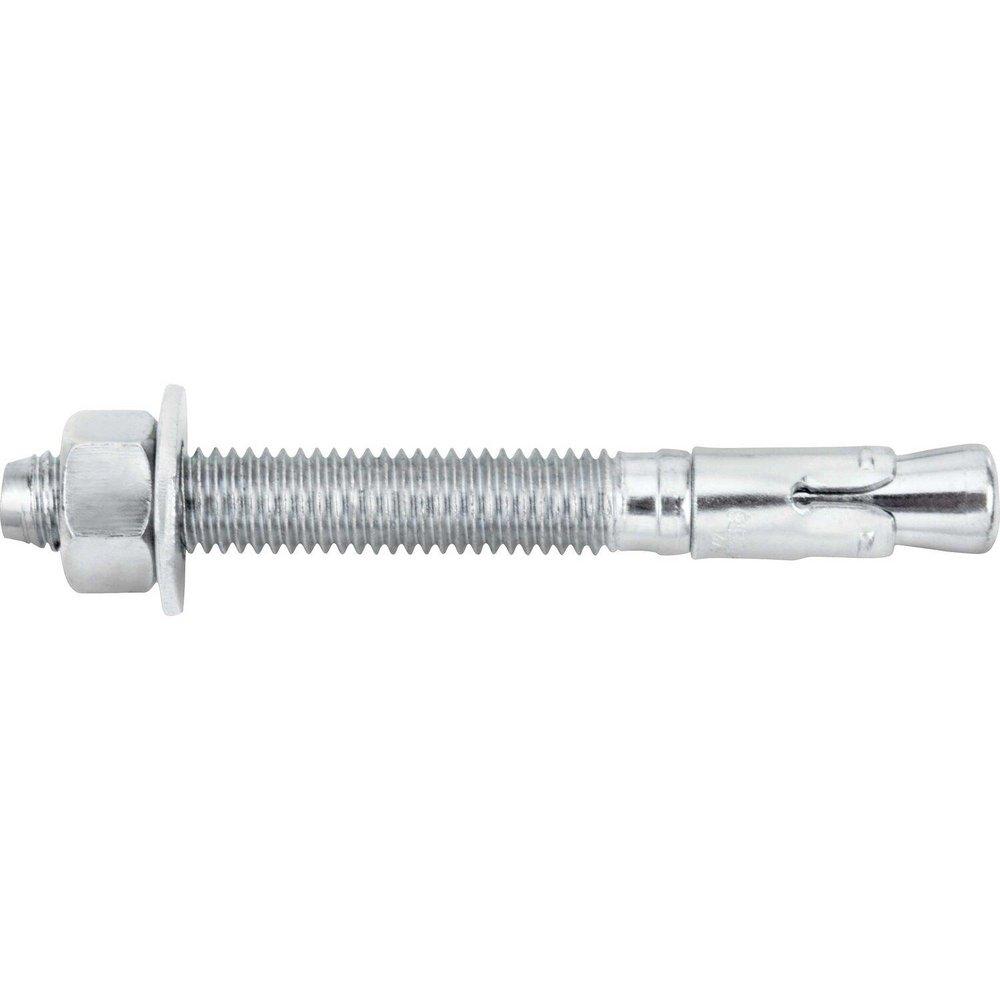

DEWALT 7423SD1-PWR Power-Stud+ SD1 4-1/2 in. Carbon Steel Wedge Expansion Anchor

Product Description

DEWALT 7423SD1-PWR is a Power-Stud+ SD1 four and one-half inch carbon steel wedge expansion anchor. This product is designed for securing fixtures in concrete and masonry applications. It ensures reliable performance in various concrete conditions.

• Anchor can be installed through a standard fixture hole.
• Suitable for high and low strength concrete.
• Comes with a nut and washer.

Product Highlights

DEWALT 7423SD1-PWR is made from carbon steel and has a zinc-plated finish. It meets several compliance standards for cracked and uncracked concrete. This expansion anchor is ideal for construction and HVAC applications.

Product Information

Standard Information

• Anchor Material: Steel
• Max Work Thickness: One and three-quarters inches

Technical Specifications

• Anchor Diameter: One-half inch
• Thread Size: One-half inch - thirteen
• Ultimate Tension in 4000 PSI Concrete: Four thousand five hundred lbs
• Ultimate Pullout in 3000 PSI Concrete: Four thousand one hundred fifty-five lbs
• Included Items: Nut and Washer
• Embedment Depth: Two and one-quarter inches
• ICC Approved: Yes, for both cracked and uncracked concrete
• Meets Codes: Florida Building Code, FM and UL Approved
