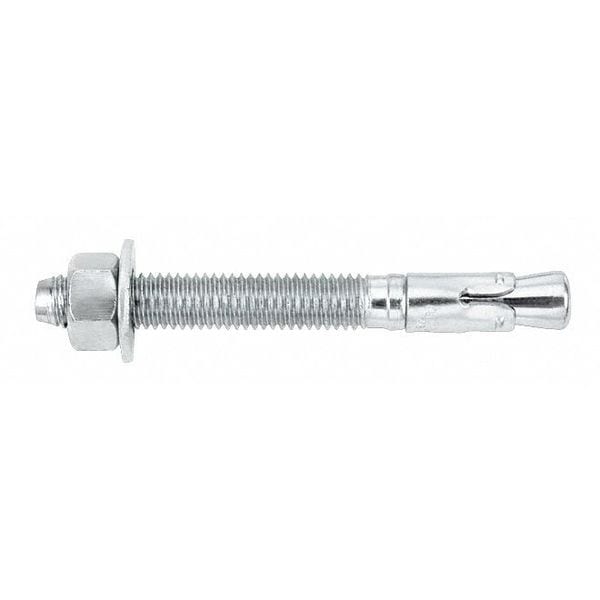

DeWalt 7422SD1 Wedge Expansion Anchor 1/2 x 3-3/4 in

Product Description

The DeWalt 7422SD1 is a wedge expansion anchor made from zinc-plated carbon steel, designed for secure fastening in various concrete types. Ideal for both cracked and uncracked concrete, this anchor offers reliable performance while ensuring ease of installation and optimal load handling.

• Fully threaded and torque-controlled for consistent installation.
• Nut and washer are included for convenient use.
• Compatible with normal-weight and lightweight concrete, as well as grouted masonry.

Product Highlights

The anchor can easily be installed through standard fixture holes, allowing for flexibility in application. It is designed to expand after being set under tensile loads, ensuring strong grip and stability, suitable for a wide range of construction tasks.

Product Information

Standard Information

• Brand: DeWalt
• Manufacturer: DeWalt

Technical Specifications

• Diameter: 1/2 in
• Length: 3-3/4 in
• Material: Carbon Steel
• Load Rating: 7955 lb Tension, 4195 lb Shear
• Minimum Embedment Depth: 3-3/4 in
• Thread Size: 2 in L
• Thread Type: UNC
• Torque Rating: 40 ft-lb
• Standards/Certifications: ICC-ES ESR-2818, UL listed, FM approved
