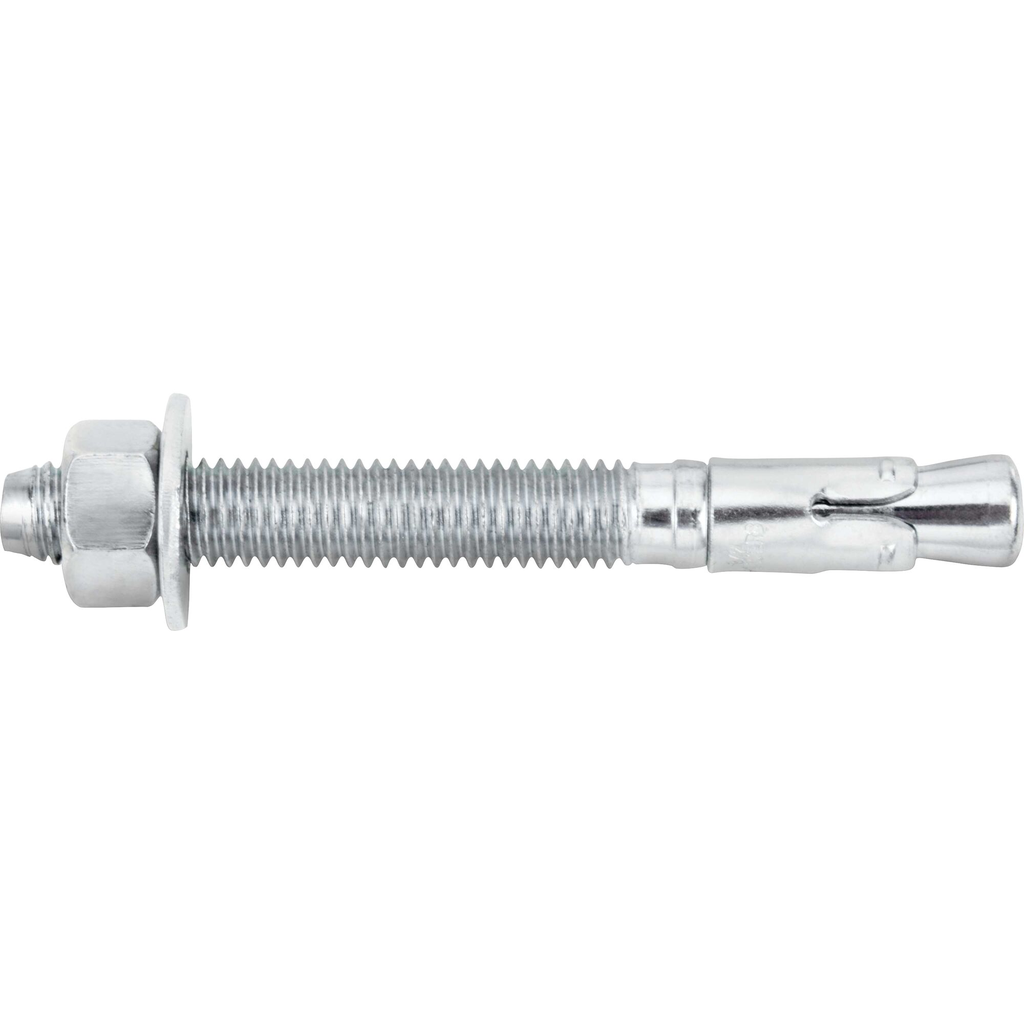

DeWalt 7420SD1-PWR Power-Stud+ SD1 1/2-13 2-3/4 Inch Wedge Anchor

Product Description

The DeWalt 7420SD1-PWR Power-Stud+ SD1 is a fully threaded, torque-controlled, wedge expansion anchor. It is designed for reliable use in both cracked and uncracked concrete. This anchor is suitable for a variety of base materials, including normal-weight concrete, sand-lightweight concrete, concrete over steel deck, and grouted concrete masonry.

• Manufactured with a zinc plated carbon steel body
• Includes nut and washer for secure installation
• Provides consistent performance in high and low strength concrete

Product Highlights

The Power-Stud+ SD1 wedge anchor offers excellent expansion capabilities, ensuring the anchor remains secure under tension and provides optimal holding strength.

Product Information

Standard Information

• Brand: DeWalt
• Manufacturer: Powers Fasteners

Technical Specifications

• MPN: 7420SD1-PWR
• Type: Fully Threaded
• Length: 2-3/4 inches
• Diameter: 1/2 inch
• Material: Steel
• Finish: Zinc
• Weight: 0.187 lb
• Thread Size: 1/2-13 UNC
• Shear Strength: 4195 lb
• Tensile Strength: 4500 lb
• Minimum Embedment Depth: 2-1/4 inches
• Applications: Suitable for structural connections, seismic and wind loading, and cable trays
