Product Description

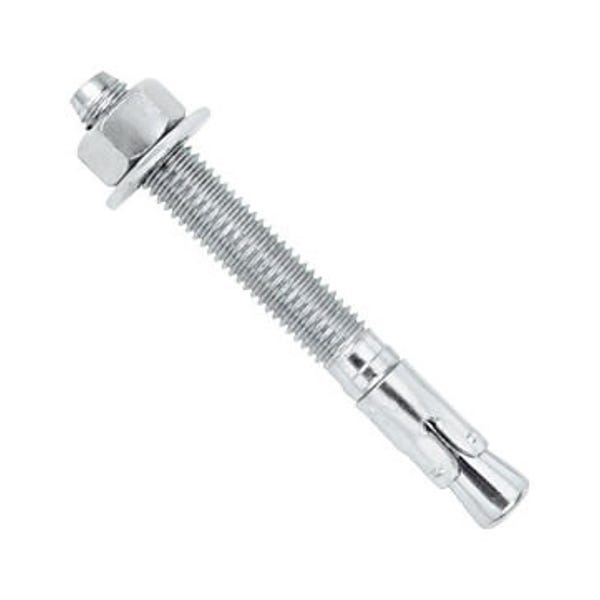

The Dewalt 7420SD1 is a wedge expansion anchor designed for use in various concrete types. This anchor measures half an inch in diameter and two and three-quarters inches in length. It is manufactured from zinc-plated carbon steel, providing durability and strength suitable for demanding applications.
- Torque-controlled installation ensures consistent performance.
- Suitable for cracked and uncracked concrete configurations.
- Included nut and washer for complete assembly.
Product Highlights
This anchor is built for reliable performance across different base materials such as normal-weight and sand-lightweight concrete, making it versatile for different construction tasks.
Product Information
Standard Information
-
Brand: Dewalt
-
Product Type: Power-Stud SD1
Technical Specifications
-
Diameter: 1/2 in
-
Length: 2-3/4 in
-
Shipping Weight: 10.000 lbs
-
Load Rating: 7955 lb tension, 4195 lb shear
-
Minimum Embedment Depth: 3-3/4 in
-
Torque Rating: 40 ft-lb
-
Material: Carbon steel
-
Standards/Certifications: ICC-ES ESR-2818, UL listed File No. EX1289
