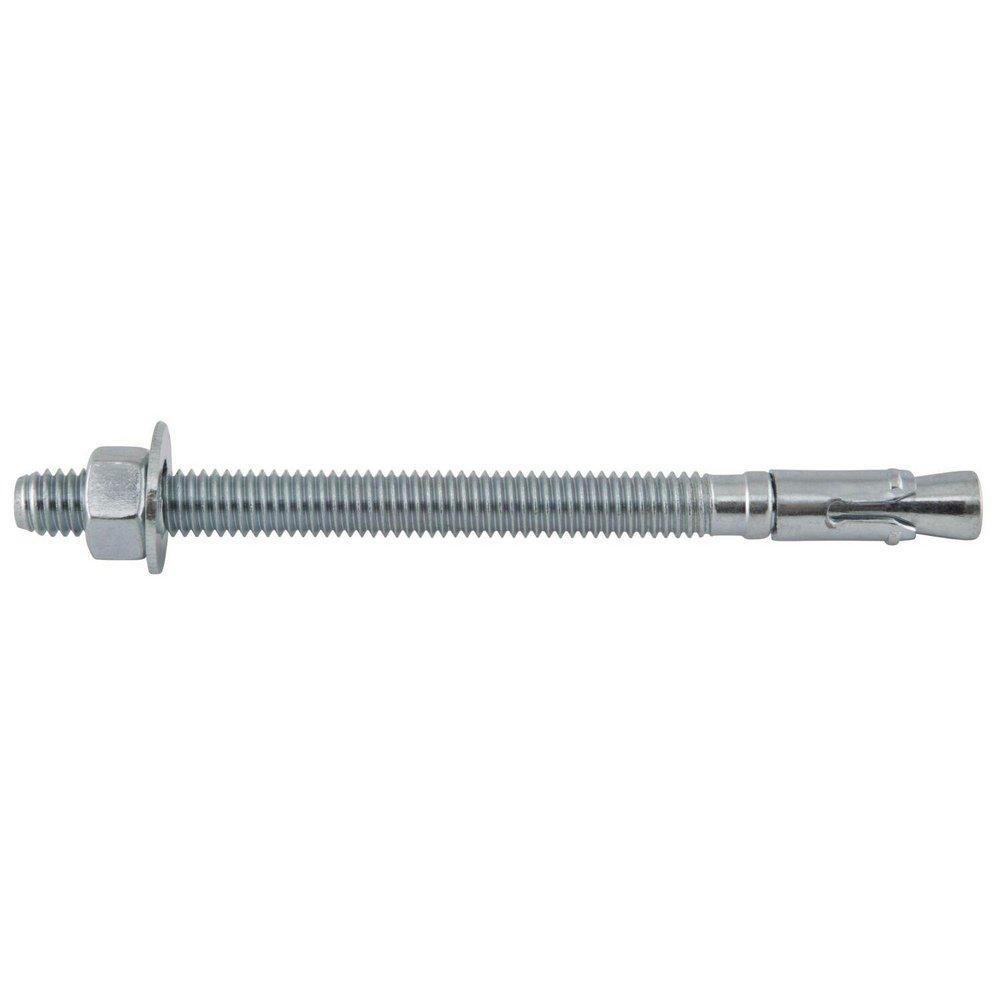

Dewalt 7416SD1-PWR Power-Stud+ SD1 5 in. Carbon Steel Wedge Expansion Anchor

Product Description

The Dewalt 7416SD1-PWR is a 5-inch carbon steel wedge expansion anchor designed for reliable performance in concrete applications. This expansion anchor can be installed through standard fixture holes, ensuring ease of use. It is suitable for high and low strength concrete and is effective in both cracked and uncracked conditions.

• Fully threaded and torque-controlled for consistent performance.
• Meets seismic approval standards.
• Includes necessary nut and washer for installation.

Product Highlights

This wedge expansion anchor is designed to expand after setting under tensile loads, providing a secure hold in various base materials. It is ideal for construction and installation projects in demanding environments.

Product Information

Standard Information

• Brand: Dewalt
• MPN: 7416SD1-PWR

Technical Specifications

• Length: 5 inches
• Anchor Diameter: 3/8 inches
• Maximum Work Thickness: 3 inches
• Thread Length: 3-5/8 inches
• Ultimate Pullout (lbs): 2,685
• Ultimate Tension in 4000 PSI Concrete (lbs): 3,100
• Ultimate Shear in 3000 PSI Concrete (lbs): 2,540
• Country of Origin: 00 - Unknown
