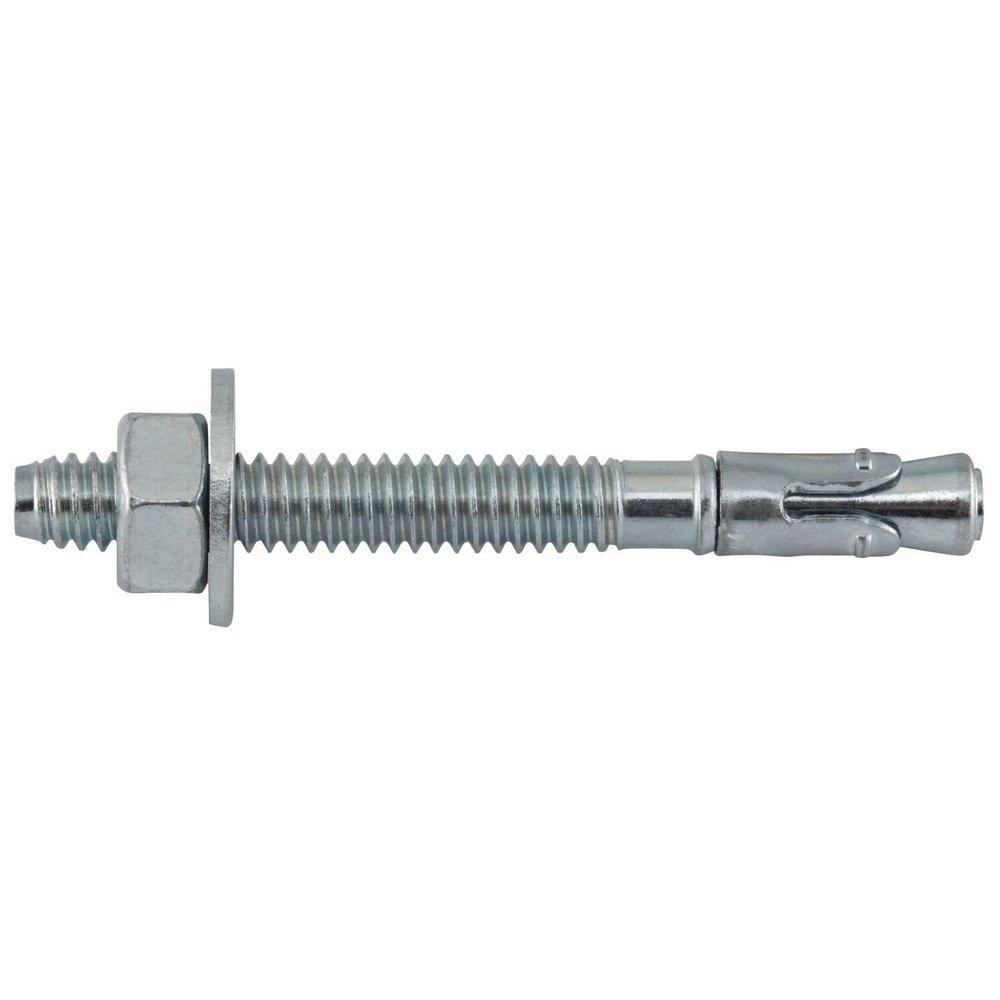

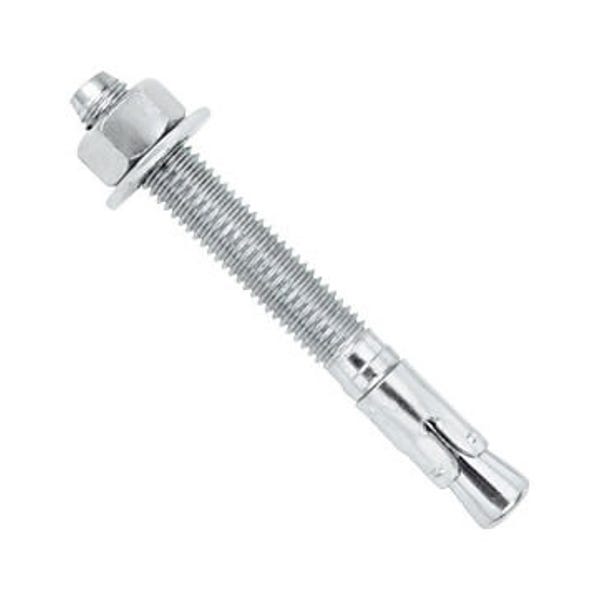

Dewalt 7402SD1-PWR Power-Stud+ SD1 2-1/4 in. Carbon Steel Wedge Expansion Anchor

Product Description

The DEWALT 7402SD1-PWR Power-Stud+ SD1 anchor is a fully threaded, torque-controlled, wedge expansion anchor designed for consistent performance in cracked and uncracked concrete. It can be installed through standard fixture holes. Suitable base materials include normal-weight concrete, sand-lightweight concrete, concrete over steel deck, and grouted concrete masonry. Nut and washer are included.

• Anchor can be installed through standard fixture hole
• Anchor design allows for follow-up expansion after setting under tensile loading
• Consistent performance in high and low strength concrete

Product Highlights

The Power-Stud+ SD1 anchor is designed for structural connections, safety attachments, and seismic and wind loading applications.

Product Information

Standard Information

• Brand: DEWALT
• Manufacturer Part Number: 7402SD1-PWR
• Country of Origin: Unknown

Technical Specifications

• UOM: EACH
• Suitable Base Materials: normal-weight concrete, sand-lightweight concrete, concrete over steel deck, and grouted concrete masonry
• Anchor Diameter: 1/4"
• Useable Length: 2-1/4"
• Thread Length: 1-1/4"
• Pack Qty: 100
• Unit Size: 100
• Pieces Per Unit: 100/BX
• Product Type: Wedge Expansion Anchor
• MPN: 7402SD1-PWR
• Product Brand: DEWALT ENGINEERED BY POWERS
• UPC: 075352775890
• Includes: Nut and washer are included
• Material: Carbon Steel
• Finish: Zinc
• Rod Size: 1/4" x 2-1/4"
• Cordless: No
• Package Quantity: 100
• Package Size: Package
• Measurement Type: Inch
• Thread: Coarse
• Anchor Material: Steel
• Wedge Anchor Type: Expansion Wedge Anchor
• Seismic Approved: Yes
• ICC Approved for Cracked Concrete: Yes
• Material Grade: Medium Carbon
• Min. Embedment: 1 1/8 in
• Fastener Finish: Zinc Plated
• Agency Compliance: American Concrete Institute 355.2, ICC-ES Acceptance Criteria AC-193, ICC-ES ESR-2818 Category 1 Cracked and Uncracked Concrete, ICC-ES ESR-2966 Concrete Masonry Units (CMU)
• Max. Work Thickness: 7/8 in
• Ultimate Shear (Lb.): 1,255 lb
• Embedment In Concrete: 1 1/8 in
• Ultimate Pullout (Lb.): 1,435 lb
• Ultimate Tension (Lbs): 1,435 lb
• ICC Approved for Un-Cracked Concrete: Yes
• Country of Origin (subject to change): China
• Ultimate Shear in 3000 PSI Concrete (Lb.): 1,255 lb
• Ultimate Shear in 4000 PSI Concrete (Lb.): 1,255 lb
• Ultimate Tension in 3000 PSI Concrete (Lb.): 1,435 lb
• Ultimate Tension in 4000 PSI Concrete (Lb.): 1,660 lb
