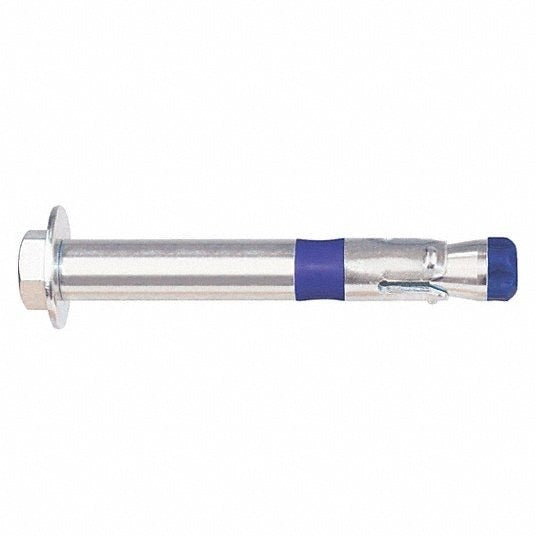

Dewalt 6913SD-PWR Power-bolt Plus Sleeve Anchor 3/8 in

Product Description

The DEWALT 6913SD-PWR is a torque-controlled, heavy duty sleeve anchor engineered for reliable fastening in both cracked and uncracked concrete. The anchor body, sleeve, cone, and expansion clip are manufactured from zinc-plated carbon steel, providing corrosion resistance suitable for interior and low-corrosion environments. A low-profile hex nut head keeps the finished installation clean and accessible. Licensed contractors and structural tradespeople use this anchor for demanding applications where consistent load performance is required across varying concrete strengths.

The 6913SD-PWR is rated for use in normal-weight concrete and sand-lightweight concrete. It is well suited for structural connections including beam and column anchorage, safety-related attachments, tension zone applications, and other interior installations where a mechanically reliable anchor point is required. The 3/8 inch nominal diameter means the required drill bit size matches the anchor diameter directly, simplifying layout and hole preparation on the job site.

Key Features

• Torque-controlled expansion delivers consistent performance in high and low strength concrete
• Compatible with cracked and uncracked concrete base materials
• Nominal drill bit size matches anchor diameter for straightforward hole preparation
• Anchor design allows follow-up expansion after setting under tensile loading
• Can be installed through standard fixture holes without oversizing
• Length ID code and identifying marking stamped on head of each anchor for easy field verification
• High shear load capacity suitable for structural and safety-critical connections

Compatibility

Designed for use as a heavy duty sleeve anchor in normal-weight concrete and sand-lightweight concrete base materials, both cracked and uncracked, in interior and low-level corrosion environments.

Installation Notes

Installation should be performed by a qualified tradesperson or licensed contractor following applicable structural and building codes. Drill the hole to the diameter matching the anchor nominal size and clear debris thoroughly before driving the anchor. Always follow the torque setting specified on the product packaging or engineering data sheet for the specific anchor length and base material. Do not exceed the rated embedment depth or apply load before the anchor is fully set.

Technical Specifications

• Anchor Diameter: 3/8 inch
• Head Style: Low Profile Hex Nut
• Material: Zinc-Plated Carbon Steel
• Base Material: Normal-Weight Concrete, Sand-Lightweight Concrete
• Package Length: 12.3 inches
• Package Width: 2.5 inches
• Package Height: 5.5 inches
• Unit of Measure: Each
• Minimum Order Quantity: 100
• UPC: 75352805153

Standard Information

• Brand: DEWALT
• Manufacturer Part Number: 6913SD-PWR
