Dewalt 6911SD-PWR Power-bolt Plus Sleeve Anchor 3/8 in

Product Description

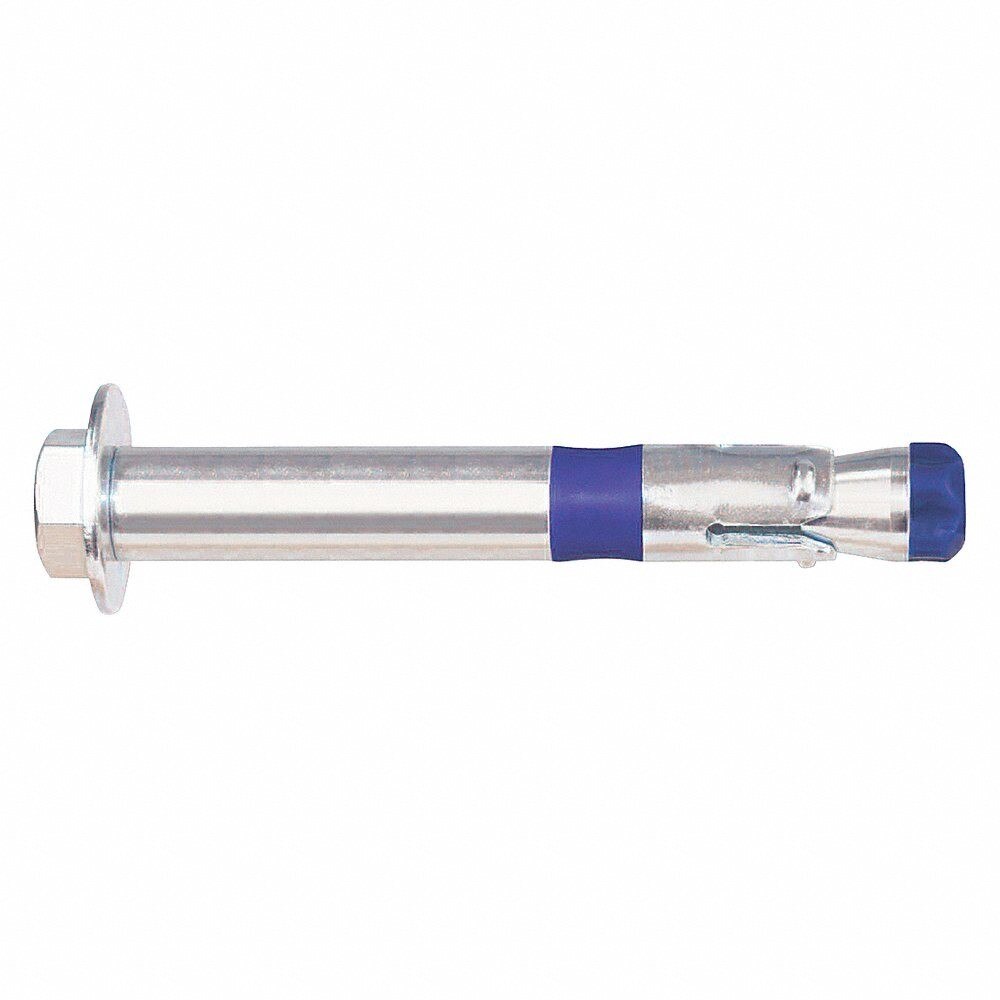

The DEWALT 6911SD-PWR is a torque-controlled, heavy duty sleeve anchor engineered for consistent load performance in both cracked and uncracked concrete. The anchor body consists of a zinc-plated carbon steel bolt, sleeve, cone, and expansion clip, finished with a low-profile hex nut head. Suitable base materials include normal-weight concrete and sand-lightweight concrete. The 3/8-inch diameter design allows installation through standard fixture holes, and the anchor features follow-up expansion capability under tensile loading, which is critical in structural and tension-zone applications. Licensed contractors and structural trade professionals are the primary installers.

This sleeve anchor is intended for use in concrete construction and renovation work requiring reliable anchoring in variable-strength base materials. Typical applications include beam and column anchorage, safety-related structural attachments, and tension-zone connections in interior environments with low corrosion exposure. The anchor is sold individually and is suited for both light structural and heavy-duty fastening tasks where confirmed load ratings in cracked concrete are required by specification or code.

Key Features

• Torque-controlled expansion provides consistent performance in high and low strength concrete
• Rated for use in cracked and uncracked normal-weight and sand-lightweight concrete
• Nominal drill bit size matches anchor diameter, simplifying layout and installation
• Installs through standard fixture holes without oversized clearance required
• Follow-up expansion under tensile loading maintains holding strength after initial set
• Length ID code and identifying marking stamped on the head of each anchor for field verification
• Low-profile hex nut head for clean finished appearance in structural connections

Compatibility

Designed as an OEM-style heavy duty sleeve anchor for use in normal-weight concrete and sand-lightweight concrete applications requiring cracked and uncracked concrete performance ratings.

Installation Notes

Installation should be performed by a licensed contractor or qualified structural trade professional familiar with anchor systems and applicable building codes. Drill the hole to the diameter matching the anchor size using a carbide-tipped bit, and clear all debris before setting the anchor. Torque the hex nut to the manufacturer-specified value per the published load table for the base material and embedment depth. Do not over-torque, as this can compromise the expansion mechanism and reduce load capacity.

Technical Specifications

• Anchor Diameter: 3/8 inches
• Head Type: Hex Nut
• Material: Zinc-plated carbon steel
• Base Material Compatibility: Normal-weight concrete, sand-lightweight concrete
• Package Length: 12.3 inches
• Package Width: 2.5 inches
• Package Height: 5.5 inches
• Unit of Measure: Each
• Minimum Order Quantity: 100
• UPC: 75352805115

Standard Information

• Brand: DEWALT
• Manufacturer Part Number: 6911SD-PWR
