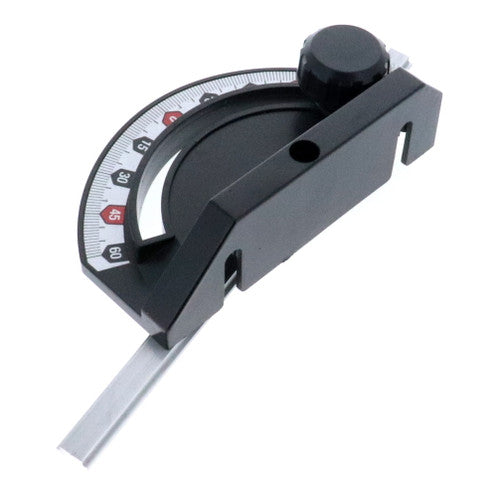

Dewalt 5140196-37 Miter Gauge Assembly

Product Description

The DEWALT 5140196-37 is a replacement miter gauge assembly designed for use with DEWALT power tools. A miter gauge guides workpieces across a table saw or similar stationary tool at precise angles, allowing accurate crosscuts and miter cuts. This assembly serves as a direct OEM-style replacement part and is installed by woodworkers, cabinet shop technicians, and professional tradespeople who maintain or restore DEWALT stationary power tool equipment.

This miter gauge assembly is intended for use with compatible DEWALT stationary power tools that accept this gauge configuration. It is well-suited to both professional shop environments and job-site applications where precise angle cutting is required. Consult the specific tool model's parts diagram to confirm fitment before installation.

Key Features

• OEM replacement miter gauge assembly for DEWALT power tools
• Guides workpieces at controlled angles for accurate crosscuts and miter cuts
• Direct replacement designed to restore original tool function
• Fits stationary tool applications in professional shop and job-site settings

Compatibility

Designed as an OEM-style replacement miter gauge assembly for compatible DEWALT stationary power tools. Verify fitment against the specific tool model and parts diagram prior to ordering.

Installation Notes

Installation should be performed by a qualified technician familiar with stationary power tool maintenance. Disconnect and lock out the tool from its power source before removing or installing any components. Refer to the tool manufacturer's service documentation for proper assembly procedure and hardware specifications. Follow all applicable workshop safety standards during service.

Technical Specifications

• Part Type: Miter Gauge Assembly

Standard Information

• Brand: DEWALT
• Manufacturer Part Number: 5140196-37
