Dewalt 5140135-01 Field Assembly

Product Description

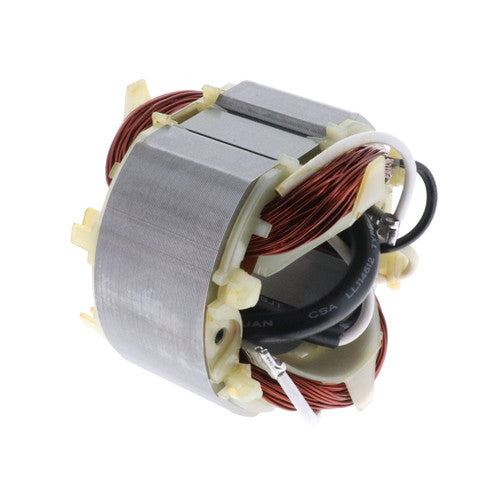

The DEWALT 5140135-01 is a field assembly replacement part designed for use in DEWALT power tools. A field assembly is the stationary electromagnetic winding inside an electric motor that generates the magnetic field required to drive the armature. When a field assembly fails, the motor loses torque or stops running entirely. This part is installed by qualified service technicians during motor repair or rebuild procedures and is intended to restore the tool to factory operating performance.

Field assemblies are typically replaced as part of a motor overhaul when the winding insulation breaks down due to heat, overload, or extended service life. This component is suited for professional repair shops and authorized service centers that perform in-depth power tool motor repairs on DEWALT equipment.

Key Features

• OEM replacement field assembly for DEWALT power tools
• Restores motor magnetic field output to factory specification
• Designed for direct-fit installation in compatible DEWALT tool models
• Built to withstand the thermal and mechanical demands of professional-grade tool operation

Compatibility

Designed as an OEM replacement field assembly for compatible DEWALT power tools. Refer to your tool model documentation or DEWALT service resources to confirm fitment before ordering.

Installation Notes

Field assembly replacement should be performed by a qualified power tool service technician. Disconnect and unplug the tool completely before disassembling the motor housing. Proper handling of motor windings is required to avoid damaging insulation during removal and installation. Follow all applicable local electrical safety guidelines when performing motor-level repairs.

Technical Specifications

• Part Type: Field Assembly

Standard Information

• Brand: DEWALT
• Manufacturer Part Number: 5140135-01
