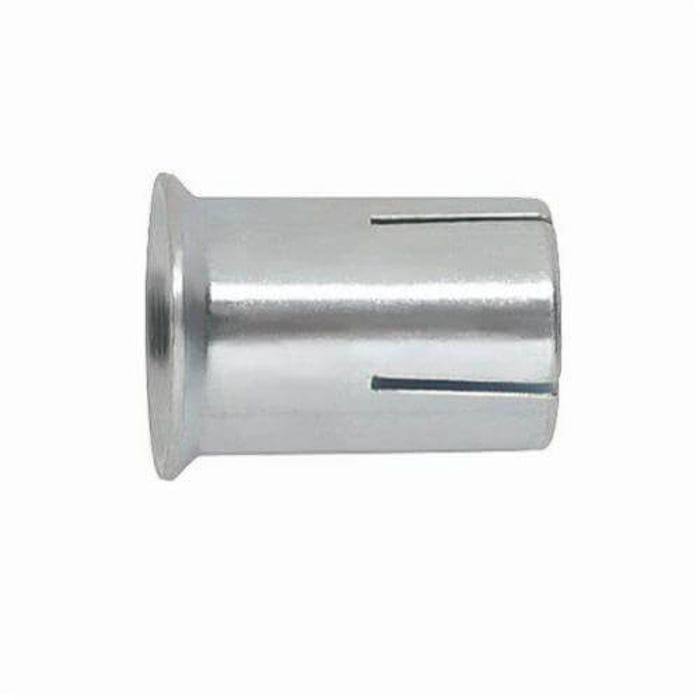

DEWALT 06335-PWR Dropin Lipped Mini Threaded Drop-In Anchor

Product Description

The DEWALT 06335-PWR Dropin is a carbon steel expansion anchor designed for shallow embedment applications. This anchor features an internally threaded design that allows for easy bolt removal and is specifically crafted for flush installation with its lipped design. It is suitable for use in solid concrete, precast hollow core plank, post-tensioned concrete slabs, and concrete pours over steel decks. The anchor accepts a quarter-inch bolt or rod and has a quarter-twenty thread size with a UNC thread type.

• Internally threaded for removable bolts.
• Flush installation with a consistent embedment.
• Ideal for precast hollow core plank and post-tensioned slabs.

Product Highlights

This anchor combines versatility and functionality for various construction applications.

Product Information

Standard Information

• Brand: DEWALT
• Manufacturer: Stanley Black & Decker

Technical Specifications

• Manufacturer Part Number: 06335-PWR
• Material: Carbon Steel
• Anchor Type: Lipped Mini Threaded
• Bolt Size: 1/4 inch
• Thread Size: 1/4 inch - 20
• Thread Type: UNC
• Anchor Diameter Outside: 3/8 inch
• Overall Length: 0.625 inches
• Anchor Length Overall: 5/8 inch
• Minimum Embedment Depth: 5/8 inch
• Standard Approvals: ASTM 488
• UL Listed: Yes
• UPC: 075352063355
• Package Quantity: 1/Each
