Dewalt 06322-PWR steel dropin carbon mini 3/8in

Product Description

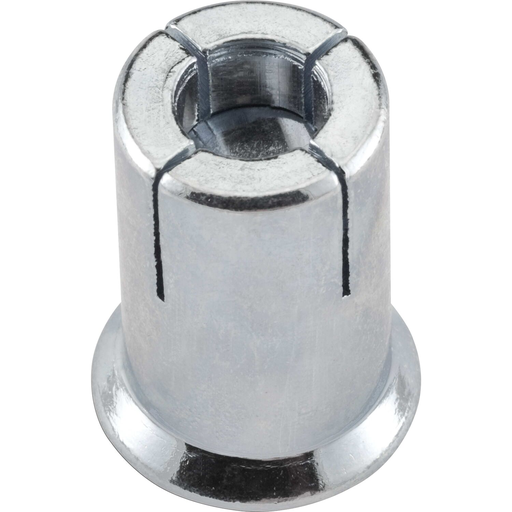

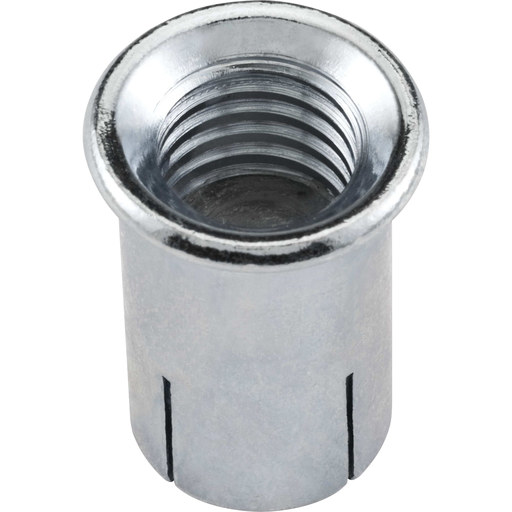

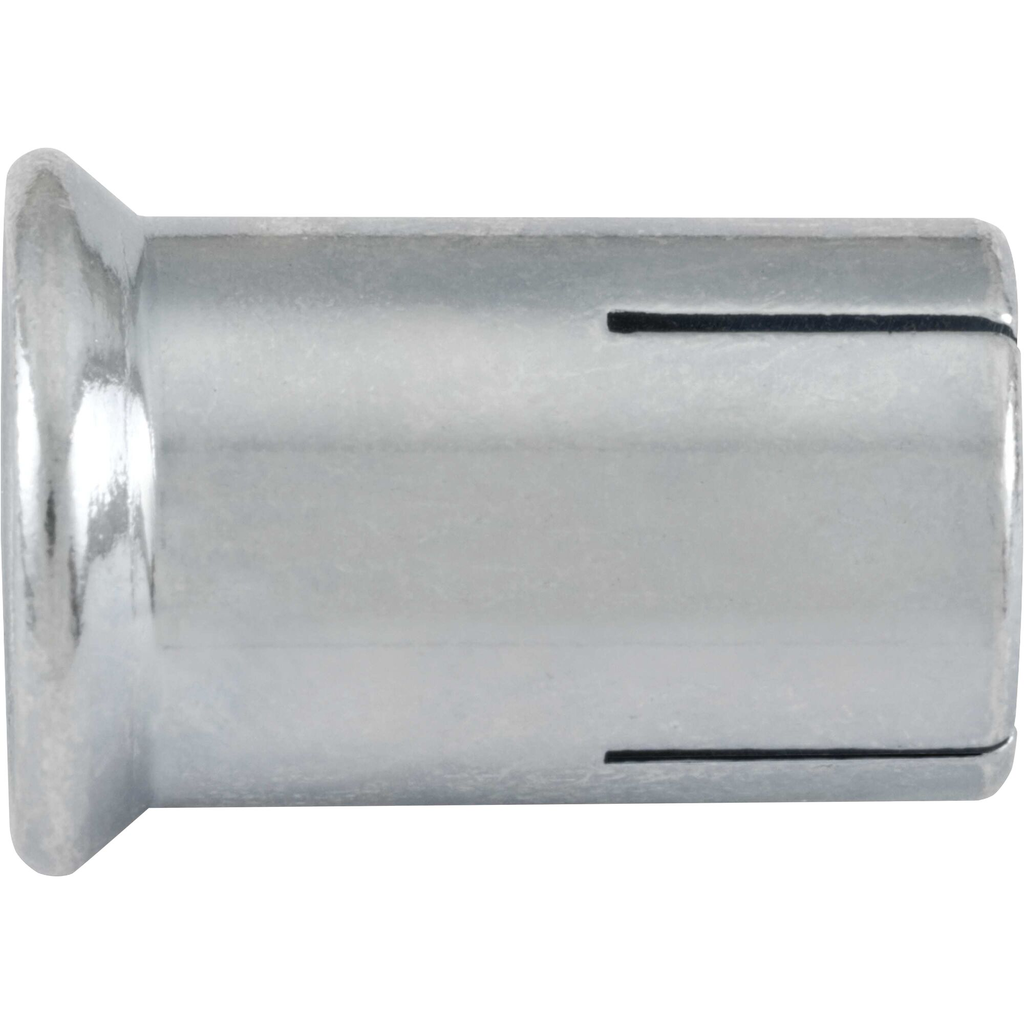

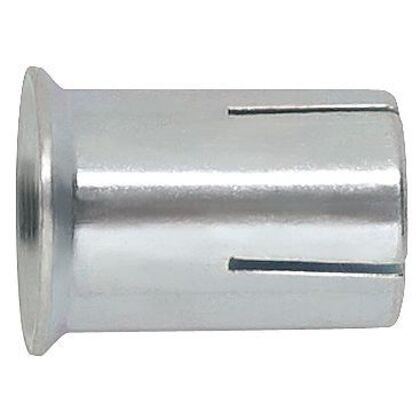

The DEWALT 06322-PWR Mini Dropin is a carbon steel machine bolt anchor designed for shallow embedment applications. It can be used in solid concrete, precast hollow core plank, post-tensioned concrete slabs, and concrete pours over steel deck. It is internally threaded for easy bolt removability and service work.

• Internally threaded anchor for easy bolt removability and service work
• Ideal for precast hollow core plank and post-tensioned concrete slabs
• Lip provides flush installation and consistent embedment

Product Highlights

The Mini Dropin anchor is suitable for suspending conduit, fire sprinklers, cable trays and struts, utilities, and pipe supports.

Product Information

Standard Information

• Brand: DEWALT
• Manufacturer Part Number: 06322-PWR
• Country of Origin: China

Technical Specifications

• Bolt / Hole Diameter: 3/8
• Category: ANCHOR BOLTS AND STUDS
• Product Type: Drop In Anchors
• Screw / Fixing Size: NONE
• Thickness: NONE
• UNSPSC Code: 31160000
• Brand: DeWalt
• Product UPC: 07535206322
• Country of Origin: China
• Catalog Number: 06322-PWR
• Rod Diameter: 3/8"
• Anchor Diameter Outside: 1/2"
• Anchor Length Overall: 3/4"
• Pack Qty: 100
• Material: Steel
• Finish: Zinc Plated
• Measurement Type: Inch
• Thread: Coarse
• Package Quantity: 100
• Diameter: 3/8"
• Length: 3/4"
• Drill Size: 1/2"
• Minimum Embedment Depth: 3/4 in
• Overall Length: 3/4 in
• Series: Dropin
• Shear Strength: 2700 lb at 3000 psi/4220 lb at 4000 psi/6000 psi for Concrete
• Tensile Strength: 1980 lb at 3000 psi, 2120 lb at 4000 psi, 2270 lb at 6000 psi for Normal Weight Concrete
• Thread Size: 3/8-16
• Thread Type: UNC
• Type: Lipped Mini Threaded
• Size: 3/8 in
