Product Description

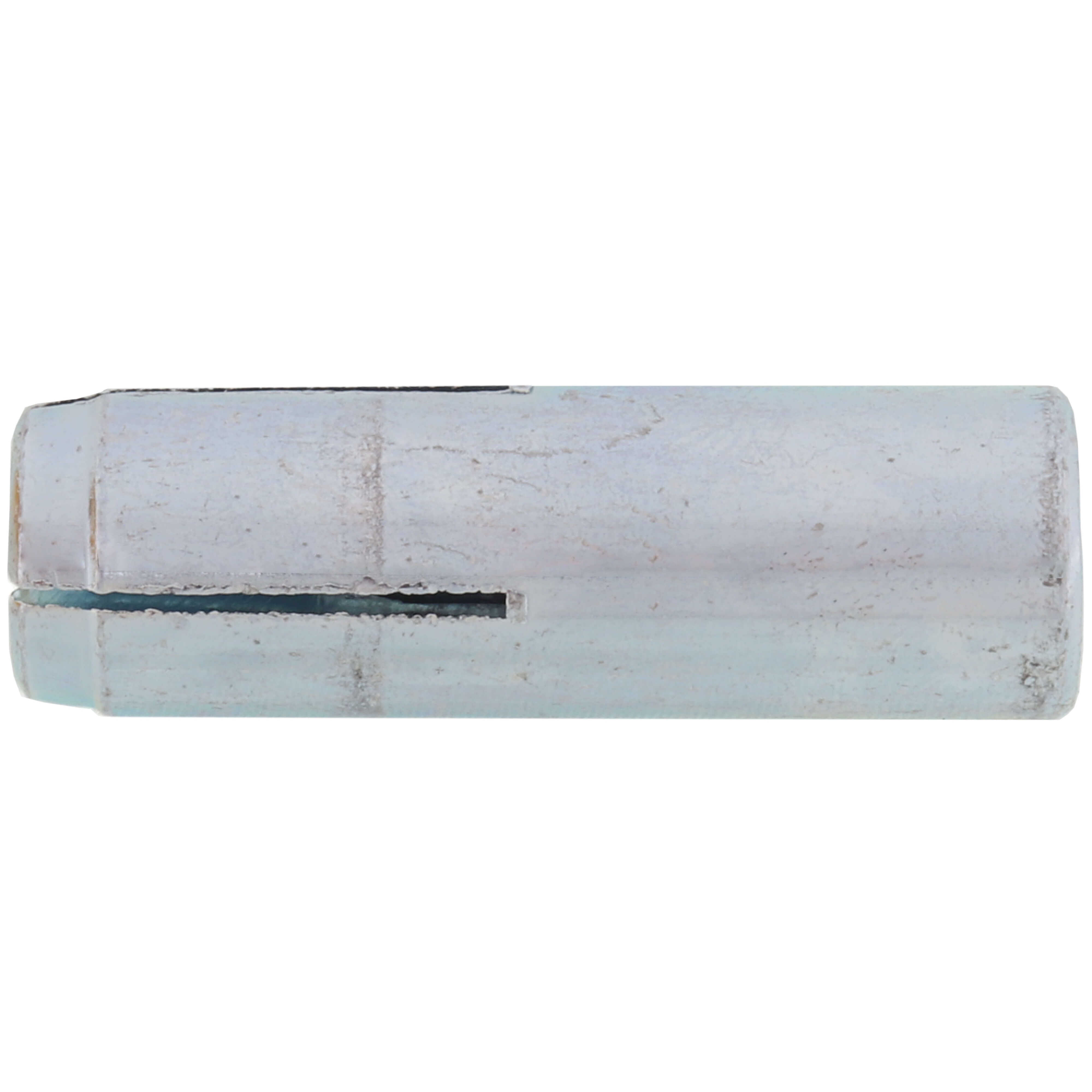

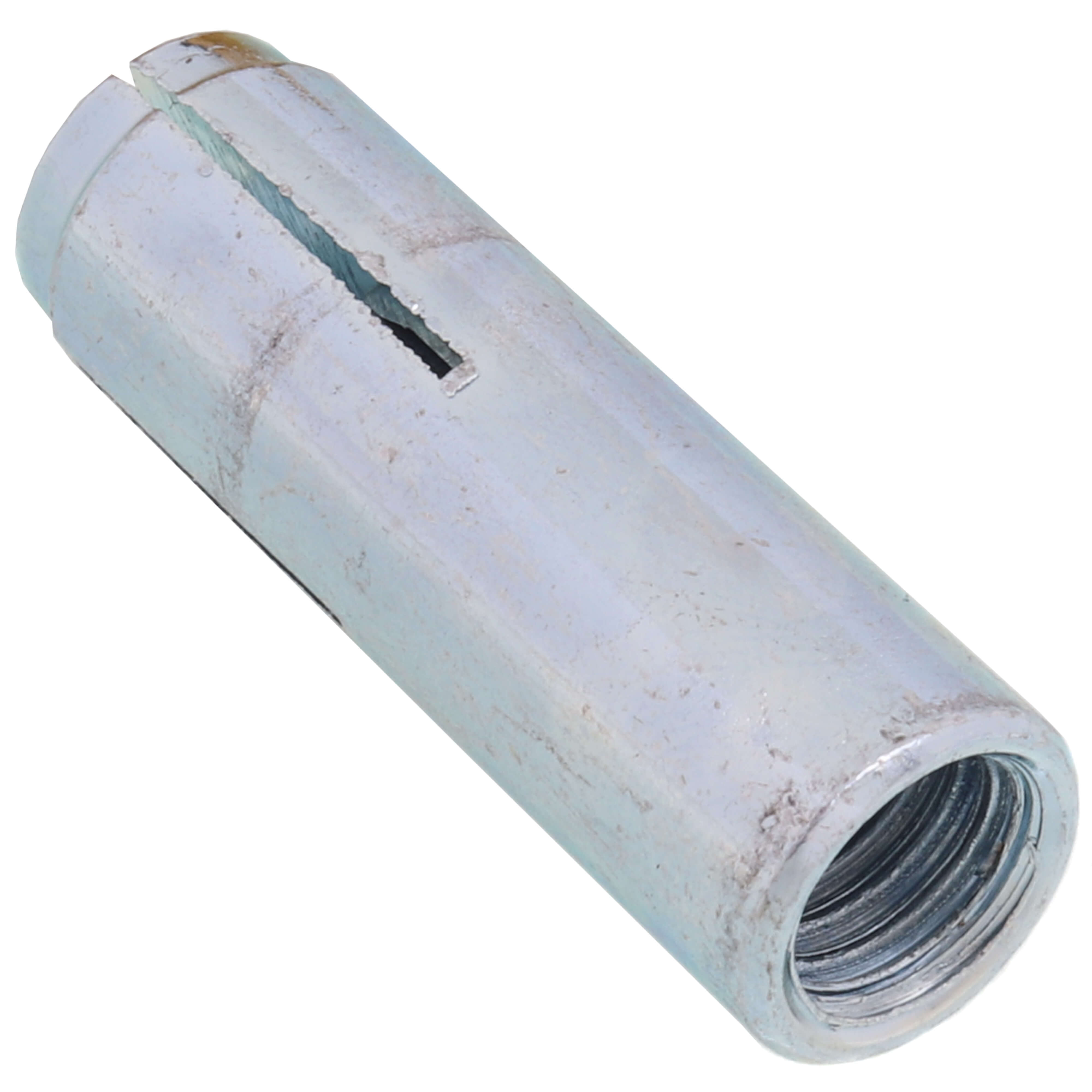

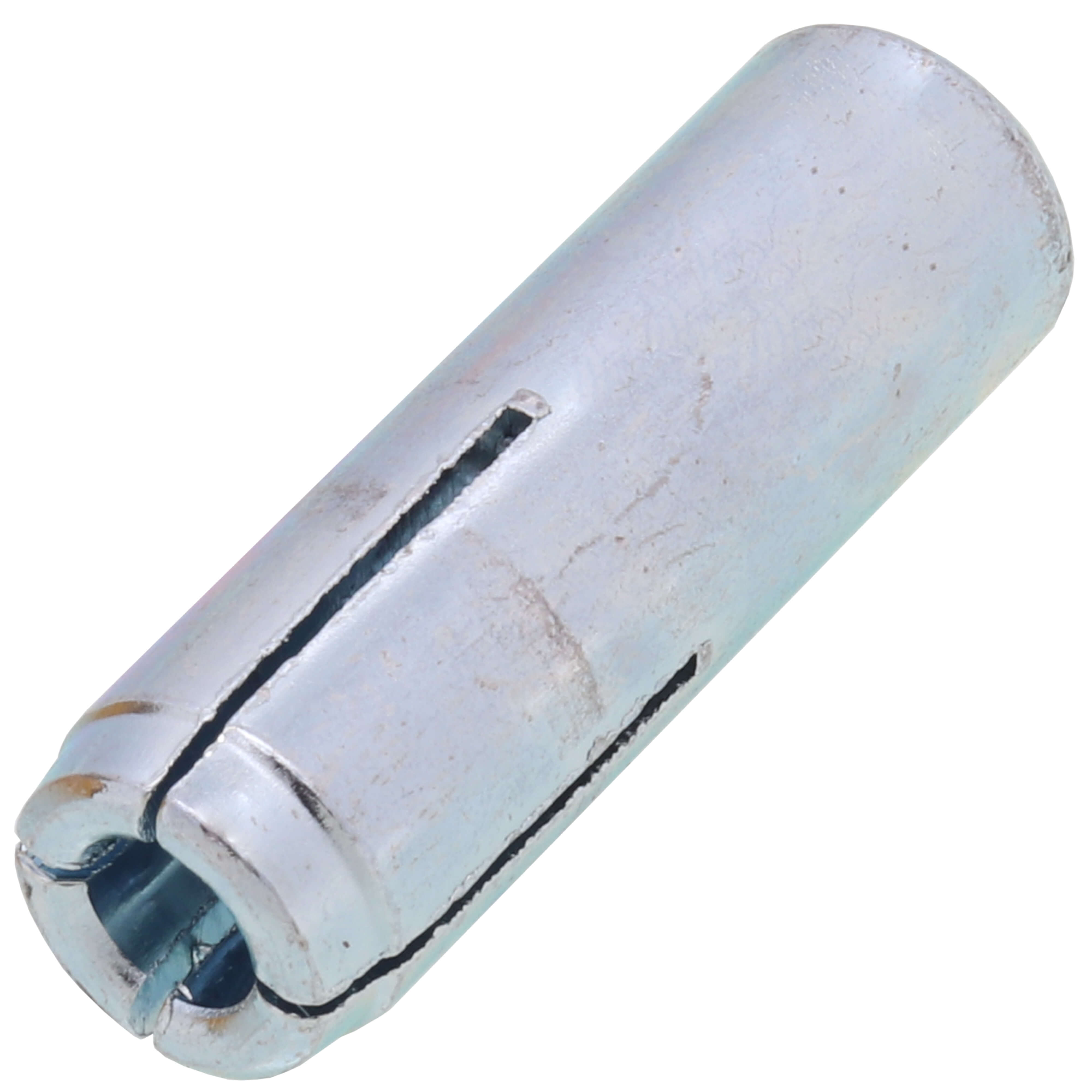

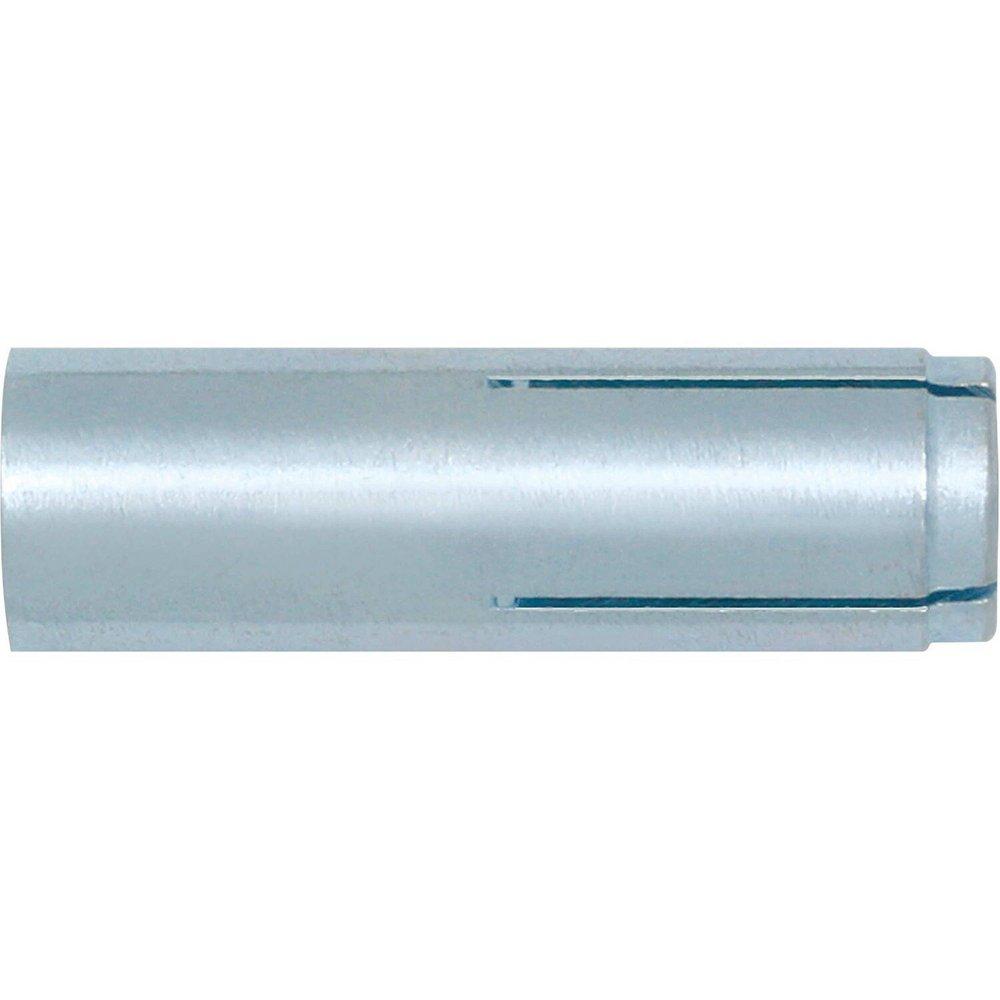

The DEWALT 06306-PWR Steel Dropin is an all-steel, machine bolt anchor available in carbon steel. It is suitable for solid concrete, hard stone, and solid block base materials. The smooth wall drop-in design allows for flush mounted or below base material surface installation. It features an internally threaded anchor for easy bolt removability and service work.
- Smooth wall drop-in can be installed flush mounted or below the base material surface
- Flanged (lipped) version installs flush for easy inspection and standard embedment
- Internally threaded anchor for easy bolt removability and service work
Product Highlights
All-steel construction, machine bolt anchor for use in concrete, stone, and block. Features internally threaded design for easy bolt removal.
Product Information
Standard Information
-
Brand: DEWALT
-
Manufacturer Part Number: 06306-PWR
-
Country of Origin: Unknown
Technical Specifications
-
Brand: DEWALT
-
Mfr No: 06306-PWR
-
Part No: D06306PWR
-
Size: 3/8" x 1-9/16"
-
Finish: Zinc Plated
-
Material: Steel
-
Length (Inches): 1-9/16"
-
Item [Specifications]: Drop-In Anchor
-
Bolt Dia. [Specifications]: 3/8 in
-
Anchor Dia. [Specifications]: 3/8 in
-
Thread Depth [Specifications]: 5/8 in
-
Anchor Length [Specifications]: 1 9/16 in
-
Meets/Exceeds [Specifications]: UL/FM
-
Drill Bit Size [Specifications]: 1/2 in
-
Material Grade [Specifications]: 1008
-
Anchor Material [Specifications]: Carbon Steel
-
Fastener Finish [Specifications]: Zinc Plated
-
Min. Hole Depth [Specifications]: 1 9/16 in
-
Agency Compliance [Specifications]: ASTM 488, AC01 Tested, Underwriters Laboratory (UL Listed), File # EX1289(N), FM Approvals (Factory Mutual) File # 3059197
-
Anchor Thread Size [Specifications]: 3/8"-16
-
Drop-In Anchor Type [Specifications]: Non-Flange
-
Allowable Shear (Lbs.) [Specifications]: 1,145 lb
-
Ultimate Tension (Lbs.) [Specifications]: 4,950 lb
-
Allowable Tension (Lbs.) [Specifications]: 1240 lb
-
Ultimate Tension in 4000 PSI Concrete (Lb.) [Specifications]: 4,180 lb
-
Catalog Number: 06306-PWR
-
Anchor Size: 3/8"
-
Anchor Length Overall: 1-9/16"
-
Drill Diameter: 1/2"
-
Internal Thread Depth: 5/8"
-
Minimum Embedment Depth: 1-9/16"
-

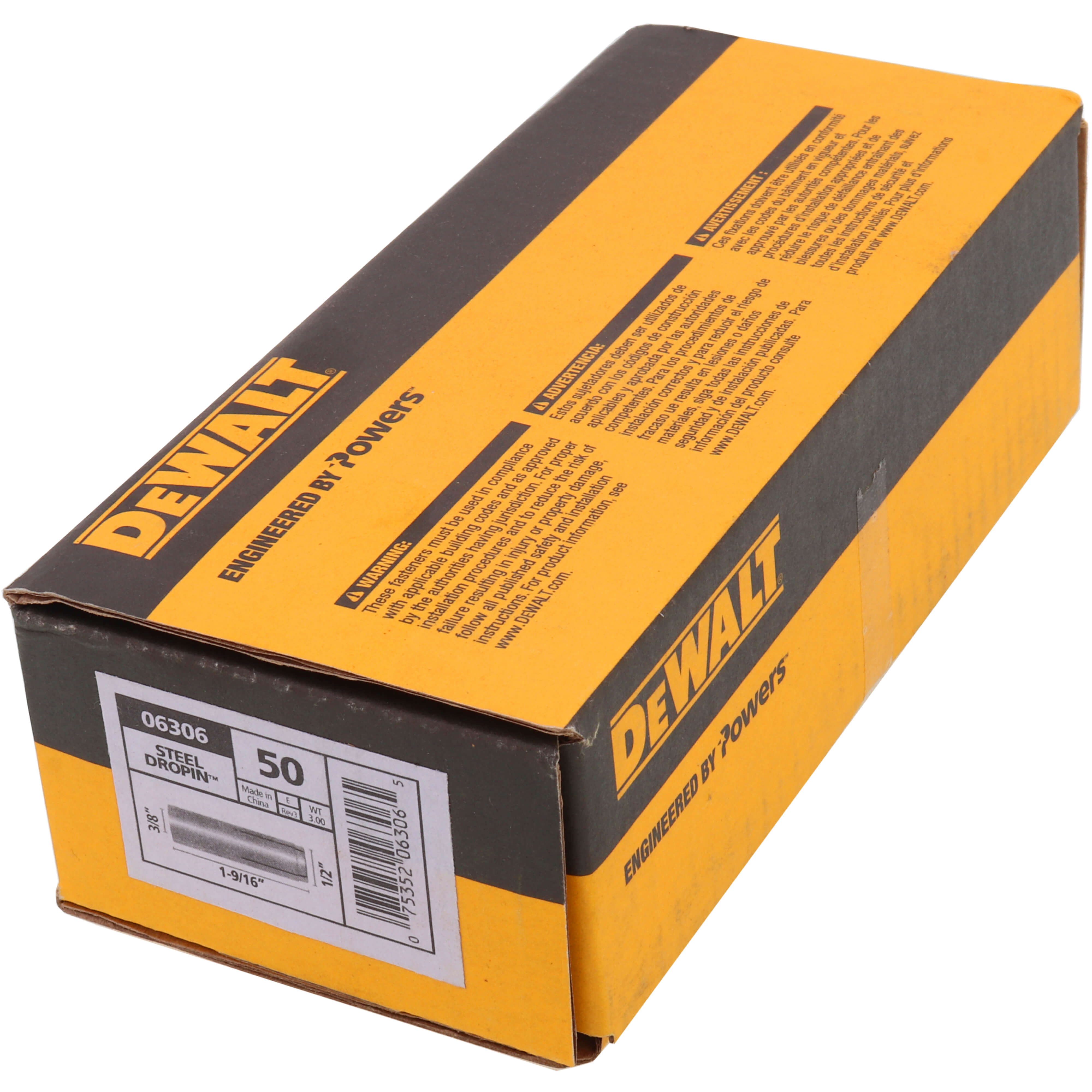

Pack Qty: 50
-
Approvals: UL
-
Product Type: Drop In Anchors
-
FM or UL: UL
-
Measurement Type: Inch
-
Thread: Coarse
-
Package Quantity: 50
-
Diameter: 3/8"
-
Length: 1-9/16"
