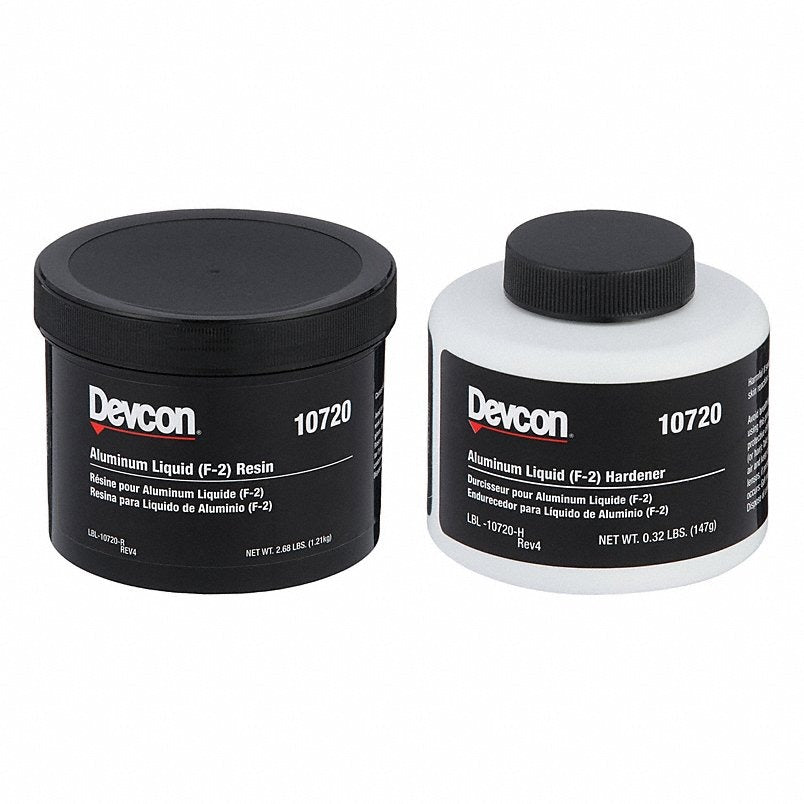

Devcon 10720 Aluminum Liquid F-2 Epoxy Adhesive 3 Lb

Product Description

The DEVCON 10720 is a two-part, aluminum-filled epoxy adhesive in the Aluminum Liquid F-2 series, packaged in a 3 lb can. It is formulated for metal bonding and repair applications where welding is not practical or possible. The product cures to a gray color with a Shore D hardness of 85 and achieves full cure in 16 hours. With a shear strength of 9,820 psi and tensile strength up to 2,450 psi, it delivers structural-grade performance. The self-leveling, thick liquid consistency allows it to be poured into castings or repairs, and the cured material is fully machinable. Industrial maintenance technicians and metal fabricators are the primary installers.

This adhesive is suited for general-purpose metal bonding and repair in industrial and automotive environments. Typical applications include bonding metal panels to frames, repairing cracked engine housings, sealing fuel tanks, and restoring metal enclosures. The formulation is rated for interior and exterior use and carries a marine-grade water-resistant designation, making it appropriate for high-humidity or wet-environment installations. Application temperature range is 55 degrees F to 90 degrees F, and the cured assembly can withstand service temperatures up to 250 degrees F.

Key Features

• Two-part reactive epoxy system with a 5:1 mixing ratio; resin and hardener included
• 9,820 psi shear strength and 2,450 psi tensile strength for structural metal repair
• Self-leveling, low-viscosity thick liquid (15,000 to 25,000 cps) suitable for pouring and casting
• Machinable and low-shrinkage after full cure at 85 Shore D hardness
• Marine-grade, water-resistant formulation rated for interior and exterior use
• Complies with multiple ASTM standards including D1002, D638, D695, and D2240

Compatibility

Designed for bonding and repairing metal substrates; suitable for use in industrial maintenance, automotive, and marine applications where a weld-alternative structural adhesive is required.

Installation Notes

Surface preparation is critical — clean and abrade metal substrates before application to ensure maximum bond strength. Observe the 75-minute working time and allow a full 16-hour cure before loading the assembly. Apply only when ambient and substrate temperatures are between 55 degrees F and 90 degrees F. Follow applicable facility safety protocols for handling two-part epoxy systems, including adequate ventilation.

Technical Specifications

• Series: Aluminum Liquid F-2
• Shear Strength: 9,820 psi
• Tensile Strength: 2,450 psi
• Hardness at Full Cure: 85 Shore D
• Working Time: 75 minutes
• Full Cure Time: 16 hours
• Mixing Ratio: 5:1
• Viscosity Range: 15,000 to 25,000 cps
• Maximum Service Temperature: 250 degrees F
• Application Temperature Range: 55 degrees F to 90 degrees F
• Cure Method: Two-Part Reactive
• Cured Color: Gray
• Container Type: Can
• Total Volume: 3 lb
• Coverage: 70 sq in per lb
• Materials Bonded: Metal
• Water Resistance: Water-Resistant
• Interior/Exterior: Interior and Exterior
• Marine Grade: Yes
• Standards: ASTM C177, ASTM D1002, ASTM D149, ASTM D150, ASTM D2240, ASTM D2566, ASTM D638, ASTM D695, ASTM D696, ASTM D790
• Country of Origin: USA

Standard Information

• Brand: DEVCON
• Manufacturer Part Number: 10720
