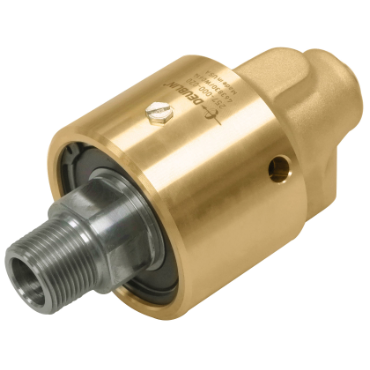

Deublin Co. 557-000-395 Water Rotary Unit Mono-Flow 1 1/2 in

Product Description

The Deublin Co. 557-000-395 Water Rotary Unit is a Mono-Flow rotary union designed for water applications. It offers a reliable connection for rotating machinery, making it suitable for various industrial applications.

• State-of-the-art sealing technology
• Replaceable silicone carbide mechanical seals
• Available in both U.S. and metric thread specifications

Product Highlights

This rotary unit is primarily used in industries such as printing, paper, rubber, and plastics, providing efficient water transfer with maximum durability.

Product Information

Standard Information

• Brand: Deublin Co.
• Part Number: 100169115

Technical Specifications

• Series: 57 Series
• Weight: 12.7 LB
• Flow Type: Mono-Flow
• Max RPM: 2,500 rpm
• Unit Size: 1 1/2 in
• Inlet Port: 1 1/2 in
• Housing Material: Forged Brass
• Shaft Material: Stainless Steel
• Inlet Port Type: NPT
• Outlet Port Type: UN
• Assembled Length: 8 7/8 in
• Shaft Extension Length: 1 1/8 in
• Shaft Thread Size: 2-12 UN
• Right / Left Hand: Right Hand
• Front of Body to Port Centerline: 5 13/16 in
