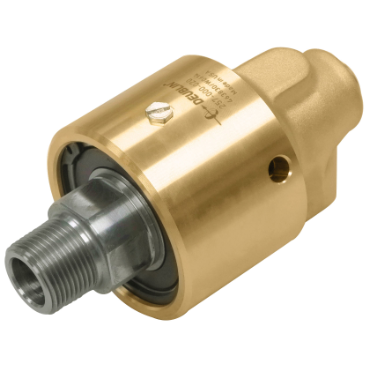

Deublin Co. 557-000-002 Water Rotary Unit

Product Description

The Deublin Co. 557-000-002 Water Rotary Unit is designed for water applications. This product features advanced sealing technology and is effective for various industries including printing and steel processing.

• Incorporates state-of-the-art sealing technology
• Silicone carbide to carbon graphite mechanical seals available
• Primarily used in printing, paper, rubber, plastics, and steel processing industries

Product Highlights

This rotary union is suitable for both mono-flow and duo-flow configurations and is built for durability with replaceable seals.

Product Information

Standard Information

• Brand: Deublin Co.
• MPN: 557-000-002

Technical Specifications

• Shaft Thread Size: 1 1/2 in NPT
• Housing Material: Forged Brass
• Shaft Material: Stainless Steel
• Inlet Port: 1 1/2 in
• Assembled Length: 8 1/2 in
• Flow Type: Mono-Flow
• Unit Size: 1 1/2 in
• RPM [Max]: 1,500 rpm
• Series: 57 Series
• Right / Left Hand: Left Hand
• Inlet Port Type: NPT
• Outlet Port Type: NPT
• Shaft Extension Length: 1 3/16 in
• Front of Body to Port Centerline: 6 in
• Weight: 12.55 LB
