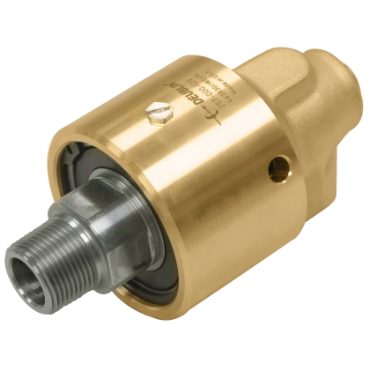

Deublin Co. 557-000-001 Water Rotary Unit

Product Description

The Deublin Co. 557-000-001 Water Rotary Unit is designed for reliable performance in various water applications. This rotary union features advanced sealing technology suitable for diverse environments. It is ideal for industries such as printing, paper, rubber, plastics, and steel processing.

• Utilizes silicone carbide to carbon graphite mechanical seals
• Available in Mono-Flow and Duo-Flow configurations
• Seals are replaceable and suitable for U.S. and metric thread specifications

Product Highlights

This rotary unit offers robust functionality with a maximum water pressure of 150 psi. The forged brass housing adds durability, while the stainless steel shaft material ensures longevity. Its compact size makes it easy to install in tight spaces.

Product Information

Standard Information

• Brand: Deublin Co.
• Part Number: 100169093

Technical Specifications

• Housing Material: Forged Brass
• Right / Left Hand: Right Hand
• RPM [Max]: 1,500 rpm
• Assembled Length: 8.5 inches
• Inlet Port: 1.5 inches
• Outlet Port Type: NPT
• Inlet Port Type: NPT
• Unit Size: 1.5 inches
• Shaft Thread Size: 1.5 inches NPT
• Shaft Extension Length: 1.1875 inches
• Flow Type: Mono-Flow
• Front of Body to Port Centerline: 6 inches
• Series: 57 Series
• Shaft Material: Stainless Steel
• Weight: 12.55 lb
