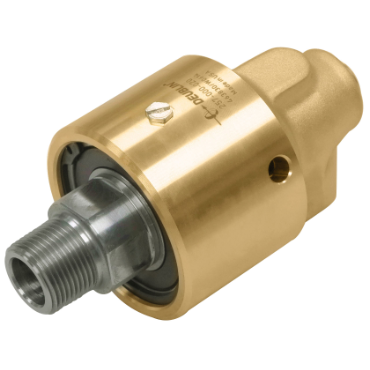

Deublin Co. 527-000-001 Water Rotary Unit Mono-Flow 1 1/4 in

Product Description

The Deublin Co. 527-000-001 is a water rotary unit designed for efficient fluid transfer in various applications. It features advanced sealing technology suitable for water applications, ensuring reliable operation in demanding environments.

• Incorporates state-of-the-art sealing technology for use in water.
• Available in Mono-Flow and Duo-Flow configurations.
• Replaceable seals, ideal for maintenance.

Product Highlights

This unit is primarily used in industries such as printing, paper, rubber, plastics, and steel processing, making it versatile for different applications.

Product Information

Standard Information

• Brand: Deublin Co.
• Part Number: 100168723

Technical Specifications

• Series: 57 Series
• Weight: 8.2 LB
• Flow Type: Mono-Flow
• RPM [Max]: 1,500 rpm
• Unit Size: 1 1/4 in
• Inlet Port: 1 1/4 in
• Housing Material: Forged Brass
• Shaft Material: Stainless Steel
• Shaft Thread Size: 1 1/4 in NPT
• Shaft Extension Length: 1 1/8 in
• Assembled Length: 7 9/16 in
• Front of Body to Port Centerline: 5 1/4 in
• Inlet Port Type: NPT
• Outlet Port Type: NPT
• Right / Left Hand: Right Hand
