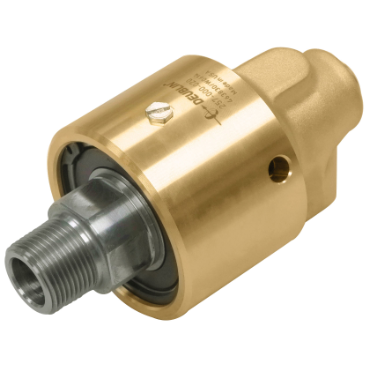

Deublin Co. 357-000-002083 Water Rotary Unit Duo-Flow 1 in

Product Description

The Deublin Co. Water Rotary Unit with MPN 357-000-002083 is designed for reliable performance in various water applications. This rotary union helps facilitate smooth fluid transfer while managing high pressure. Its robust construction makes it suitable for numerous industries.

• Incorporates advanced sealing technology
• Available in Mono-Flow and Duo-Flow configurations
• Constructed with forged brass housing for durability

Product Highlights

This unit is ideal for water handling with replaceable seals, flexible configurations, and compatibility with both U.S. and metric thread specifications.

Product Information

Standard Information

• Brand: Deublin Co.
• Part Number: 105798461

Technical Specifications

• Elbow Port: 3/4 in NPT
• Assembled Length: 8 5/16 in
• RPM [Max]: 1500 rpm
• Right / Left Hand: Right Hand
• Front of Body to Port Centerline: 4 11/16 in
• Flow Type: Duo-Flow
• Housing Material: Forged Brass
• Shaft Material: Stainless Steel
• Inlet Port to Elbow Port: 2 5/16 in
• Unit Size: 1 in
• Shaft Extension Length: 1 1/8 in
• Shaft Thread Size: 1 in NPT
• Inlet Port Type: NPT
• Dual Flow Port: 1/2 in NPT
• Outlet Port Type: NPT
• Series: 57 Series
• Inlet Port: 1 in
• Weight: 6.5 LB
