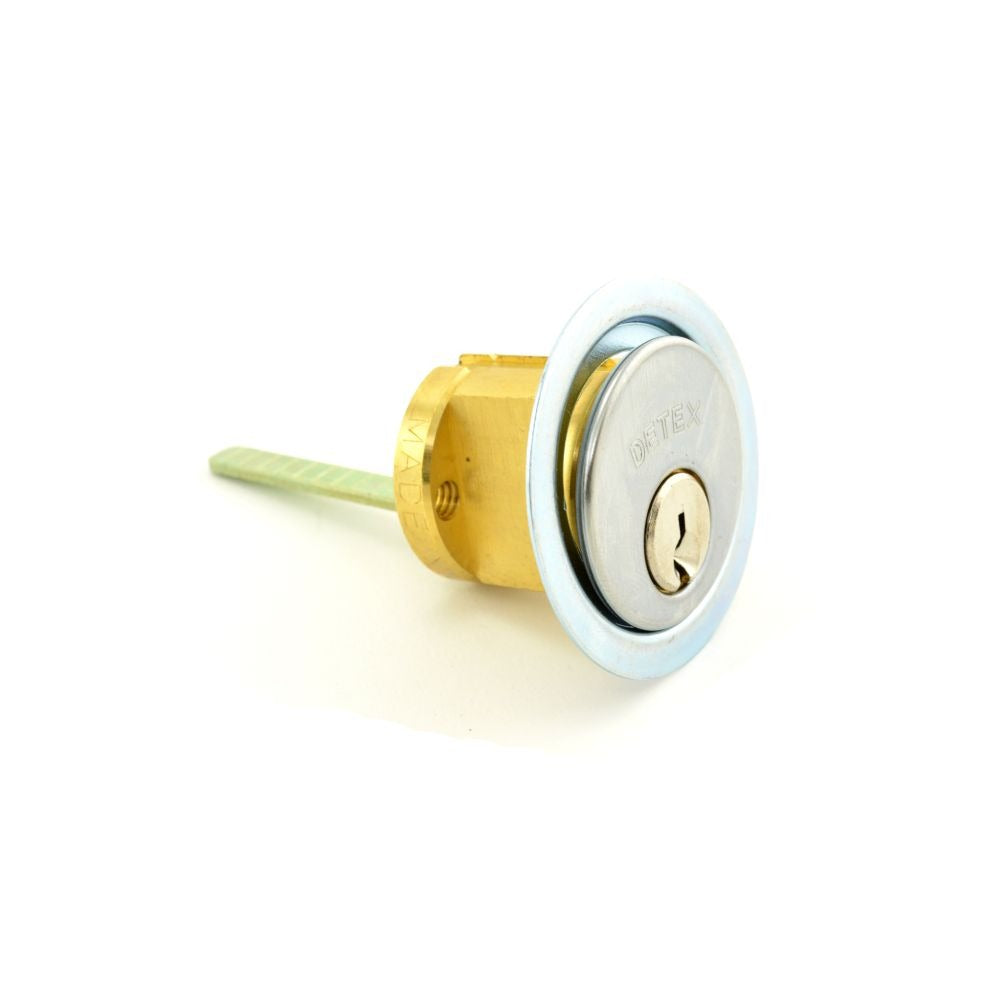

Detex RC65626 Rim Cylinder 6-pin Schlage C Keyway

Product Description

The DETEX RC65626 is a 6-pin rim cylinder finished in satin chrome, designed for use with panic exit hardware on commercial and institutional doors. It accepts the Schlage C keyway, one of the most widely adopted keyways in commercial keying systems, making it straightforward to integrate into existing master key programs. The cylinder measures 4.5 inches in length, 2.5 inches in width, and 2 inches in height, and weighs 0.4 pounds. It is installed by locksmiths and commercial door hardware technicians as part of a complete exit device assembly.

This rim cylinder is suited for commercial buildings, institutional facilities, schools, and other occupancies where panic exit hardware is required by code. It is used when a keyed outside trim function is needed on a rim-style exit device. The Schlage C keyway compatibility makes it well-suited for facilities already operating a Schlage-keyway master key system, allowing the cylinder to be pinned to the existing key hierarchy without requiring a separate key.

Key Features

• 6-pin tumbler construction for increased key-combination security over 5-pin cylinders
• Schlage C keyway for broad compatibility with commercial master key systems
• Satin chrome finish resists corrosion and blends with standard commercial hardware finishes
• Compact form factor: 4.5 inches x 2.5 inches x 2 inches
• Lightweight at 0.4 pounds, simplifying handling during installation
• Sold individually as a single unit

Compatibility

Designed as an OEM-style replacement or upgrade rim cylinder for rim-type panic exit devices requiring a Schlage C keyway cylinder. Confirm exit device make and model cylinder acceptance before ordering.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Disengage the exit device and ensure the door is secured in place before removing the existing cylinder. The cylinder must be properly pinned to the facility key system before installation. Verify that the replacement cylinder tail piece length and cam orientation match the exit device requirements before final assembly.
