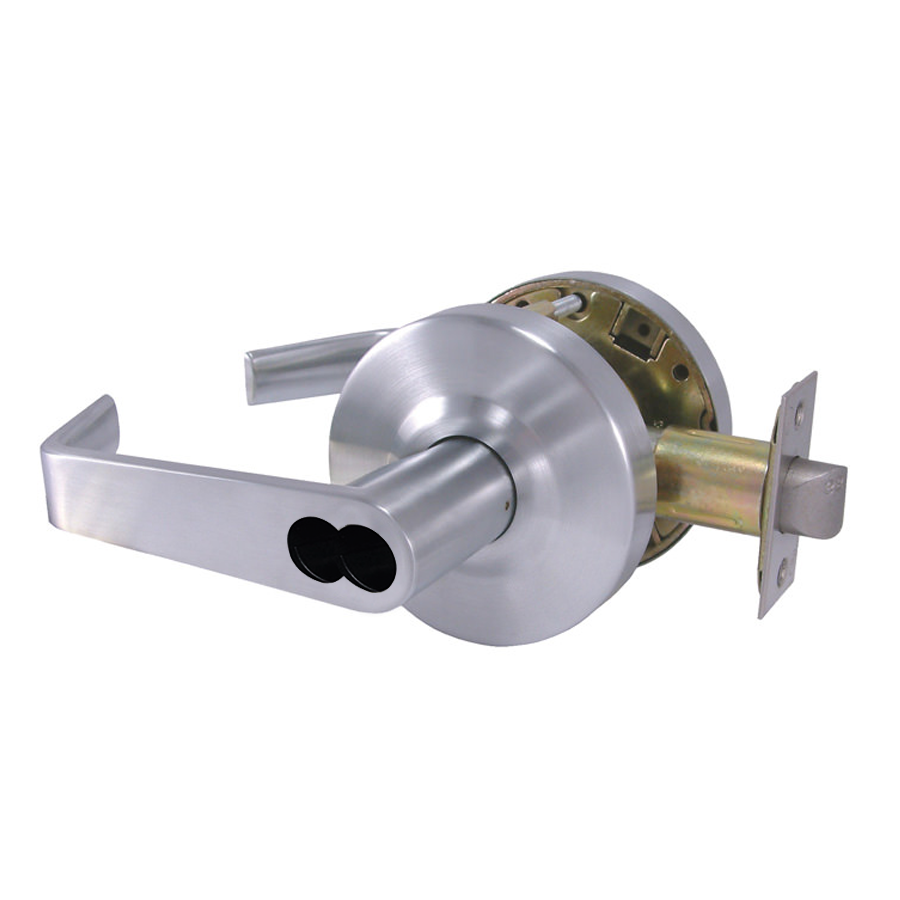

Design Hardware X-86IC-F-26D X Series heavy duty storeroom IC lock non-handed lever (1 3/4 inches door)

Product Description

Design Hardware X-86IC-F-26D is an X Series heavy duty storeroom IC cylindrical lock with a non-handed flat lever designed for medium to high traffic commercial areas. It has a steel chassis that is zinc dichromated for corrosion resistance, a stainless steel deadlocking latchbolt with 1/2" projection, and is factory set for 1 3/4" doors adjustable up to 2". The lock meets ANSI A156.2 grade 1, is UL A 3-hour listed, and complies with ADA.

• Durable steel chassis, zinc dichromated finish; clutching levers for vandal resistance and anti-sag lever return springs
• Stainless steel deadlocking latchbolt (1/2" projection); standard 2 3/4" backset with self-adjusting front for square or beveled doors
• Meets ANSI A156.2 series 4000 grade 1, UL listed A 3-hour fire doors, ADA and ANSI A117.1 compliant; prepared for small format IC core

Product Highlights

Grade 1 storeroom IC cylindrical lock, non-handed lever, UL A 3-hour fire rated, prepared for SFIC

Product Information

Standard Information

• Brand: DESIGN HARDWARE
• Manufacturer Part Number: X-86IC-F-26D

Technical Specifications

• Brand: Design Hardware
• Manufacturer Part Number: X-86IC-F-26D
• Series: X Series
• Function: Storeroom (ANSI F86)
• Chassis Material: Steel, zinc dichromated for corrosion resistance
• Finish: US26D/626 Satin/Brushed Chrome
• Trim: 5" solid zinc diecast levers; 3 3/8" wrought brass roses
• Lever Design: Flat non-handed lever (other designs available: curved, half curved, S-A, S-B)
• Handing: Non-handed (reversible)
• Latchbolt: Stainless steel deadlocking latchbolt, 1/2" projection
• Backset: 2 3/4" standard (2 3/8" available)
• Latch Face Dimensions: Standard 1 1/8" x 2 1/4" (2 3/4" backset); 1" x 2 1/4" (2 3/8" backset)
• Door Thickness: Factory set for 1 3/4"; adjustable to fit 1 3/8" to 2"
• Door Preparation: ANSI A115.2 - 2 1/8" crossbore with two 3/8" thru bolt holes
• Cylinder Options: 6-pin brass C keyway with 2 keys standard; prepared for small format IC core (less core)
• Strikes: 4 7/8" x 1 1/4" ASA standard; T-strike and full lip strikes available
• Clutching: Clutching levers standard for vandal resistance
• Lever Return Mechanism: Anti-sag mechanism with independent lever return springs
• Standards and Certifications: Meets ANSI A156.2 series 4000 grade 1; UL listed for A label 3-hour fire doors; ADA and ANSI A117.1 compliant
• Fasteners: Combination screws for wood or metal doors and frames
